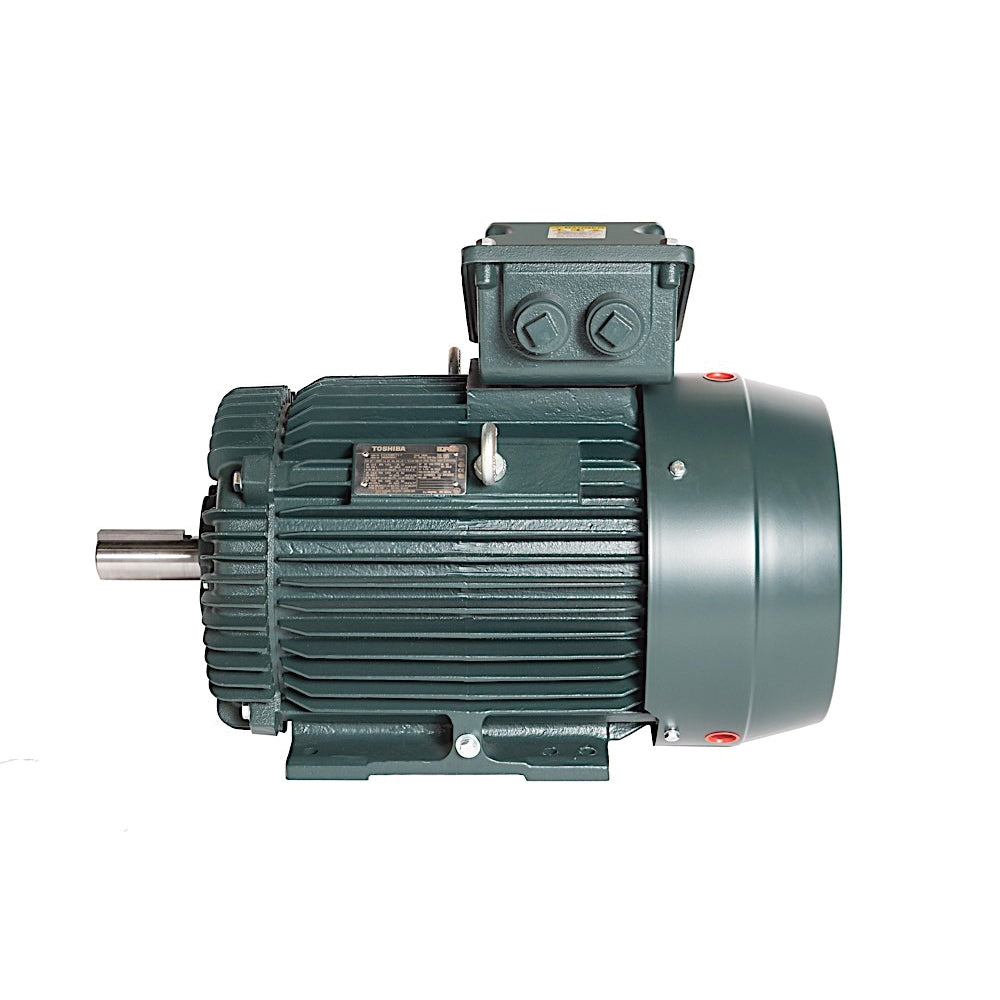

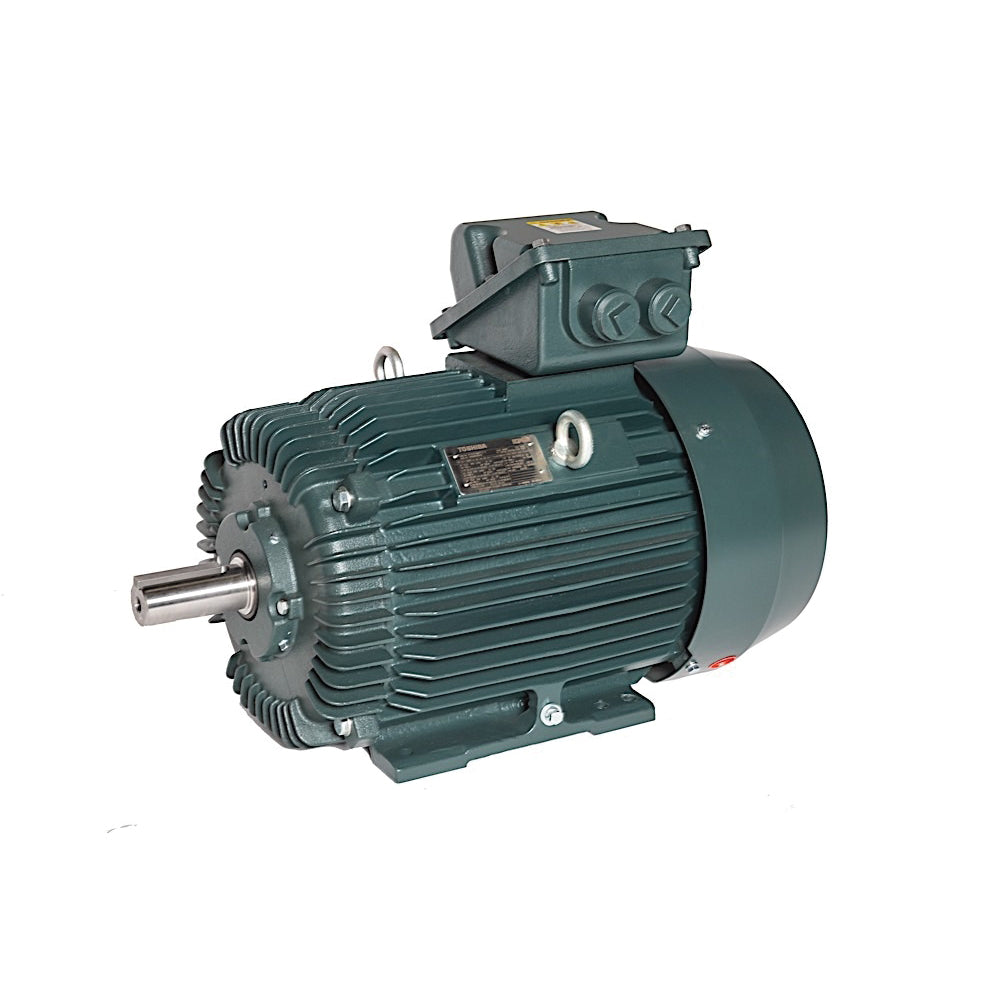

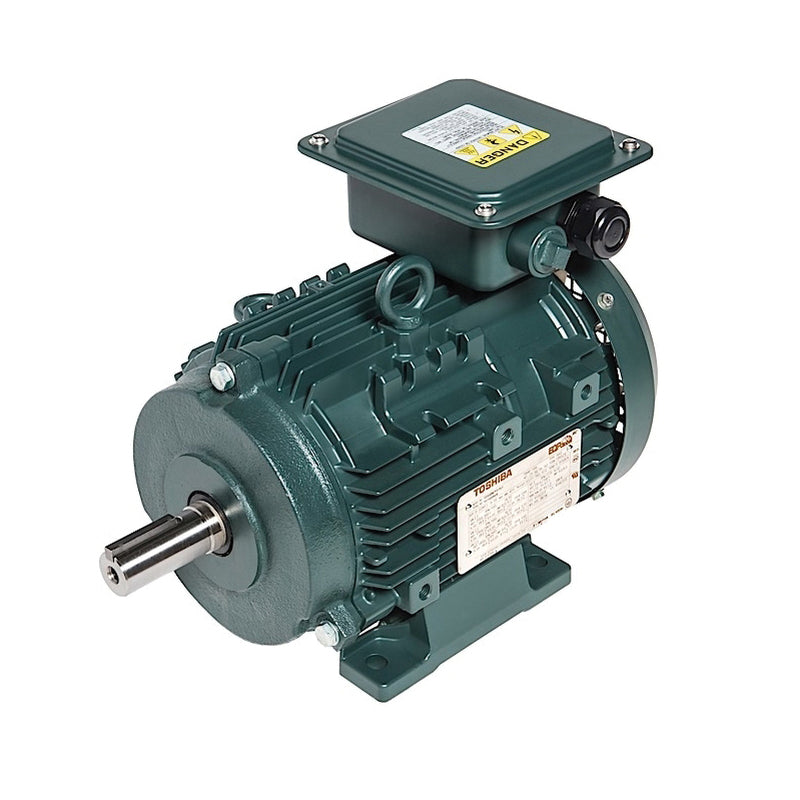

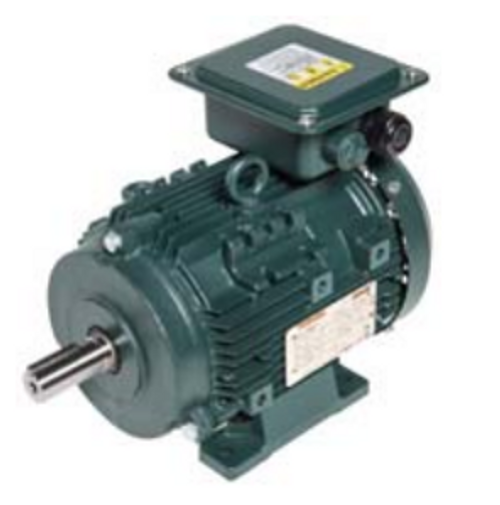

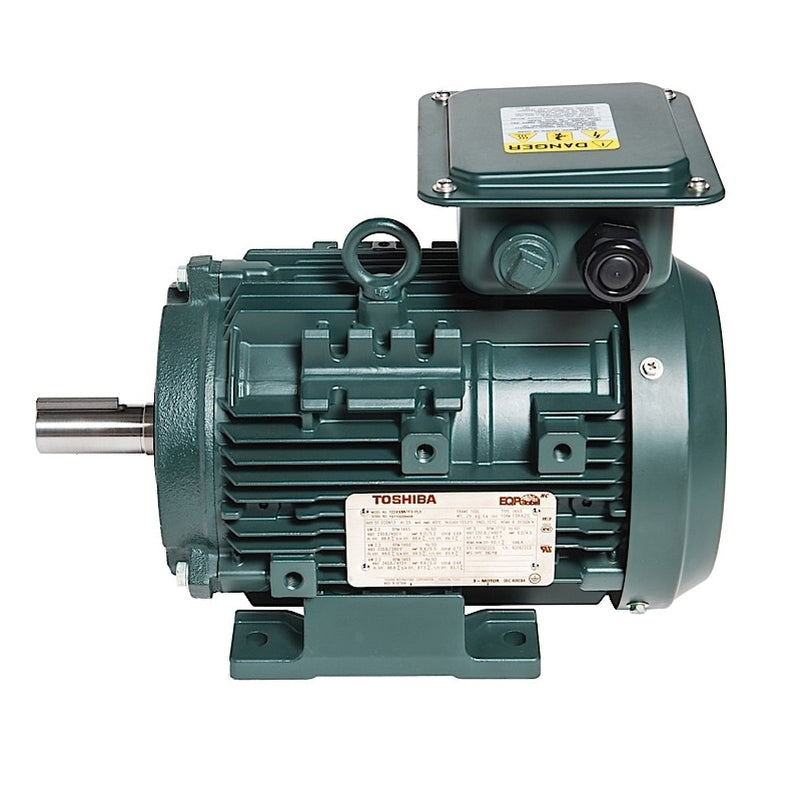

TOSHIBA 0044SDMV7FS-PL Electric Motor Power 5 HP

Product Description

The TOSHIBA 0044SDMV7FS-PL is a three-phase electric motor made for severe-duty tasks. This motor has a totally enclosed and fan-cooled (TEFC) design. It complies with IEC 60034 standards. The motor operates on dual voltage, suitable for both fifty Hz and sixty Hz applications. This unit is ideal for a variety of machines, including pumps, fans, conveyors, compressors, centrifuges, and mixers.

• Three-phase operation
• Totally Enclosed Fan Cooled (TEFC)
• Durable construction for high-load demands

Product Highlights

With an efficient design and solid performance, this electric motor is robust for demanding environments.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0044SDMV7FS-PL

Technical Specifications

• Motor Enclosure Type: TEFC
• Motor Voltage Phases: 3 Phase
• Motor Frequency: 60 Hz
• Motor Voltage: 230/400 V
• Motor RPM: 1800 RPM
• Motor Amperage (Full Load): 8.6 Amp
• Motor Horsepower: 5 HP
• Frame Type: 112M
• Hertz: 50 Hz
• Efficiency: 88.6 %
• Weight: 42 kg
• Rotation Type: CCW/CW
• Shaft Size: 28 mm Diameter x 60 mm Length
• Service Factor: 1.15
