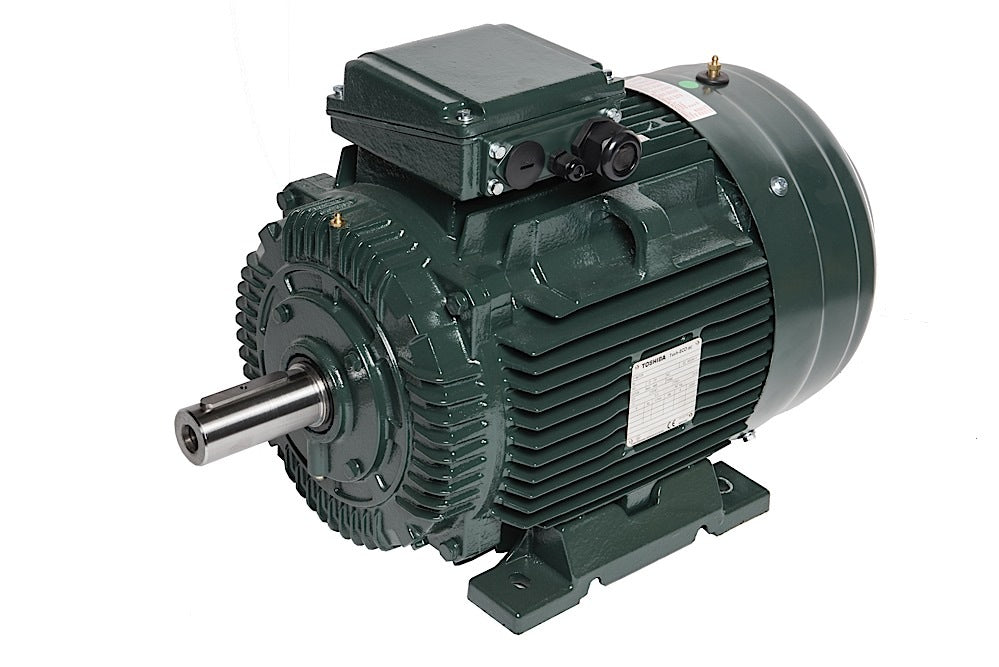

TOSHIBA 0042SDMV7GS-PL Electric Motor

Product Description

The TOSHIBA 0042SDMV7GS-PL is an electric motor built for diverse applications. This three-phase AC motor follows IEC 60034 standards and features a 112M frame. The motor is designed with a Totally Enclosed Fan Cooled (TEFC) enclosure. It operates on dual frequencies of fifty and sixty Hertz, meeting IE3 efficiency levels according to IEC 60034-30-1 and provides IP55 protection. It is suitable for pumps, fans, conveyors, compressors, centrifuges, and mixers.

• TEFC (Totally Enclosed Fan Cooled) design
• Operates at three thousand six hundred RPM
• Compatible with 230/400 Volt input

Product Highlights

This motor is designed to perform efficiently in various industrial settings while ensuring compliance with safety and operational standards.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0042SDMV7GS-PL

Technical Specifications

• Motor Type: AC Motor
• Horsepower: 5 HP
• Power: 4 KW
• Motor Voltage: 230/400 Volt
• Voltage Phases: 3 Phase
• Frequency: 50/60 Hz
• RPM: 3600 RPM
• Enclosure Type: Totally Enclosed Fan Cooled
• Frame Type: 112M
• Frame Material: Aluminum
• Full Load Amperage: 12.5/7.2 Amp
• Efficiency: IE3
• Pole: 2
• Duty: S1
• Ambient Temperature: 40C
• Service Factor: 1.1
• Ingress Protection: IP55
• Flange: B5
• Motor Standards: IEC
• NEMA: Premium Efficiency
• Space Heaters: Optional
