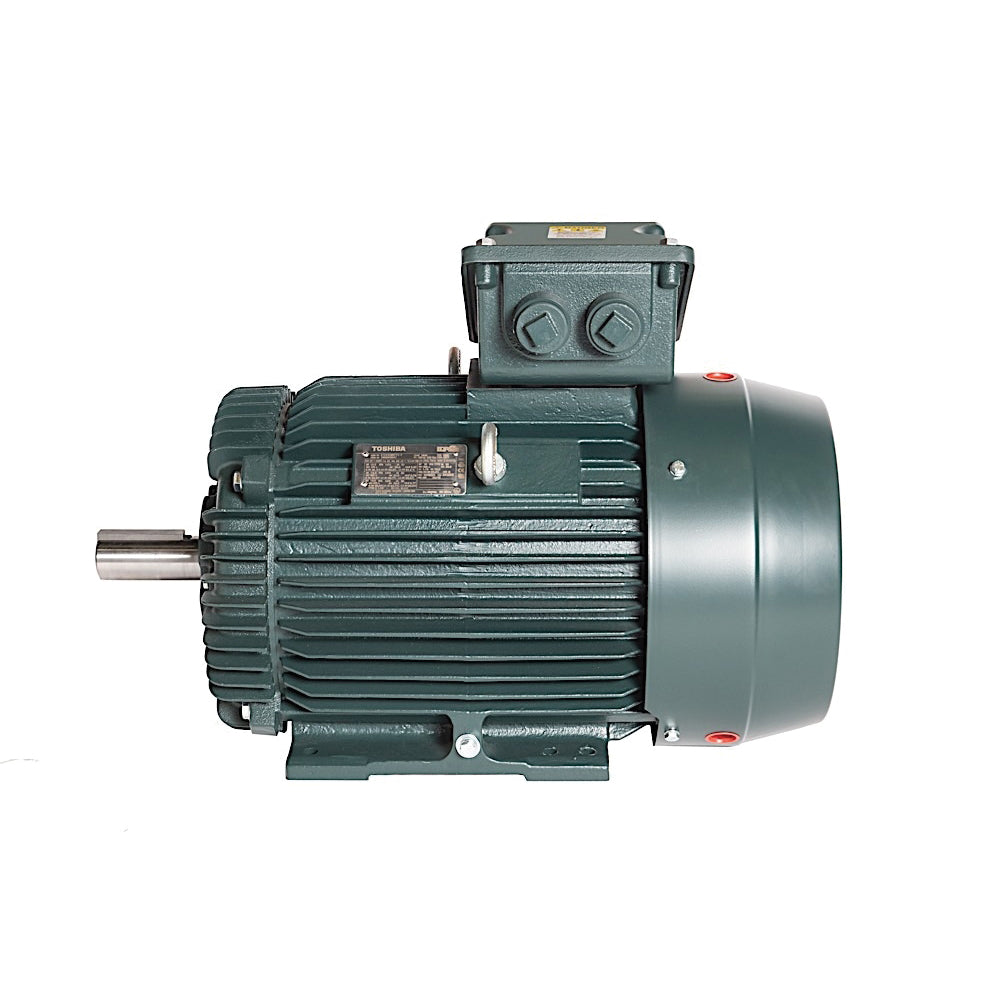

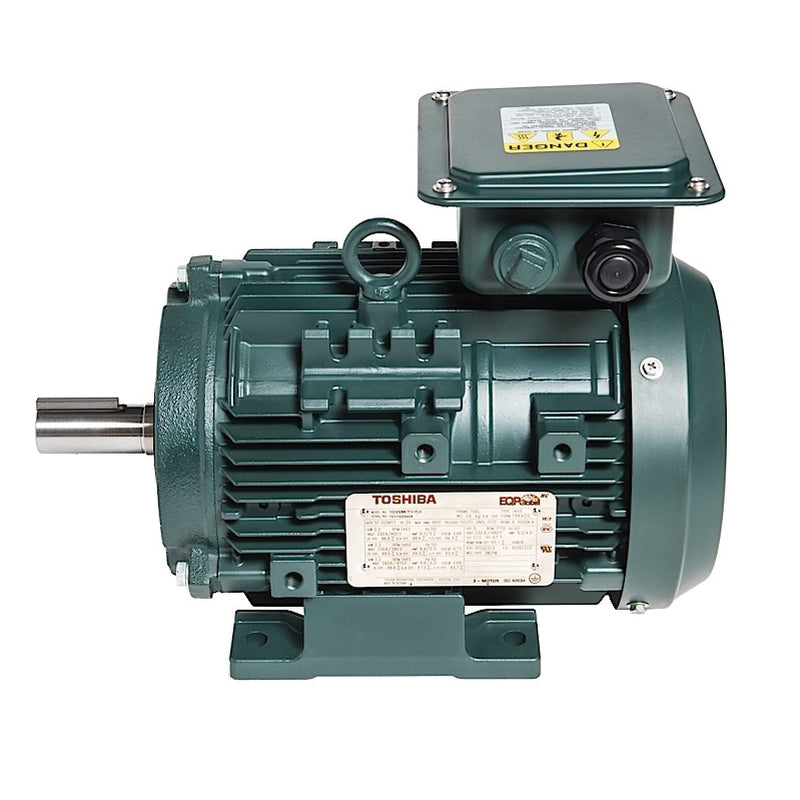

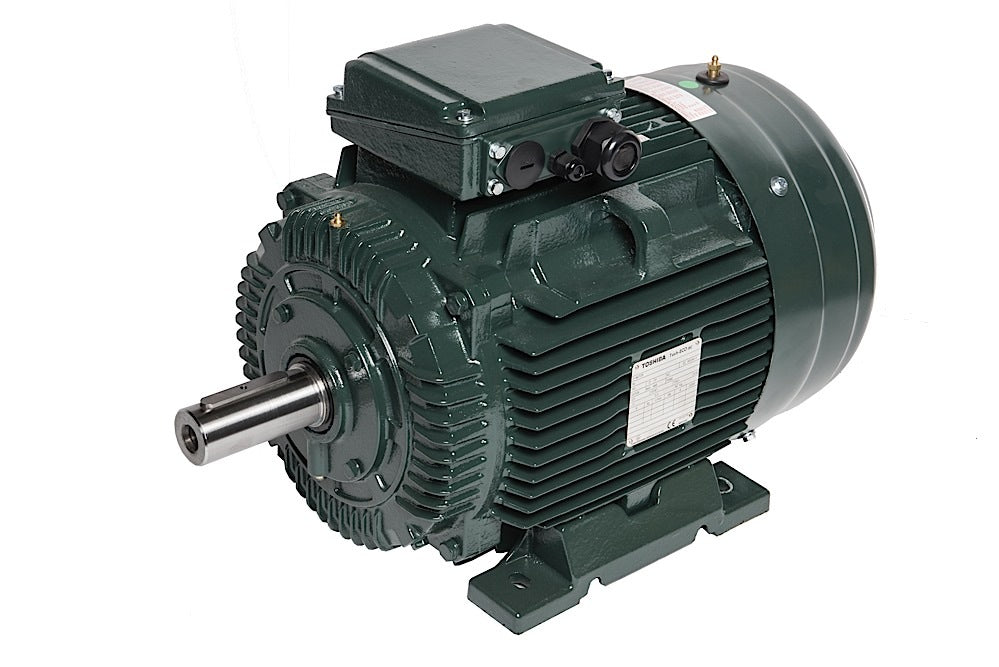

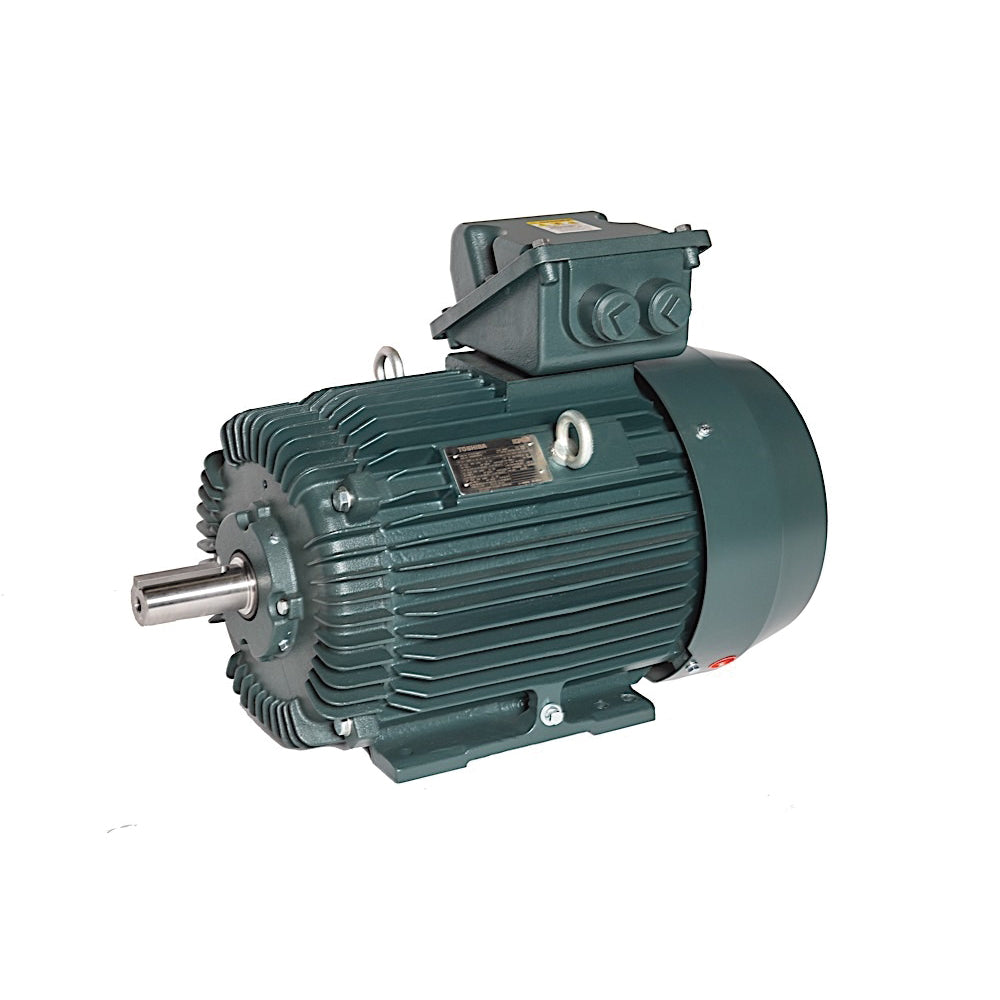

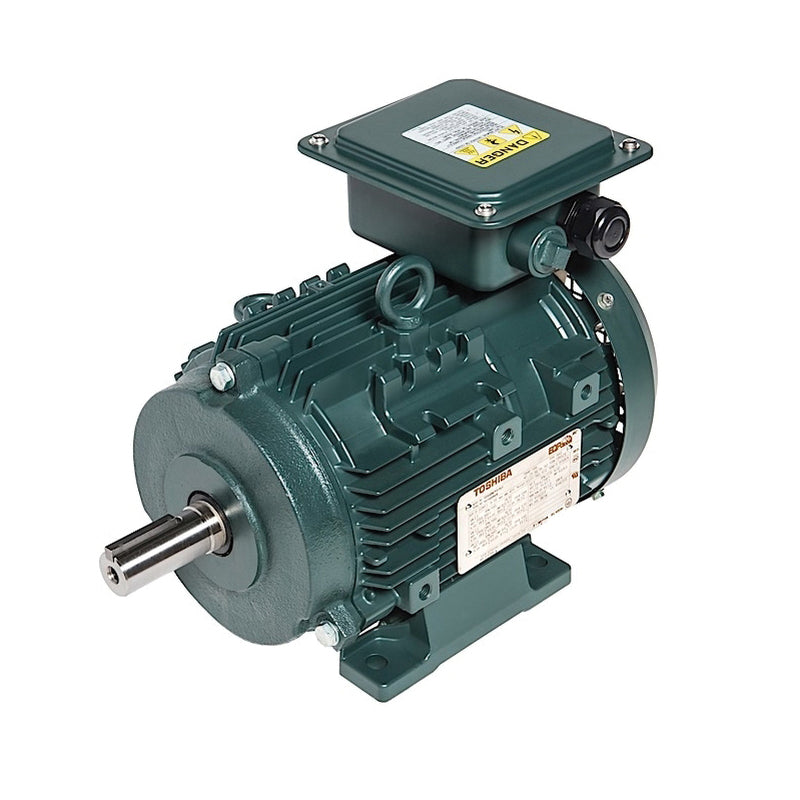

TOSHIBA 0042SDMV7FS-PL AC Motor

Product Description

The TOSHIBA 0042SDMV7FS-PL is an AC motor that serves general-purpose applications. This three-phase motor features a TEFC enclosure and an aluminum frame. It meets the IEC 60034 standards, ensuring quality and reliability. The motor supports dual voltage operation at 230/400 volts. It is suitable for both indoor and outdoor applications and is designed for dual frequency operation at fifty and sixty Hertz.

• Enclosure type: TEFC
• Frame size: 112M
• Designed for 3-phase power

Product Highlights

The TOSHIBA 0042SDMV7FS-PL is geared for efficiency and performance in various environments.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0042SDMV7FS-PL

Technical Specifications

• Motor Type: AC Motor
• Category: General Purpose
• Horsepower: 5 HP
• Power Rating: 4 kW
• RPM: 3600
• Voltage: 230/400 V
• Full Load Amps: 12.5/7.2 A
• Phase: 3
• Frequency: 50/60 Hz
• Efficiency Rating: 88.1 %
• Service Factor: 1.15
• Duty: S1
• Ambient Temperature: 40C
• Ingress Protection: IP55
• Frame Material: Aluminum
• Number of Poles: 2
• Rotation Type: CCW/CW
• Power Factor: 90.8 %
• Insulation Class: Class F
• Mounting Type: Footed
• Dimensions: 386 mm L x 309 mm H
