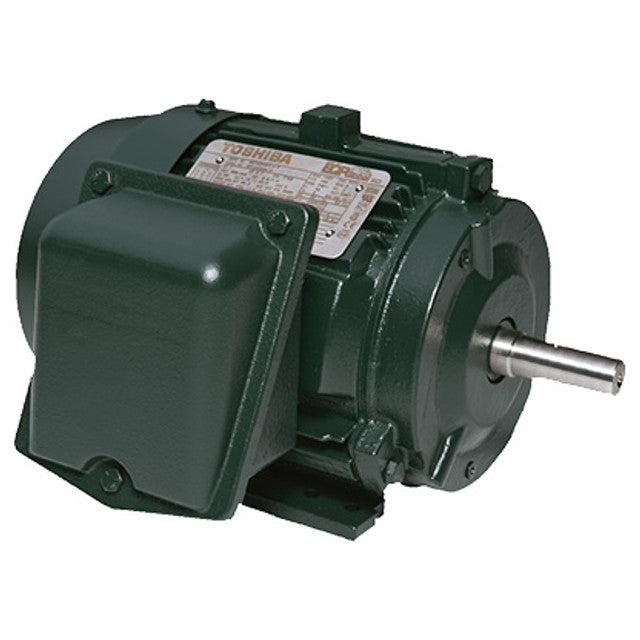

TOSHIBA 0038SDSR41A-P Electric Motor 3 HP

Product Description

The TOSHIBA 0038SDSR41A-P is a three-phase electric motor. It operates at two hundred thirty to four hundred sixty volts and sixty hertz. The motor delivers three horsepower at nine hundred RPM. It features a Totally Enclosed Fan Cooled (TEFC) enclosure and a two hundred fifteen T frame.

• Horsepower: 3 HP
• Speed: 900 RPM
• Enclosure Type: TEFC

Product Highlights

This electric motor is built to meet NEMA Premium efficiency standards.

Product Information

Standard Information

• Manufacturer Part Number: 0038SDSR41A-P
• Input Voltage: 230/460 V

Technical Specifications

• Frequency: 60 Hz
• HP: 3 HP
• RPM: 900
• Frame Type: 215T
• Enclosure: TEFC
• Phase: 3 Phase
• NEMA: Premium Efficiency
• Weight: 176 lbs
• Service Factor: 1.15
• Ambient Temperature: 40 C
• Full Load Amperage: 9.4/4.7
• NEMA Design: B
• Locked Rotor Code: H
• Full Load RPM: 870
• Insulation Class: F
• Duty: CONT
• Locked Rotor Amperage: 25.8
• Full Load Torque (lb-ft): 18.1
• Locked Rotor Torque: 210
• Break Down Torque: 260
• Drive End Bearing: 6308ZZC3
• Opposite Drive End Bearing: 6308ZZC3
• Full Load Efficiency (%): 87.8
• 3/4 Load Efficiency (%): 87.3
• 1/2 Load Efficiency (%): 84.5
• Full Load Power Factor (%): 67.5
• 3/4 Load Power Factor (%): 59.7
• 1/2 Load Power Factor (%): 47.4
