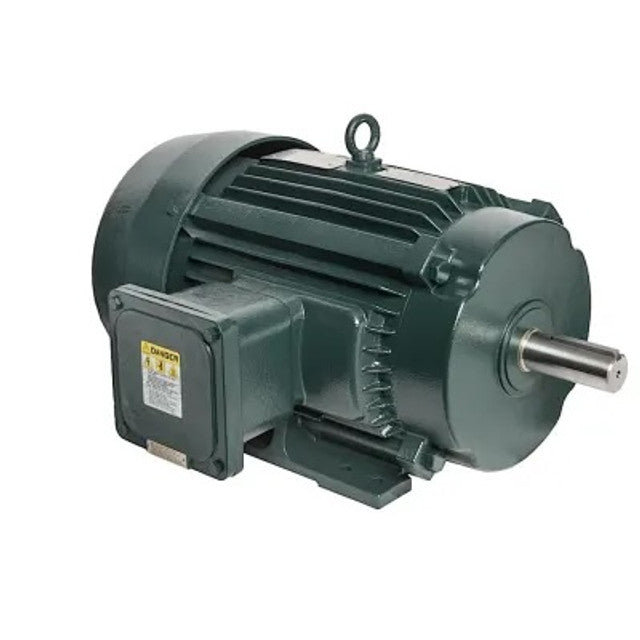

TOSHIBA 0036XPEA41A-P Electric Motor 3 HP

Product Description

The TOSHIBA 0036XPEA41A-P is a 3-phase electric motor suitable for general-purpose use. It works at 230/460 volts and 60 Hz. The motor has a frame size of 213T, delivers three horsepower, and operates at a speed of twelve hundred RPM. It features a totally enclosed explosion-proof (TEXP) design and complies with Class F insulation standards.

• Horsepower: 3 HP
• Speed: 1200 RPM
• Enclosure: Totally Enclosed Explosion Proof (TEXP)

Product Highlights

This electric motor is ideal for continuous duty applications, making it a reliable choice for HVAC and industrial tasks.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0036XPEA41A-P

Technical Specifications

• Horsepower: 3 HP
• Voltage: 230/460
• Frequency: 60 Hz
• Phase: 3 Phase
• RPM: 1200
• Frame Size: 213T
• Enclosure: TEXP
• NEMA Design: B
• Duty: CONT
• Insulation Class: F
• Ambient Temperature: 40 C
• Service Factor: 1.15
• Full Load Amps: 8.80/4.40 A
• Full Load Speed: 1170 RPM
• Efficiency 100: 89.6 %
• Efficiency 75: 89.1 %
• Efficiency 50: 86.5 %
• Power Factor 100: 74.1 %
• Power Factor 75: 56 %
• Power Factor 50: 67.7 %
• Locked Rotor Torque: 225
• Breakdown Torque: 370
• Locked Rotor Current: 32 A
• Weight: 214 lbs
• Bearing Type: Ball
• Mounting Type: Footed
• Shaft Size: 1-3/8 in
• Material: Cast Iron
• Torque Rating: 13.5 ft-lb
