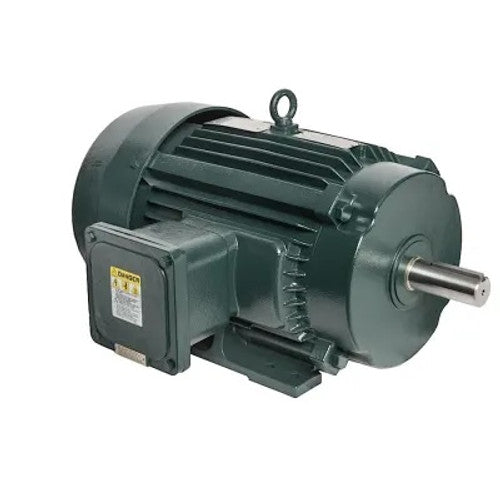

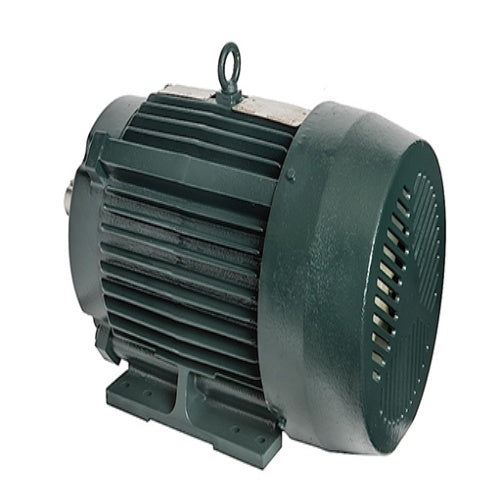

TOSHIBA 0034XPEA41A-P Electric Motor 3 HP 230/460 Volts

Product Description

The TOSHIBA 0034XPEA41A-P is a three-phase electric motor designed for efficient performance. This motor operates at 230/460 volts with a frequency of 60 Hz. It provides a powerful output of three horsepower at an impressive speed of 1800 RPM. The motor comes with a 182T frame size and features Class F insulation for durability and reliability in various environments.

• Horsepower: 3 HP
• Speed: 1800 RPM
• Enclosure: Totally Enclosed Explosion Proof (TEXP)

Product Highlights

This motor is built for continuous duty, ensuring it runs effectively without interruptions. It is explosion-proof and comes with a totally enclosed fan-cooled (TEFC) design, making it suitable for demanding applications. The TOSHIBA electric motor is ideal for HVAC systems, industrial machinery, and other mechanical operations requiring reliable motor performance.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0034XPEA41A-P

Technical Specifications

• Input Voltage: 230/460 V
• Frequency: 60 Hz
• Phase: 3 Phase
• Frame Size: 182T
• Enclosure: TEXP
• NEMA Design: B
• Efficiency: 89.5
• Insulation Class: F
• Duty Cycle: Continuous Duty
• Weight: 117 lbs
• Full Load Amperage: 8 Amp
• Service Factor: 1.15
• Operating Temperature: 40 C
• Locked Rotor Code: K
• kW: 2.2
• Power Factor: 79.6
• Full Load Torque: 8.95 lb-ft
• Locked Rotor Torque: 270
• Breakdown Torque: 390
• Drive End Bearing: 6306ZZC3
• Opposite Drive End Bearing: 6306ZZC3
• Full Load Efficiency: 89.5
• 3/4 Load Efficiency: 88.9
• 1/2 Load Efficiency: 86.7
• Power Factor (%) Full Load: 79.6
• Power Factor (%) 3/4 Load: 65.3
• Power Factor (%) 1/2 Load: 75
