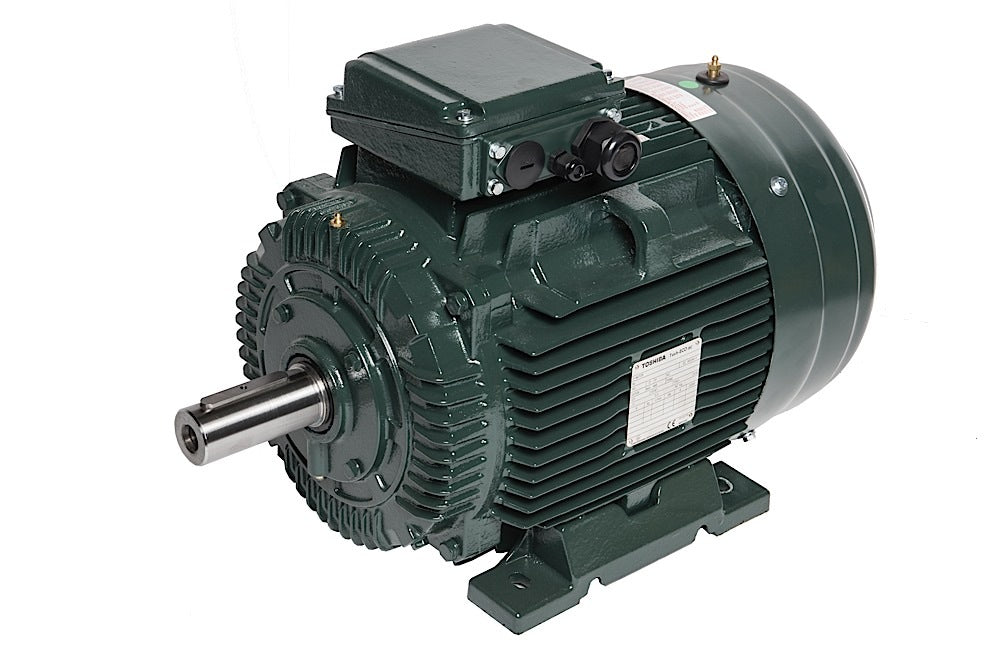

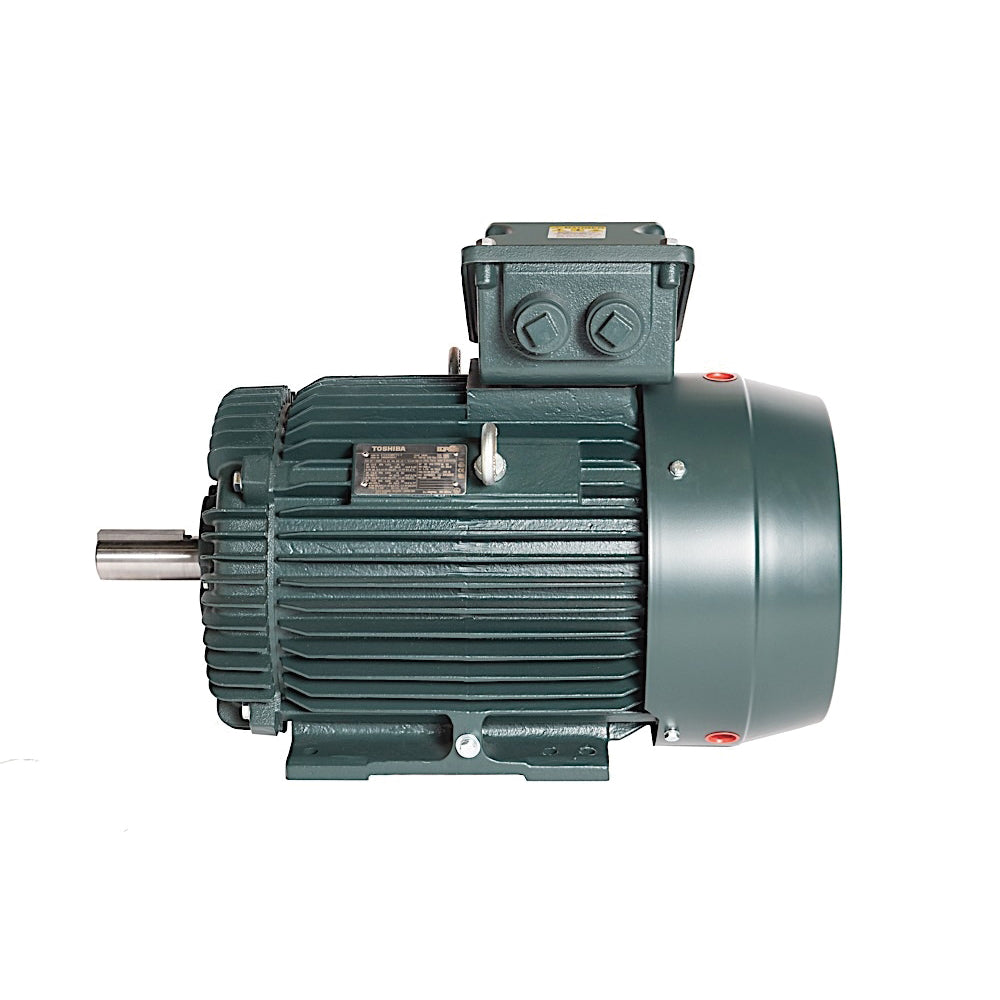

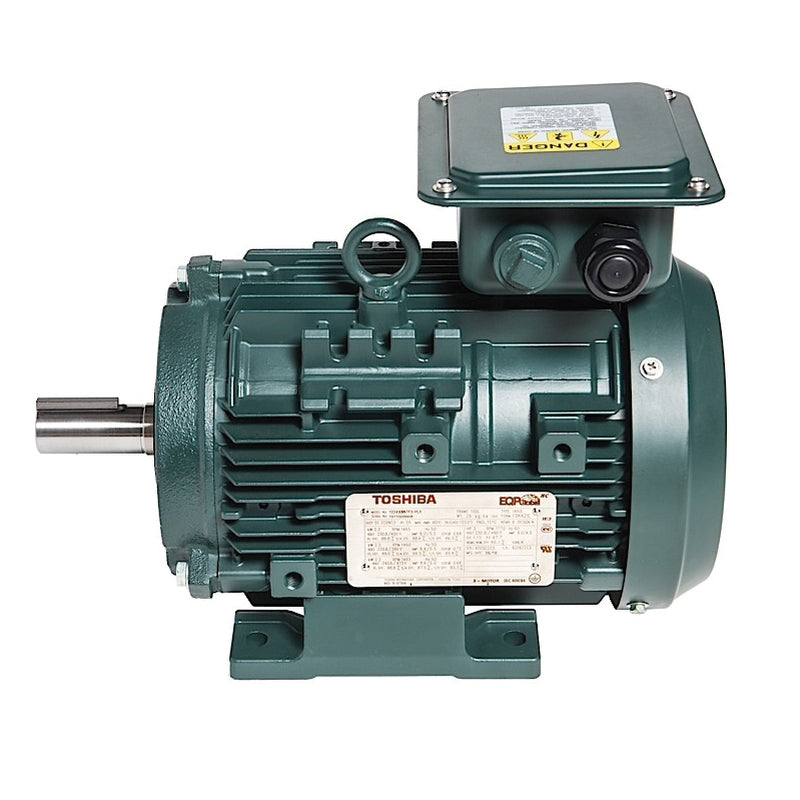

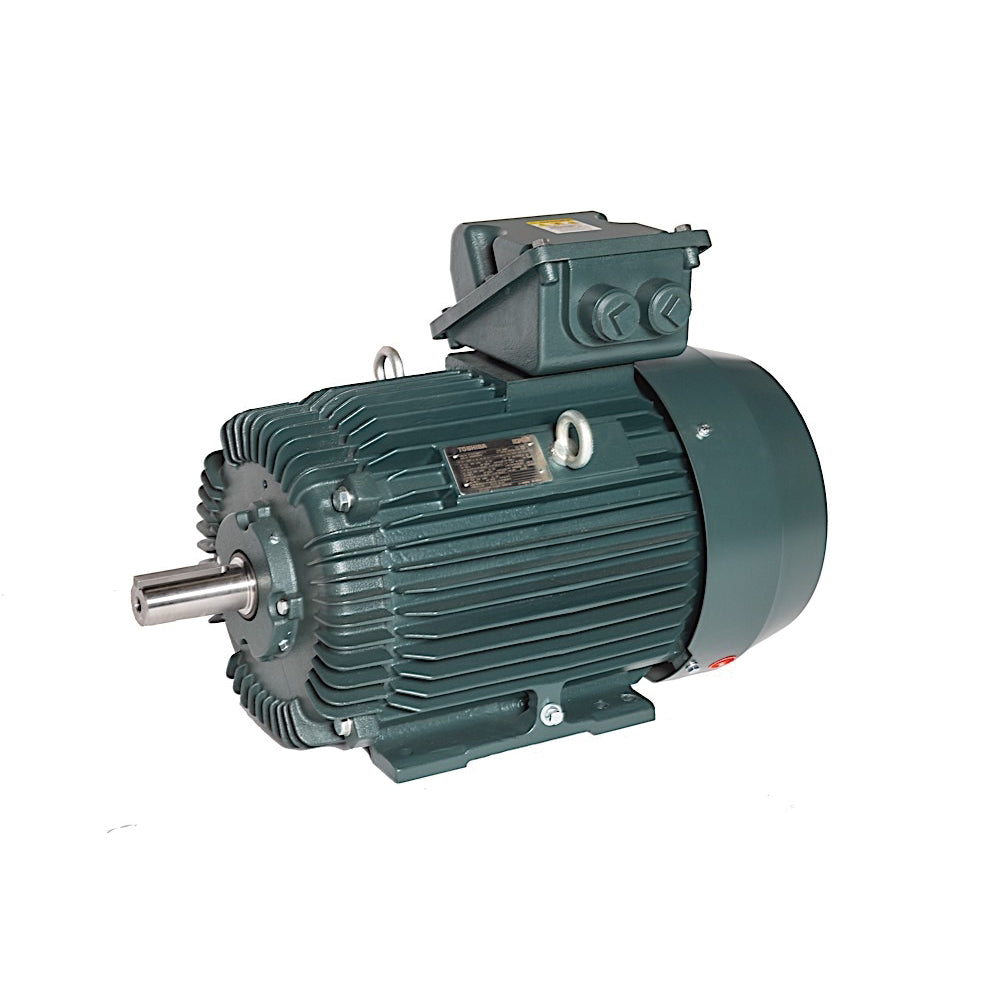

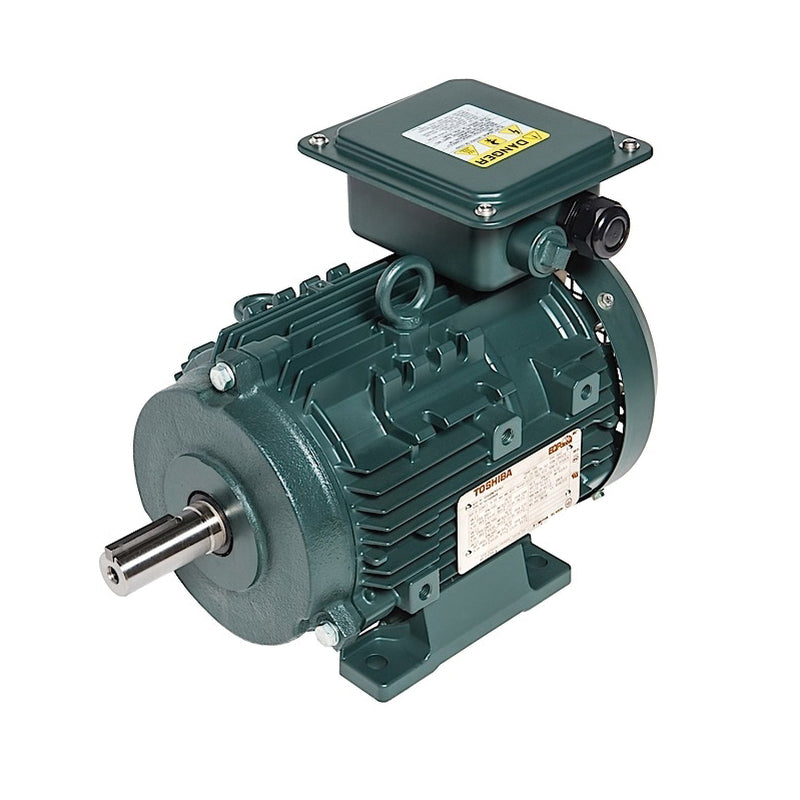

TOSHIBA 0034SDMV7GS-PL Electric Motor 3 Phase 230/400V 50/60Hz Replacement MPN

Product Description

The TOSHIBA 0034SDMV7GS-PL is a three-phase electric motor that adheres to IEC 60034 standards. This motor features a totally enclosed fan cooled enclosure and is optimized for severe duty applications. It operates at 230/400 volts and supports dual frequency operation between 50 and 60 hertz. The design incorporates an aluminum frame and is mounted using a D-Flange type for easy installation.

• Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
• Suitable for 50/60 Hz frequency operation
• Insulation Class: Class F

Product Highlights

Designed for industrial applications, this motor ensures reliable performance and durability.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0034SDMV7GS-PL

Technical Specifications

• Voltage Rating: 230/400 V
• Frequency Rating: 50/60 Hz
• Power Rating: 3 kW
• Horsepower: 4 HP
• Speed Rating: 1800 rpm
• Full Load Amperage: 12/6.9 A
• Number of Poles: 4
• Phase: 3 ph
• Enclosure: TEFC
• Frame Size: 100L
• Mounting Type: D-Flange Footed
• Rotation Type: CCW/CW
• Service Factor: 1.15
• Insulation Class: Class F
• Efficiency: 87.7%
• Power Factor: 76.2%
• Temperature Rating: 40 deg C
• Duty Type: Severe
• Motor Type: AC Motor
• Motor Standards: IEC
• Ingress Protection: IP55
• Frame Material: Aluminum
• Weight: 82 lbs
• Shaft Size: 28 mm Dia x 60 mm L
• Dimensions: 371 mm L x 278 mm H
