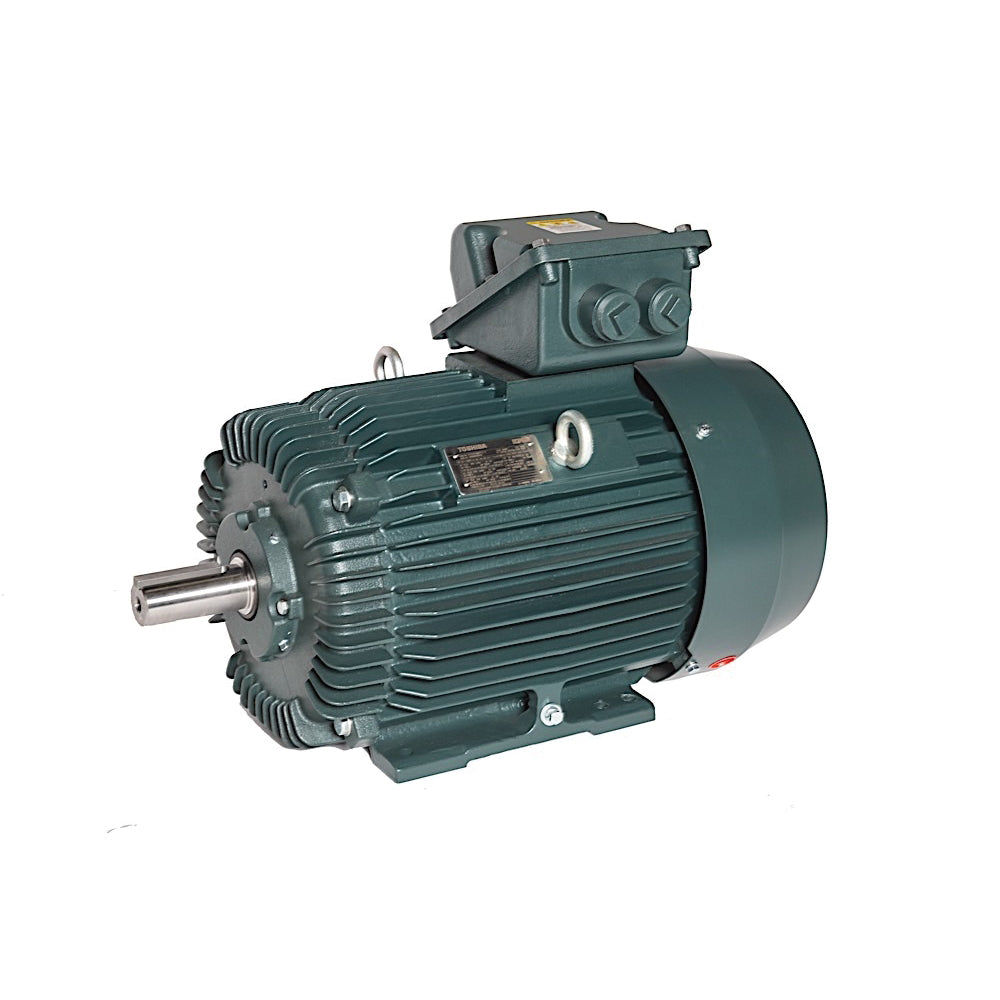

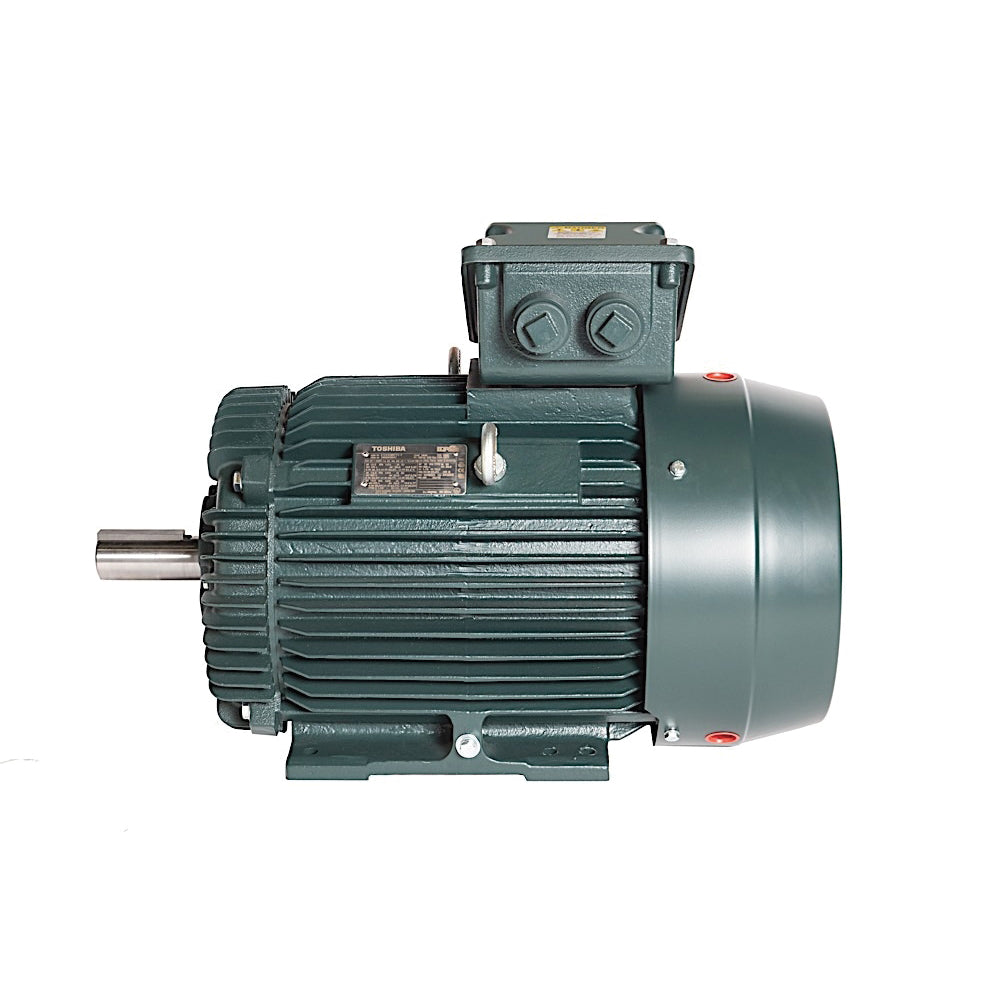

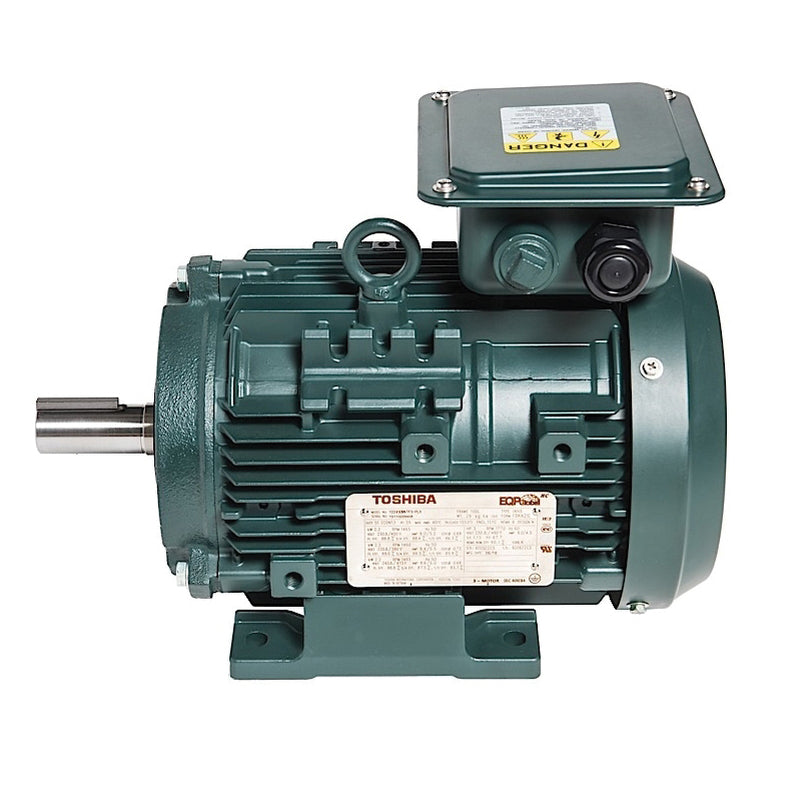

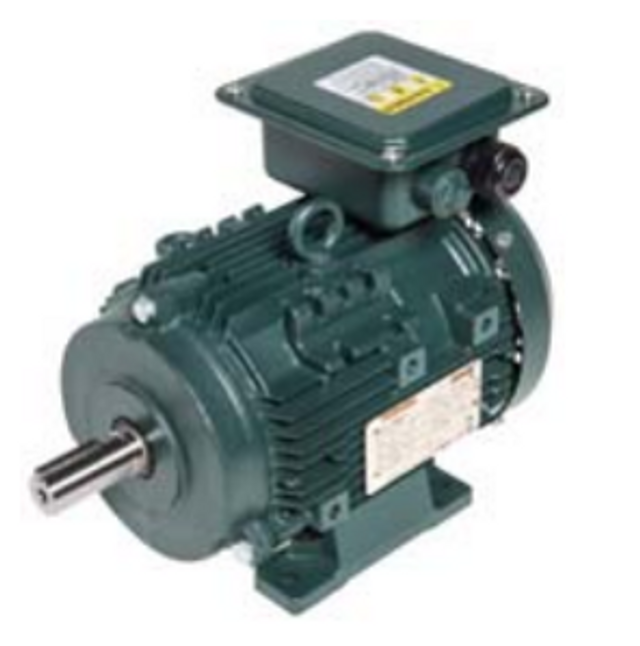

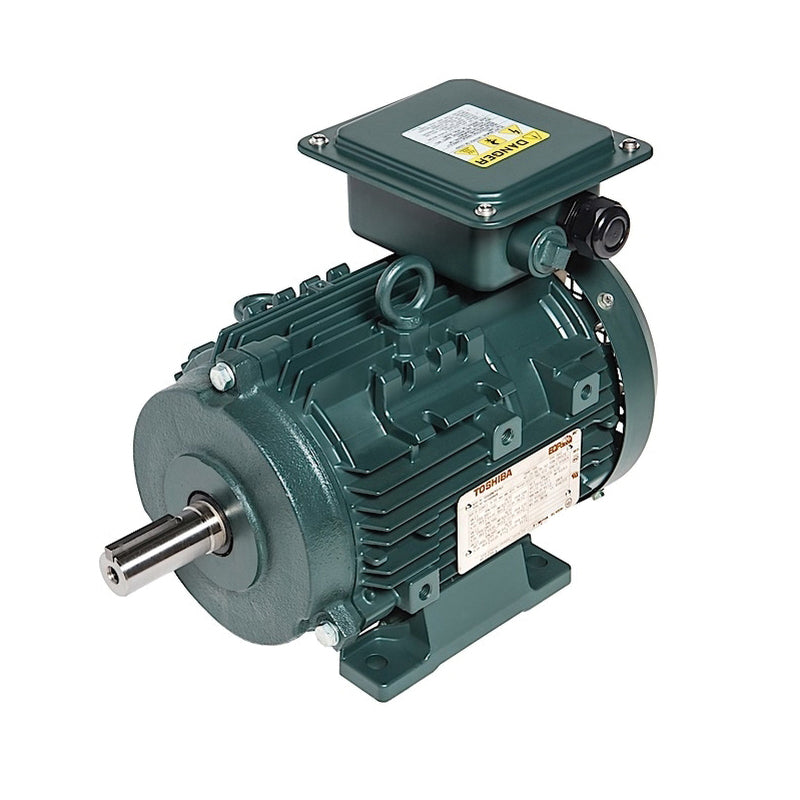

TOSHIBA 0034SDMV7FS-PL Electric Motor

Product Description

The TOSHIBA 0034SDMV7FS-PL is a robust electric motor built to comply with IEC 60034 standards. This motor supports dual voltage operation at two hundred thirty and four hundred volts, making it versatile for various applications. Its TEFC enclosure ensures protection against dust and moisture, while Class F insulation enables operation in high-temperature environments. Suitable for severe duty applications, this motor features an aluminum frame and is foot mounted for stability.

• Operates at either one thousand five hundred or one thousand eight hundred RPM based on frequency.
• Designed for three-phase power, making it ideal for industrial use.
• Constructed to allow clockwise and counterclockwise rotation.

Product Highlights

This electric motor is engineered for efficiency and durability in demanding environments.

Product Information

Standard Information

• Manufacturer: Toshiba Motors
• MPN: 0034SDMV7FS-PL

Technical Specifications

• Phase: 3 ph
• Power Rating: 3 kW
• Horsepower: 3 HP
• Frequency Rating: 60 Hz
• Input Voltage: 230/400 V
• Full Load Amperage: 11.1/6.4 A
• Speed: 1500 rpm
• Number of Poles: 4
• Enclosure: TEFC
• Frame Size: 100L
• Mounting Type: Footed
• Rotation Type: CCW/CW
• Service Factor: 1.15
• Insulation Class: Class F
• Efficiency: 87.7 %
• Power Factor: 76.2 %
• Temperature Rating: 40 deg C
• Duty Type: Severe
• Material: Aluminum
• Keyway: 45 mm L x 8 mm W
• Efficiency Standard: IE3/NEMA Premium Efficiency
• RPM: 1800
• Motor Enclosure Type: Totally Enclosed Fan Cooled
• Motor Voltage Phases: 3 Phase
• Motor Frequency: 60 Hz
• Motor Voltage: 400 Volt
• Weight: 30 kg
• Dimensions: 371 mm L x 278 mm H
• Shaft Size: 28 mm Dia x 60 mm L
