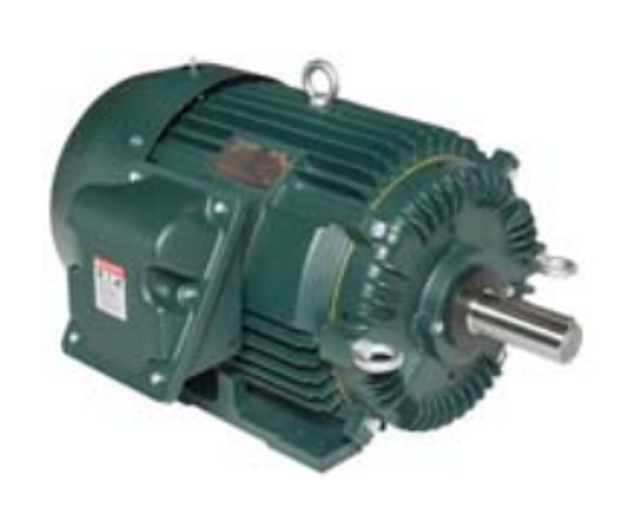

TOSHIBA 0034FAGR41A-P Electric Motor 3 HP TEAO Replacement MPN

Product Description

The TOSHIBA 0034FAGR41A-P is a three-phase electric motor tailored for cooling tower applications. This motor features a totally enclosed air-over (TEAO) design, making it suitable for both horizontal and vertical mounting. It offers durability in humid conditions with IP56 ingress protection.

• Three-phase operation for efficient performance.
• Designed for wet environments.
• Compatible with adjustable speed drives for versatile control.

Product Highlights

This motor is engineered to meet NEMA MG1 Part 31 insulation system standards, ensuring reliability and longevity.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0034FAGR41A-P

Technical Specifications

• Motor Horsepower: 3 HP
• Motor Voltage: 230/460 Volt
• Motor RPM: 1800 RPM
• Motor Frequency: 60 Hz
• Motor Enclosure Type: Totally Enclosed Air Over
• Motor Frame Model: 182T
• Phase: 3 Phase
• Full Load Amperage: 4.0 Amp
• Weight: 99 lbs
• Service Factor: 1.15
• Ambient Temperature: 40 C
• Duty: CONT
• Shaft Diameter: 1-1/8 inches
• Shaft Length: 2-3/4 inches
• Full Load Torque: 8.95 ft-lb
• Drive End Bearing: 6306ZZC3
• Opposite Drive End Bearing: 6306ZZC3
• NEMA: B
• Height: 9-1/2 inches
• Length: 13-1/2 inches
• Width: 9-1/2 inches
