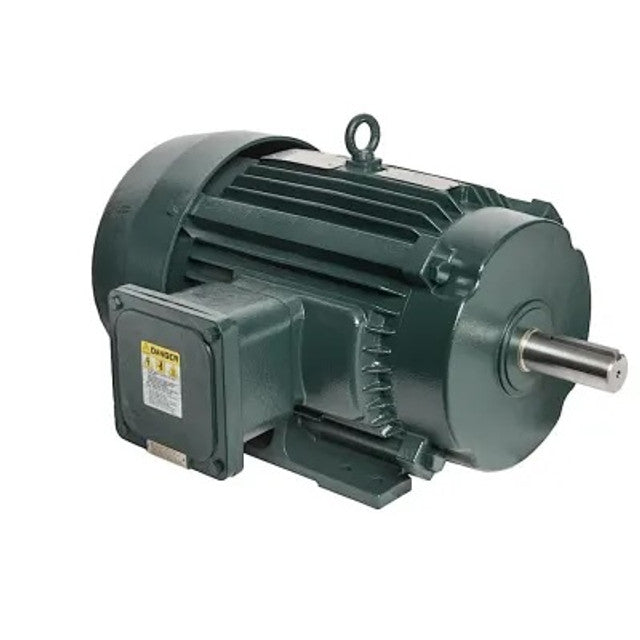

TOSHIBA 0032XPEA41A-P Electric Motor 3 HP

Product Description

The TOSHIBA 0032XPEA41A-P is a 3-phase electric motor built for continuous operation. This motor is designed for durability with a cast iron frame and operates at 230/460 volts and 60 Hz. It delivers a speed of 3600 RPM and is rated for 3 HP, suitable for various industrial applications.

• 3-phase design for high efficiency
• Rated for continuous duty
• Totally enclosed explosion-proof construction

Product Highlights

The TOSHIBA electric motor is ideal for tasks requiring a reliable power source and high performance. With its robust build, this motor can handle demanding environments.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0032XPEA41A-P

Technical Specifications

• Motor Phase: 3 Phase
• Input Voltage: 230/460 V
• Motor Frequency: 60 Hz
• Motor Horsepower: 3 HP
• Motor RPM: 3600 RPM
• Motor Frame Model: 182T
• Motor Enclosure Type: Totally Enclosed Explosion Proof
• Motor Duty Cycle: Continuous Duty
• Motor NEMA Design: B
• Motor Insulation Class: F
• Full Load Amperage: 8.4 A
• Weight: 108 lbs
• Efficiency 100%: 86.7
• Power Factor 100%: 88.8
• Locked Rotor Torque: 195
• Service Factor: 1.15
• Full Load Speed: 3500
