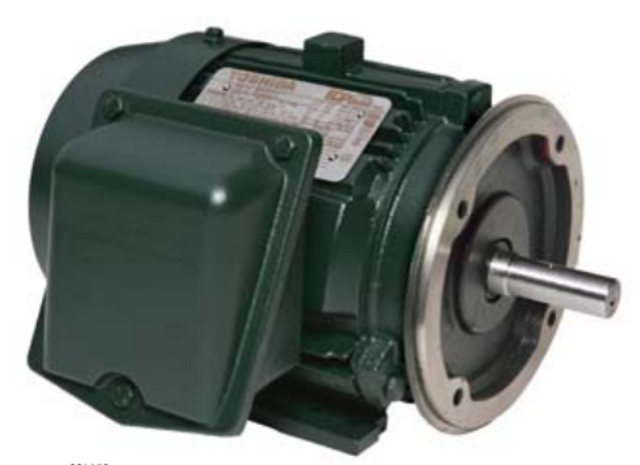

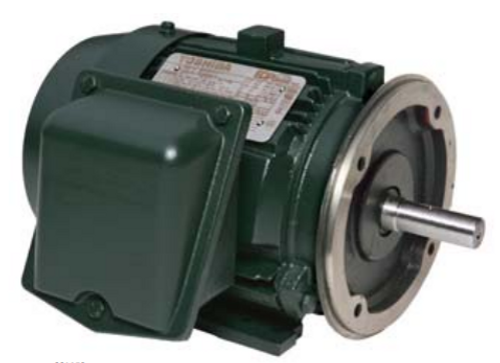

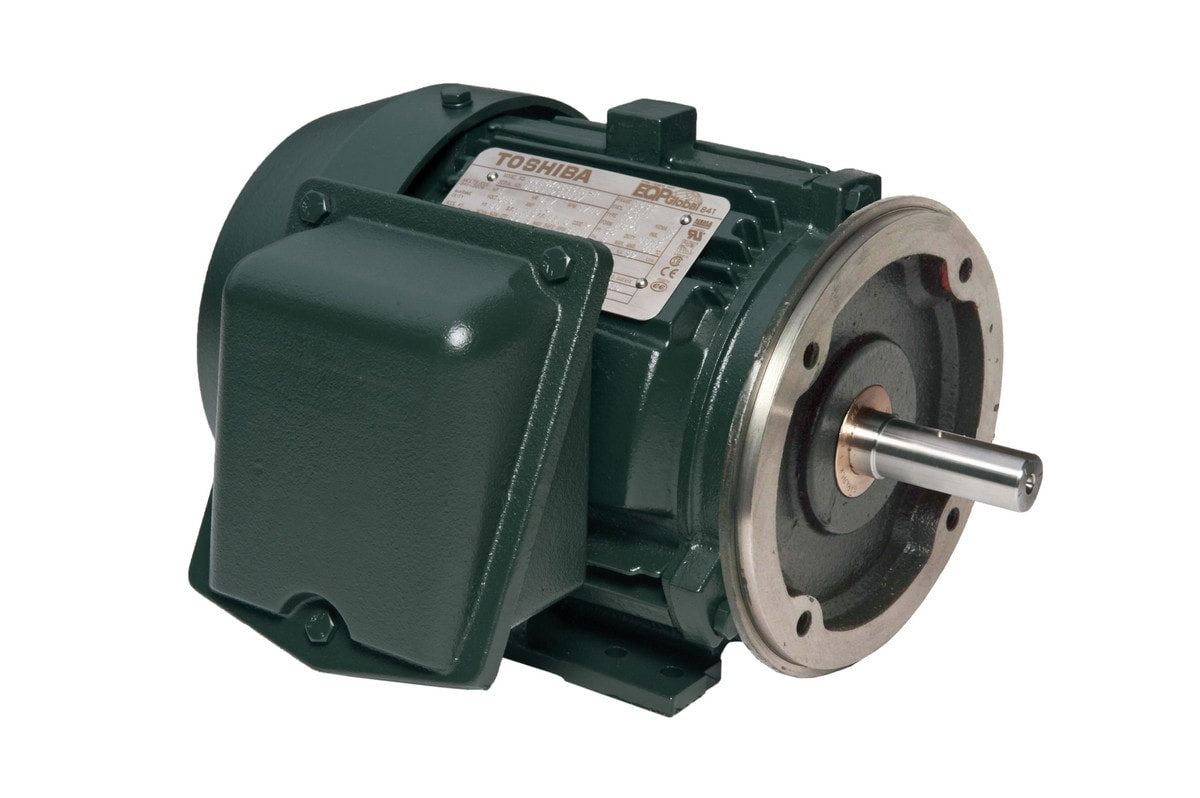

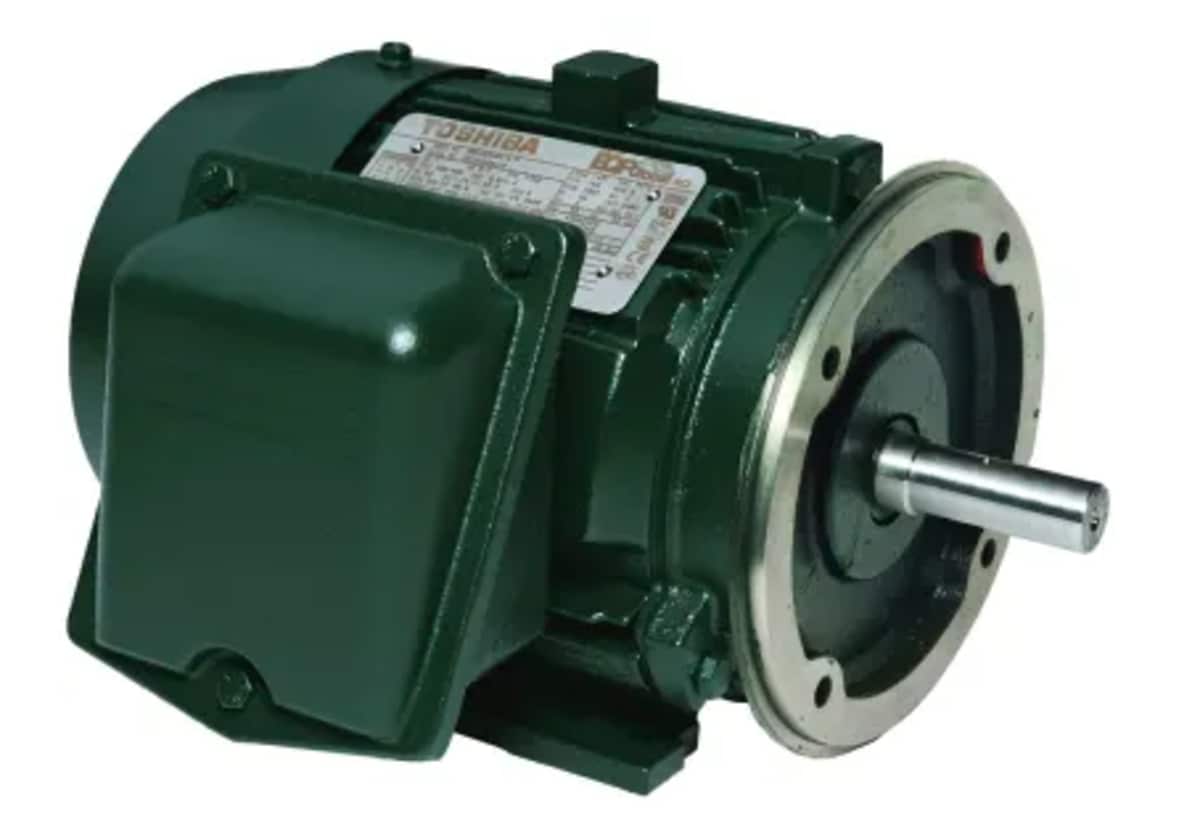

TOSHIBA 0032SDSR42A-P Electric Motor 3 HP 182TC

Product Description

The TOSHIBA 0032SDSR42A-P is a three-phase electric motor designed for continuous duty applications. This motor features a totally enclosed fan cooled (TEFC) enclosure and a durable cast iron frame. It belongs to the EQP Global SD series and is built with upgraded rotor, frame, brackets, fan, and bearings for enhanced performance.

• Horsepower: 3 HP
• Speed: 3600 RPM
• Frame Size: 182TC

Product Highlights

This electric motor is suitable for a variety of general-purpose applications such as compressors, fans, and blowers, making it a versatile choice for trade professionals.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0032SDSR42A-P

Technical Specifications

• Voltage: 230/460 VAC
• Full Load Amperage: 7.4/3.7 A
• Frequency: 60 Hz
• Phase: 3 ph
• Torque: 4.5 ft-lb
• Operating Temperature: 40 deg C
• Duty Cycle: Continuous Duty
• Dimensions: 15.5 in L x 11.2 in H
