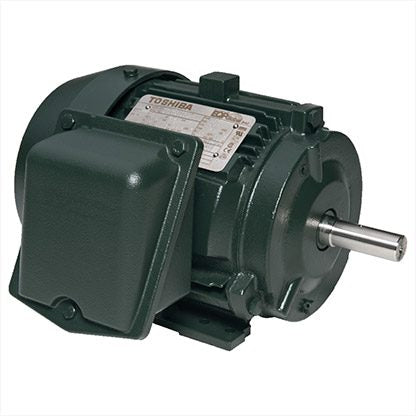

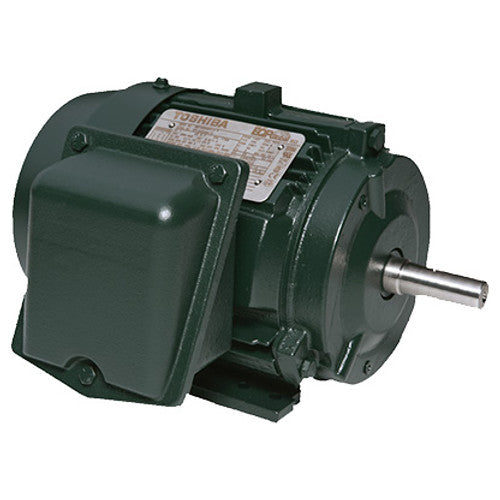

TOSHIBA 0032SDSR41A-P Electric Motor 3 HP (182T) Replacement MPN

Product Description

The TOSHIBA 0032SDSR41A-P is a reliable 3-phase electric motor used for various applications such as compressors, fans, and blowers. This motor operates efficiently at 230/460 VAC and 60 Hz. It has a Totally Enclosed Fan Cooled (TEFC) design and features a durable 182T frame. The motor is rated for continuous duty with a speed of 3600 RPM.

• Horsepower: 3 HP
• Enclosure: TEFC
• Rated for continuous duty

Product Highlights

Designed to meet the demands of general-purpose AC applications.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0032SDSR41A-P

Technical Specifications

• Horsepower: 3 HP
• Speed: 3600 RPM
• Voltage: 230/460 VAC
• Frame Size: 182T
• Enclosure: TEFC
• Phase: 3 phase
• Frequency: 60 Hz
• Service Factor: 1.15
• Insulation Class: Class F
• Mounting Type: Footed
• Application Type: General Purpose AC Motors
• Amperage Rating: 7.4/3.7 A
• Torque Rating: 4.5 ft-lb
• Rotation: CW/CCW
• Bearing Type: Ball
• Temperature Rating: 40 deg C
• Material: Cast Iron
• Type: Continuous-Duty Type IKH
• Series: SD Series
• Dimensions: 15.5 in L x 11.2 in H
• Weight: 88 lbs
• NEMA: Premium Efficiency
• Nominal Efficiency: 86.5
• Minimum Efficiency: 84
• Locked Rotor: 195
• Break Down: 335
• Drive End: 6306ZZC3
• Opposite Drive End: 6306ZZC3
• Full Load: 88.8
• 3/4 Load: 78
• 1/2 Load: 85.5
• Variable Torque Speed Range: 60:1
• Constant Torque Speed Range: 20:1
