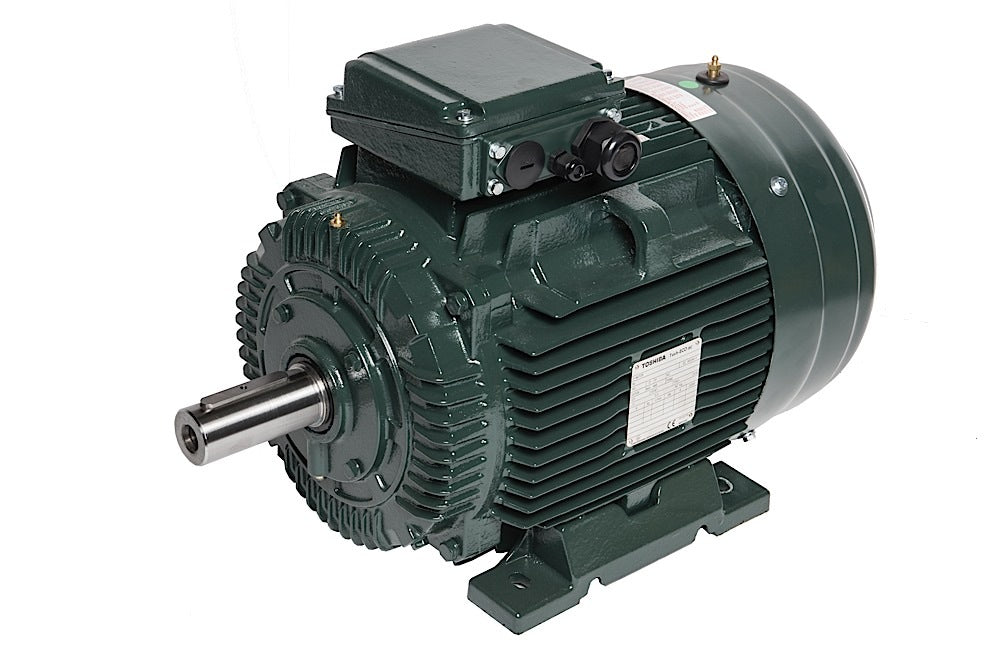

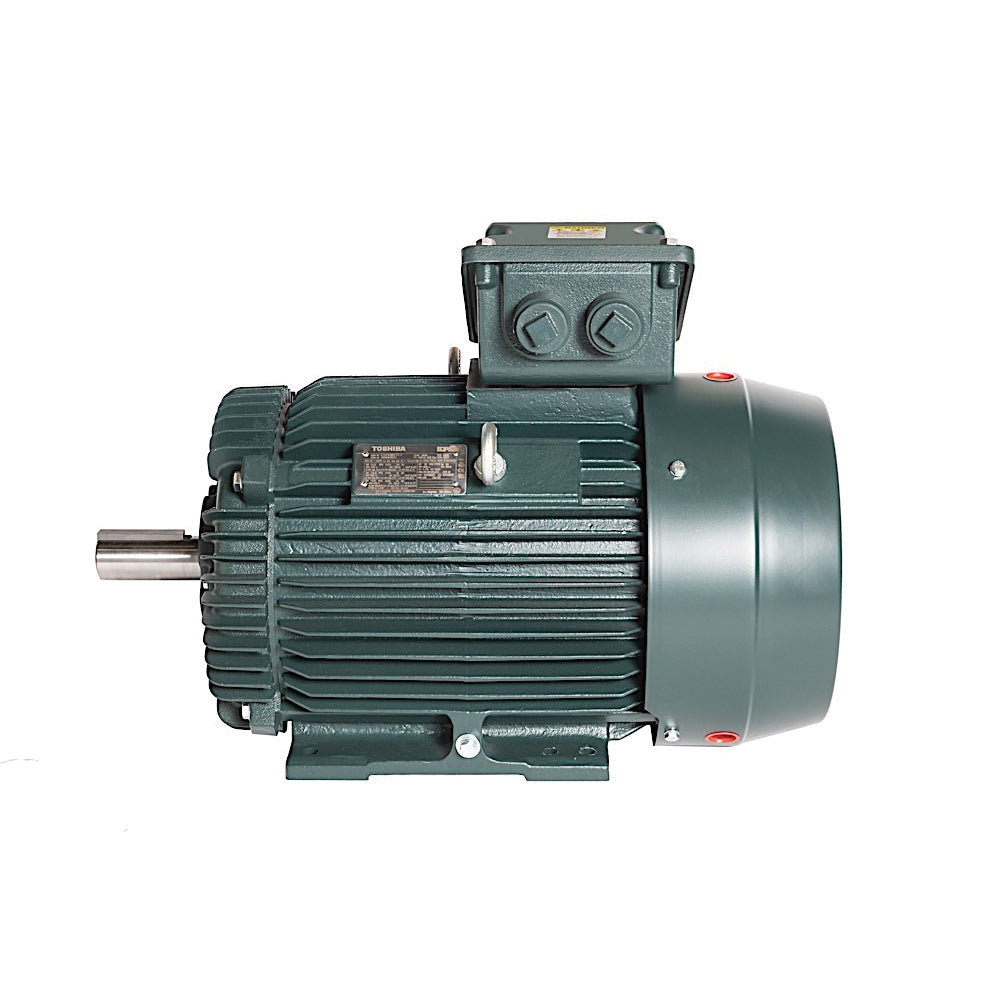

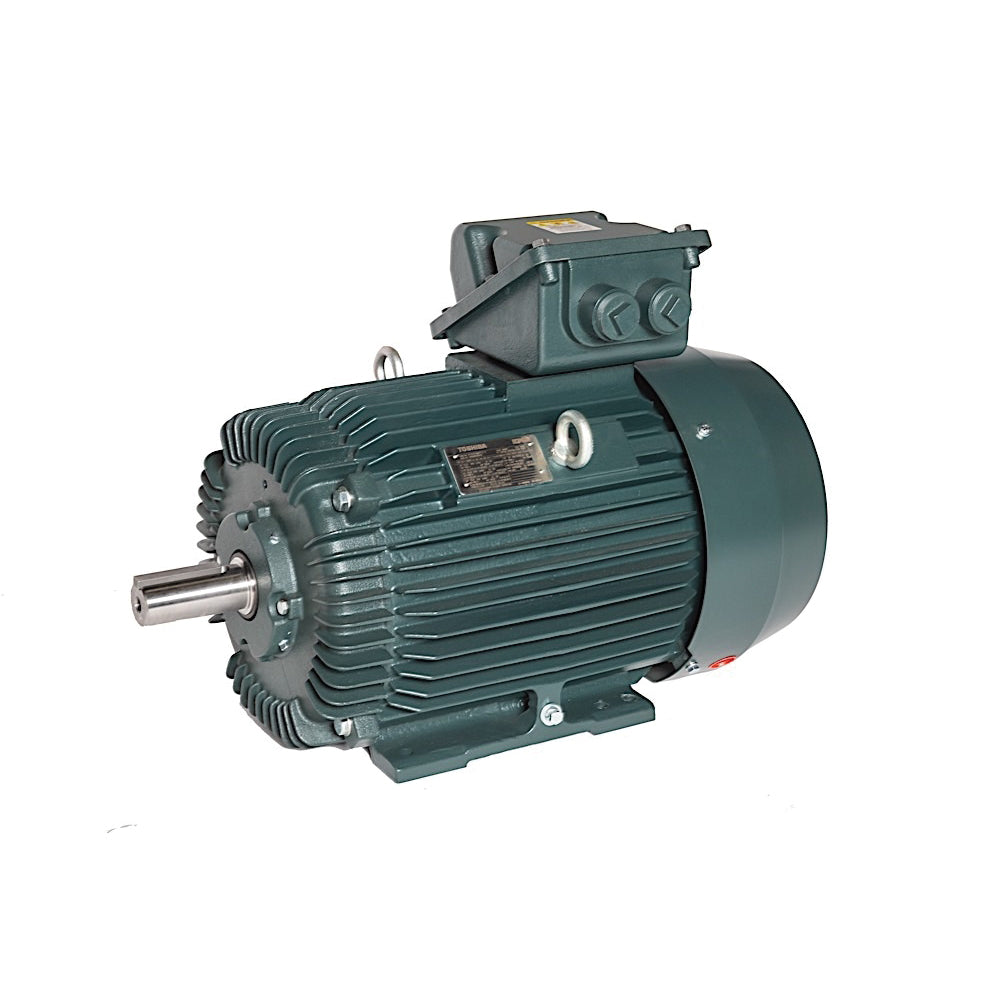

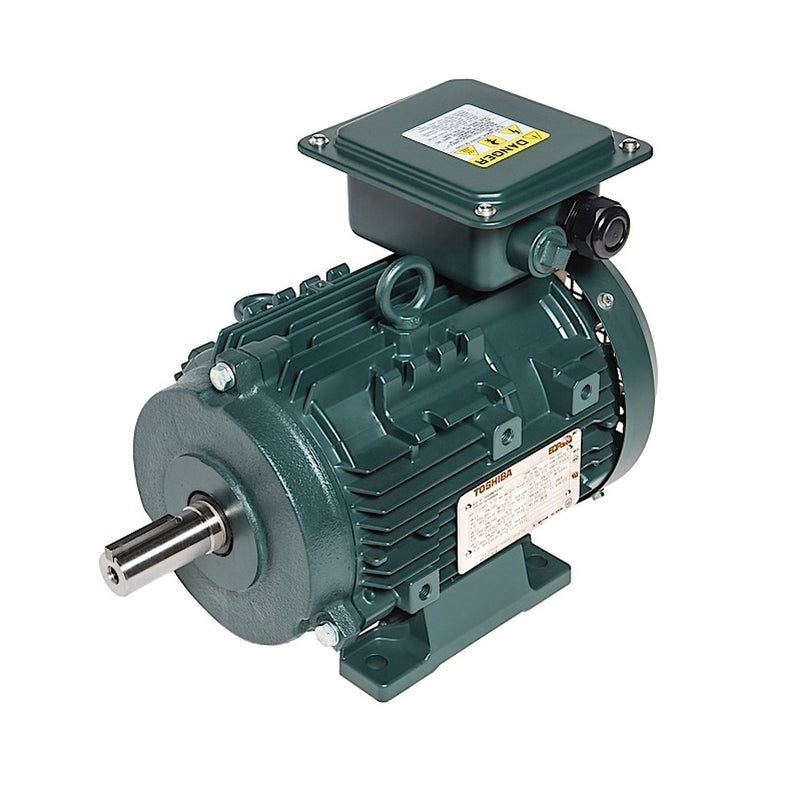

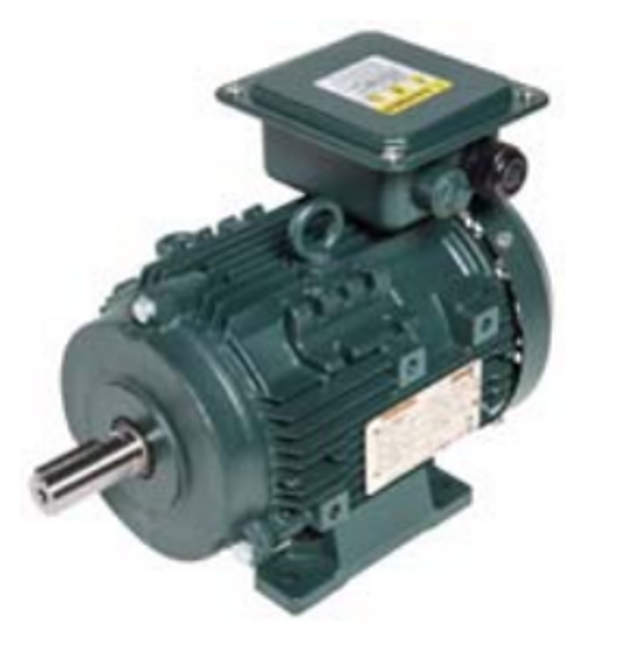

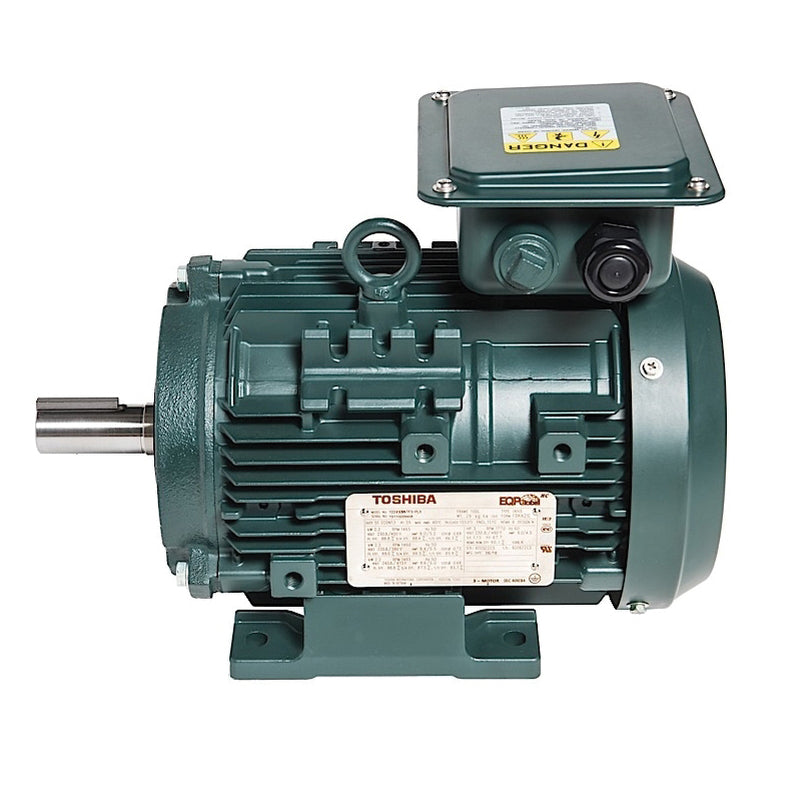

TOSHIBA 0032SDMV7GS-PL Electric Motor 4 HP 100L Frame

Product Description

The TOSHIBA 0032SDMV7GS-PL is a three-phase electric motor built to comply with IEC 60034 standards. This motor features a Totally Enclosed Fan Cooled (TEFC) design, making it suitable for demanding environments. It supports dual voltage operation at two hundred thirty and four hundred volts, adaptable for both fifty Hz and sixty Hz frequency applications.

• Three-phase AC motor operation
• TEFC enclosure suitable for severe duty
• IP55 ingress protection rating

Product Highlights

Designed for durability, this motor is built with an aluminum frame and is ideal for various industrial and commercial applications.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0032SDMV7GS-PL

Technical Specifications

• Motor Type: AC Motor
• Horsepower: 4 HP
• Power Rating: 3 kW
• Voltage: 230/400 V
• Full Load Amps: 9.7/5.6
• Frequency: 50/60 Hz
• Speed: 3600 RPM
• Number of Poles: 2
• Phase: 3
• Efficiency: 87.1 %
• Enclosure: TEFC
• Frame Size: 100L
• Duty: S1
• Ambient Temperature: 40C
• Service Factor: 1.1
• Ingress Protection: IP55
• Frame Material: Aluminum
• Flange: B5
• Motor Standards: IEC
• Mounting Type: D-Flange Footed
• Insulation Class: Class F
• Rotation Type: CCW/CW
• Amperage Rating: 9.9/5.7 A
• Dimensions: 371 mm L x 278 mm H
• Duty Type: Severe
• Shaft Size: 28 mm Dia x 60 mm L
• Additional Information: Low Voltage, 45 mm L x 8 mm W Keyway
