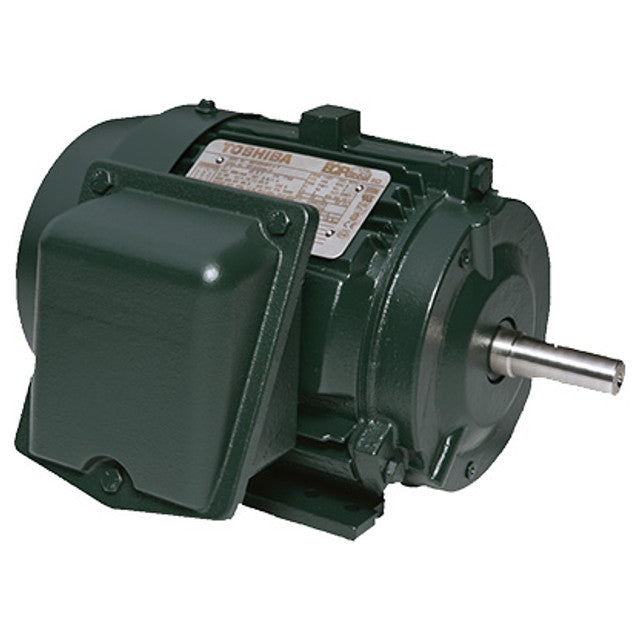

TOSHIBA 0026SDSR41A-P Electric Motor 2 HP

Product Description

The TOSHIBA 0026SDSR41A-P is a two horsepower electric motor designed for reliable performance in three-phase applications. It operates at 230/460 volts and 60 hertz, with a speed of twelve hundred RPM. This motor features a 184T frame and is built with a totally enclosed fan cooled (TEFC) enclosure, ensuring durability and longevity in various settings.

• Horsepower: 2 HP
• Speed: 1200 RPM
• Enclosure: TEFC

Product Highlights

The TOSHIBA electric motor is suitable for continuous duty applications and is commonly used in general purpose AC motors, compressor motors, and fan and blower operations.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0026SDSR41A-P

Technical Specifications

• Horsepower: 2 HP
• Voltage: 230/460 VAC
• Frequency: 60 Hz
• Phase: 3
• Speed: 1200 RPM
• Frame Size: 184T
• Enclosure: TEFC
• Duty: Continuous
• Nominal Efficiency: 88.5%
• Power Factor: 64.5%
• Full Load Amperage: 6.80/3.40 A
• Full Load RPM: 1170
• Service Factor: 1.15
• Insulation Class: F
• Ambient Temperature: 40 °C
• NEMA Design: B
• Locked Rotor Code: L
• kW: 1.5
• Full Load Torque: 8.98 ft-lb
• Locked Rotor Torque: 275
• Breakdown Torque: 460
• Drive End Bearing: 6306ZZC3
• Opposite Drive End Bearing: 6306ZZC3
• Mounting Type: Foot
• Shaft Size: 1-1/8 in
• Rotation: Unidirectional
• Bearing Type: Ball
• Temperature Rating: 40 °C
• Material: Cast Iron
• Dimensions: 15.5 in L x 11.2 in H
