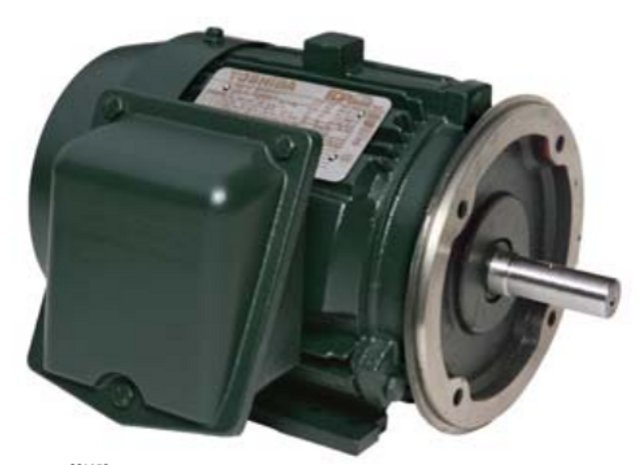

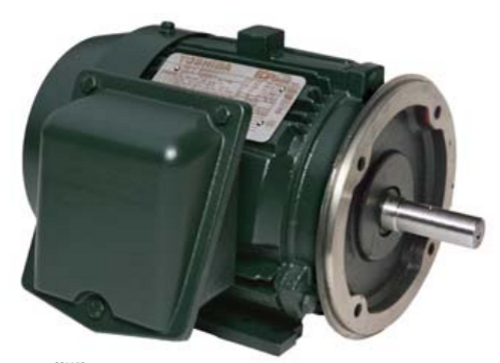

TOSHIBA 0024SDSR42A-P Electric Motor 2 HP 145TC

Product Description

The TOSHIBA 0024SDSR42A-P is an electric motor suitable for general purpose applications. This motor operates at 230 or 460 volts and is designed to work at a frequency of sixty Hertz. It is capable of achieving speeds of one thousand eight hundred revolutions per minute (RPM). The product features a totally enclosed fan-cooled (TEFC) enclosure and is rated for continuous duty, ensuring reliable performance.

• Horsepower: 2 HP
• Enclosure Type: TEFC
• Frame Size: 145TC

Product Highlights

This motor boasts an efficiency of eighty-six point five percent, making it a reliable choice for various industrial applications. With a NEMA B design, it meets specific performance standards that professionals require.

Product Information

Standard Information

• Model Number: 0024SDSR42A-P
• Weight: 66 lbs

Technical Specifications

• Horsepower: 2 HP
• Frame Size: 145TC
• Efficiency: 86.5
• Voltage: 230/460
• Enclosure: TEFC
• Service Factor: 1.15
• Ambient Temperature: 40 C
• Frequency: 60 Hz
• Full Load Amperage: 3-Jun
• NEMA Design: B
• Power Output: 1.5 kW
• Synchronous RPM: 1800
• Full Load RPM: 1750
• Insulation Class: F
• Duty: CONT
• Drive End Bearing: 6305ZZC3
• Opposite Drive End Bearing: 6305ZZC3
• Locked Rotor: 255
• Full Load Torque: 6
• Breakdown Torque: 390
• Phase: 3 Phase
