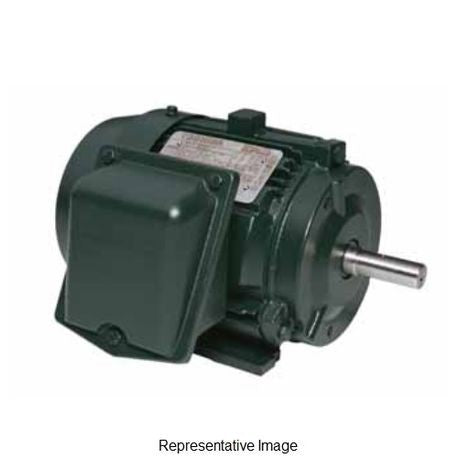

Toshiba 0024SDSR41A-P Motor, Low Voltage, 1800 rpm, 2 HP

Product Description

The Toshiba 0024SDSR41A-P is a low voltage motor designed for reliable operation. This motor operates at an efficient speed of eighteen hundred revolutions per minute and provides two horsepower. It is suitable for various applications including HVAC systems and industrial equipment.

• Low voltage operation at 230/460 volts
• Footed mounting for easy installation
• Designed for a variety of industrial and commercial settings

Product Highlights

This Toshiba motor offers efficient performance with a robust design suitable for diverse applications.

Product Information

Standard Information

• Brand: Toshiba
• Manufacturer: Toshiba

Technical Specifications

• MPN: 0024SDSR41A-P
• Horsepower: 2 hp
• Speed: 1800 rpm
• Voltage Rating: 230/460 V
• Amperage Rating: 6/3 A
• Bearing Type: 6305ZZC3
• Frame: 145T
• Enclosure Type: TEFC
• Torque Rating: 6 lb/ft
• Insulation Class: F
• Temperature Rating: 40 C Ambient
• Order Interval: 1
• Minimum Order Qty: 1
• Series: EQP Global
• Mounting Style: Footed
