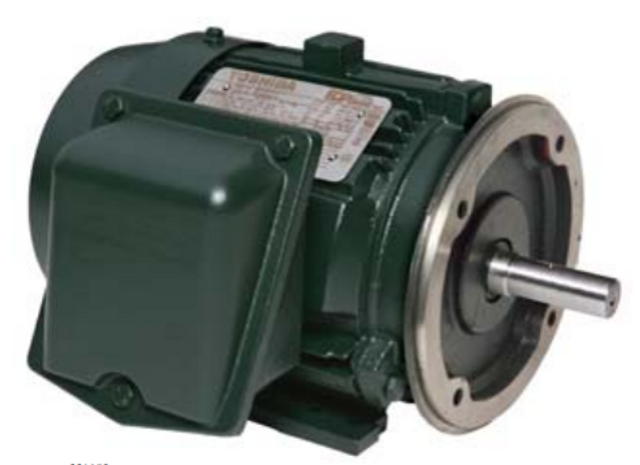

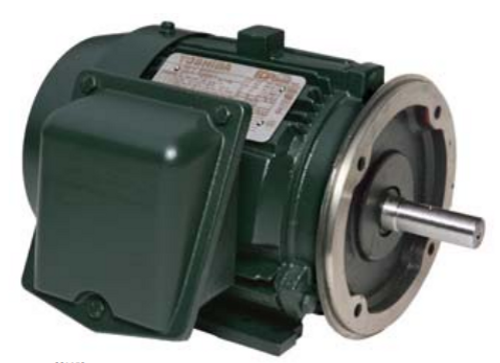

TOSHIBA 0022SDSR42A-P AC Motor 2 HP 145TC Frame

Product Description

The TOSHIBA 0022SDSR42A-P AC motor is rated at two horsepower and designed for three-phase applications. This motor operates efficiently at 230/460 VAC and 60 Hz, providing a speed of 3600 RPM. It features a totally enclosed fan-cooled (TEFC) enclosure that protects it from dust and moisture, making it suitable for compressor and general-purpose applications.

• Horsepower: 2 HP
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame Size: 145TC

Product Highlights

This motor is built for continuous duty with robust features to meet industrial needs.

Product Information

Standard Information

• Brand: TOSHIBA
• MPN: 0022SDSR42A-P

Technical Specifications

• Application Type: Compressor Motors, General Purpose AC Motors
• Rated Power: 2 HP
• Input Voltage: 230/460 VAC
• Frequency: 60 Hz
• Phase: 3 PH
• Speed: 3600 RPM
• Enclosure Type: TEFC
• Frame Size: 145TC
• Shaft Size: 7/8 in Dia x 2-1/4 in L
• Rotation: CW/CCW
• Service Factor: 1.15
• Bearing Type: Ball
• Torque: 3.01 ft-lb
• Mounting Type: Dual/Horizontal C-Face Footed
• Operating Temperature: -13 to 104 deg F
• Insulation Class: Class F
• Material: Cast Iron
• Rated Current: 5.2 A/2.6 A
• NEMA Standards: NEMA
• Number of Speeds: 1
• Duty: Continuous Duty
• Efficiency: 85.5 %
• Power Factor: 84.4
• Locked Rotor Current (60 Hz): 23.5 A
• Locked Rotor Torque (60 Hz): 275
• Breakdown Torque (60 Hz): 363
• Drive End Bearing: 6305ZZC3
• Opposite Drive End Bearing: 6305ZZC3
• Dimensions: 13.2 in L x 7.9 in W x 7.7 in H
• Amperage: 31 A
• Input Current: AC
• Frame Type: 145TC
• Hertz: 60 Hz
• Voltage: 230/460
• kW: 1.5
• Full Load RPM: 3490 RPM
• NEMA Design: B
• Code: L
• Ambient Temperature: 40 C
• Full Load Efficiency (60 Hz): 85.6 %
• 3/4 Load Efficiency (60 Hz): 84.9 %
• 1/2 Load Efficiency (60 Hz): 82.2 %
• Full Load Power Factor (60 Hz): 84.4
• 3/4 Load Power Factor (60 Hz): 79.8
• 1/2 Load Power Factor (60 Hz): 69.5
• Constant Torque Speed Range: 10:1
• Variable Torque Speed Range: 60:1
