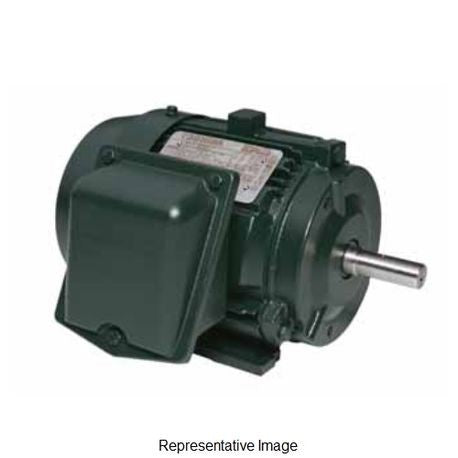

Toshiba 0014SDSR41A-P Motor, Low Voltage, 1800 rpm, 1 HP

Product Description

The Toshiba 0014SDSR41A-P is a low voltage AC servo motor designed for precise control in various applications. With a speed of one thousand eight hundred revolutions per minute and a power output of one horsepower, this motor is well-suited for demanding tasks. The model ensures reliable performance and durability, making it an excellent choice for HVAC systems, automation, and other industrial uses.

• Voltage Rating: Two hundred thirty to four hundred sixty volts
• Insulation Class: F
• Torque Rating: Two point ninety-eight pound-feet

Product Highlights

This motor features a C-Face footed mounting style and a TEFC enclosure type, ensuring protection in tough environments.

Product Information

Standard Information

• Brand: Toshiba
• Part Number: TOS0014SDSR41A-P

Technical Specifications

• Speed: 1800 rpm
• Horsepower: 1 hp
• Mounting Style: C-Face Footed
• Bearing Type: 6305ZZC3
• Frame: 143T
• Temperature Rating: 40 C Ambient
• Enclosure Type: TEFC
• Amperage Rating: 3.4/1.7 A
