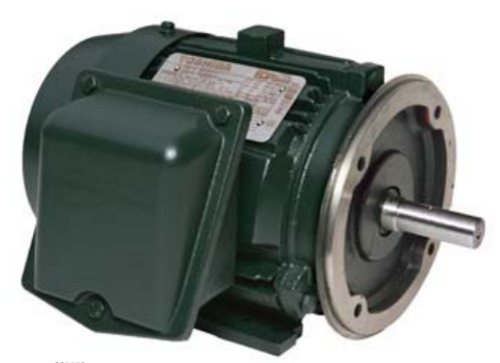

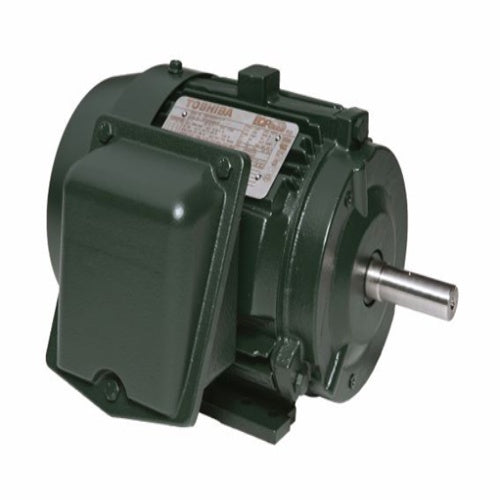

TOSHIBA 0012SDSR42H-P Electric Motor

Product Description

The TOSHIBA 0012SDSR42H-P is a three-phase electric motor designed for various applications. It features a totally enclosed fan-cooled (TEFC) enclosure, ensuring efficient operation and protection from external elements. This motor runs at a speed of three thousand six hundred revolutions per minute (RPM) and is built to consider premium efficiency. The durable cast iron frame provides reliable performance in both general purpose and severe duty applications.

• Totally Enclosed Fan Cooled (TEFC) enclosure
• Operates at three thousand six hundred RPM
• Cast iron construction for durability

Product Highlights

The TOSHIBA 0012SDSR42H-P electric motor is ideal for professionals requiring high efficiency and durable construction.

Product Information

Standard Information

• Brand: Toshiba
• Manufacturer Part #: 0012SDSR42H-P

Technical Specifications

• Motor Enclosure Type: Totally Enclosed Fan Cooled
• Motor Voltage Phases: 3 Phase
• Motor Horsepower: 1 HP
• Motor Frequency: 60 Hz
• Motor Voltage: 230/460 V
• Motor RPM: 3600 RPM
• Motor Frame Model: 56C
• Motor Amperage (Full Load): 2.8 Amp
• Weight: 48 lbs
• Mounting Design: C-Face With Feet (Non-Standard BA)
• NEMA: Premium Efficiency
• Service Factor: 1.15
