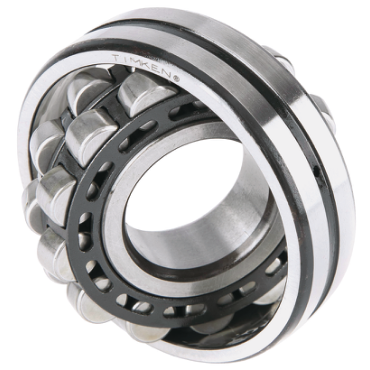

Torrington 22206EJW33C3 Double Row Unmounted Spherical Roller Bearing

Product Description

The Torrington 22206EJW33C3 is a double row unmounted spherical roller bearing. It is designed for various applications requiring reliable performance under demanding conditions.

• 1.181 inches inside diameter
• 2.441 inches outside diameter
• 0.787 inches overall width

Product Highlights

This bearing offers longer life and better performance due to optimized design and material use.

Product Information

Standard Information

• Brand: Torrington
• MPN: 22206EJW33C3

Technical Specifications

• I.D.: 1.181 inches, 30 mm
• O.D.: 2.441 inches, 62 mm
• Weight: 0.6 lb
• Bore Type: Cylindrical
• Cage Type: Stamped Window
• Component: Assembly
• No. of Rows: Double
• Bearing Type: Unmounted Roller Bearing
• Closure Type: Open
• Cage Material: Steel
• Overall Width: 0.787 inches, 20 mm
• Precision Class: ISO P0
• Roller Material: Steel
• Rolling Element: Spherical
• Inner Ring Width: 0.787 inches, 20 mm
• Outer Ring Width: 0.787 inches, 20 mm
• Internal Clearance: C3
• Outer Diameter Type: Cylindrical
• Shaft Fillet Radius [Max]: 0.04 inches, 1 mm
• Housing Fillet Radius [Max]: 0.04 inches, 1 mm
• EAN or UPC: 87796169425
