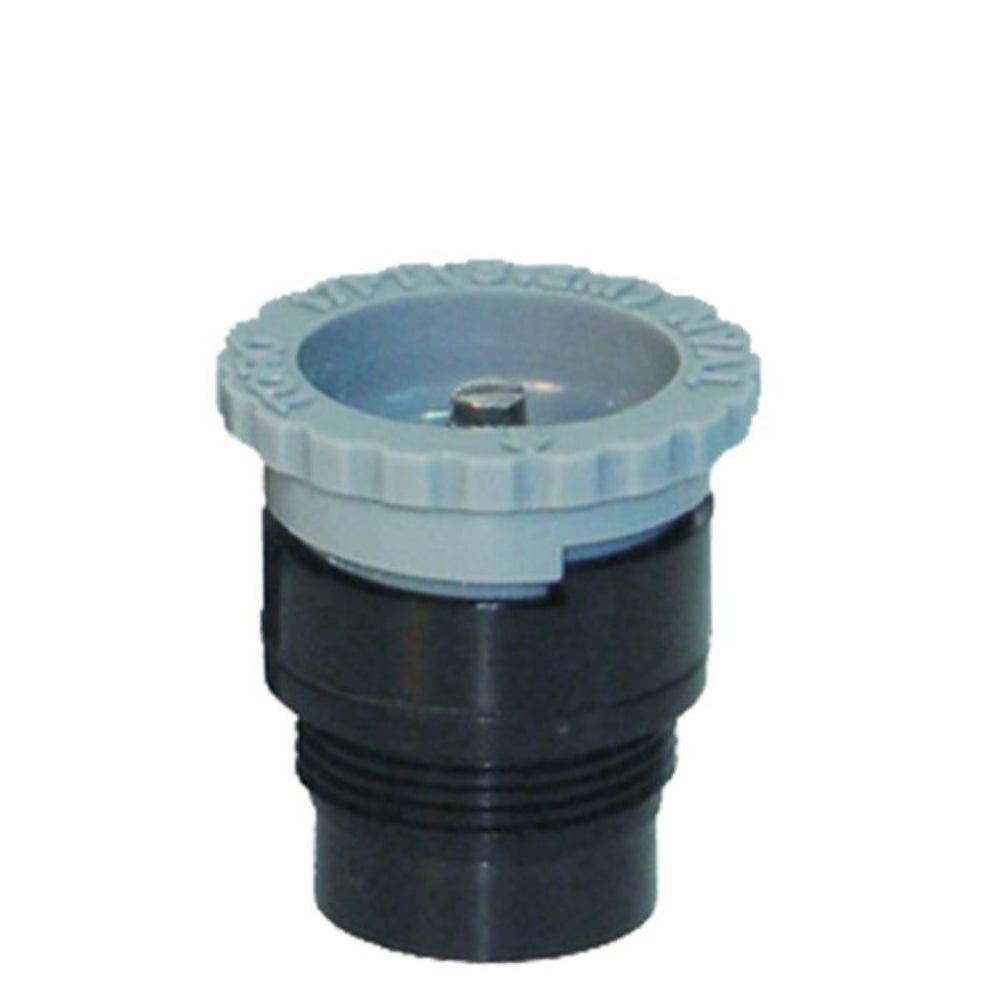

Toro TVAN17 Variable Arc Nozzle 17 Foot 0-360 Degree

Product Description

The TORO TVAN17 is a variable arc nozzle designed for use with pop-up spray head sprinklers in residential and light commercial irrigation systems. It delivers a fully adjustable arc pattern ranging from 0 to 360 degrees, allowing a single nozzle to cover a wide variety of zone shapes without swapping hardware. Rated for a throw radius of 17 feet, it provides consistent, uniform water distribution across the coverage area. Licensed irrigation technicians and experienced irrigation installers typically work with this nozzle during new system installation or seasonal head replacements.

The TVAN17 is suited for residential turf and landscape irrigation zones where spray head coverage is required. Its variable arc design makes it particularly useful in irregularly shaped beds or corner zones where fixed-arc nozzles would result in overspray or dry spots. The 0-to-360-degree adjustment range means one nozzle SKU can serve full-circle, half-circle, quarter-circle, and custom arc applications depending on the zone layout.

Key Features

• Variable arc adjustment from 0 to 360 degrees for flexible zone coverage
• 17-foot throw radius suitable for standard residential spray zones
• Compatible with pop-up spray heads that accept industry-standard nozzle threading
• Single nozzle replaces multiple fixed-arc nozzles, reducing inventory requirements
• Consistent precipitation rate supports uniform turf and landscape watering

Compatibility

Designed as an OEM-style replacement nozzle for residential and light commercial pop-up spray head sprinklers that accept standard nozzle inserts.

Installation Notes

Installation is typically performed by a licensed irrigation technician or qualified landscaping professional. Shut off the irrigation system controller and close the zone valve before removing or installing any nozzle. A flat-blade screwdriver is commonly used to adjust the arc setting after installation. Follow all local water authority guidelines and applicable irrigation codes when servicing or modifying an irrigation system.

Technical Specifications

• Throw Radius: 17 feet
• Arc Range: 0-360 degrees
• UPC: 090258047674
• Order Increment: 1

Standard Information

• Brand: TORO
• Manufacturer Part Number: TVAN17
