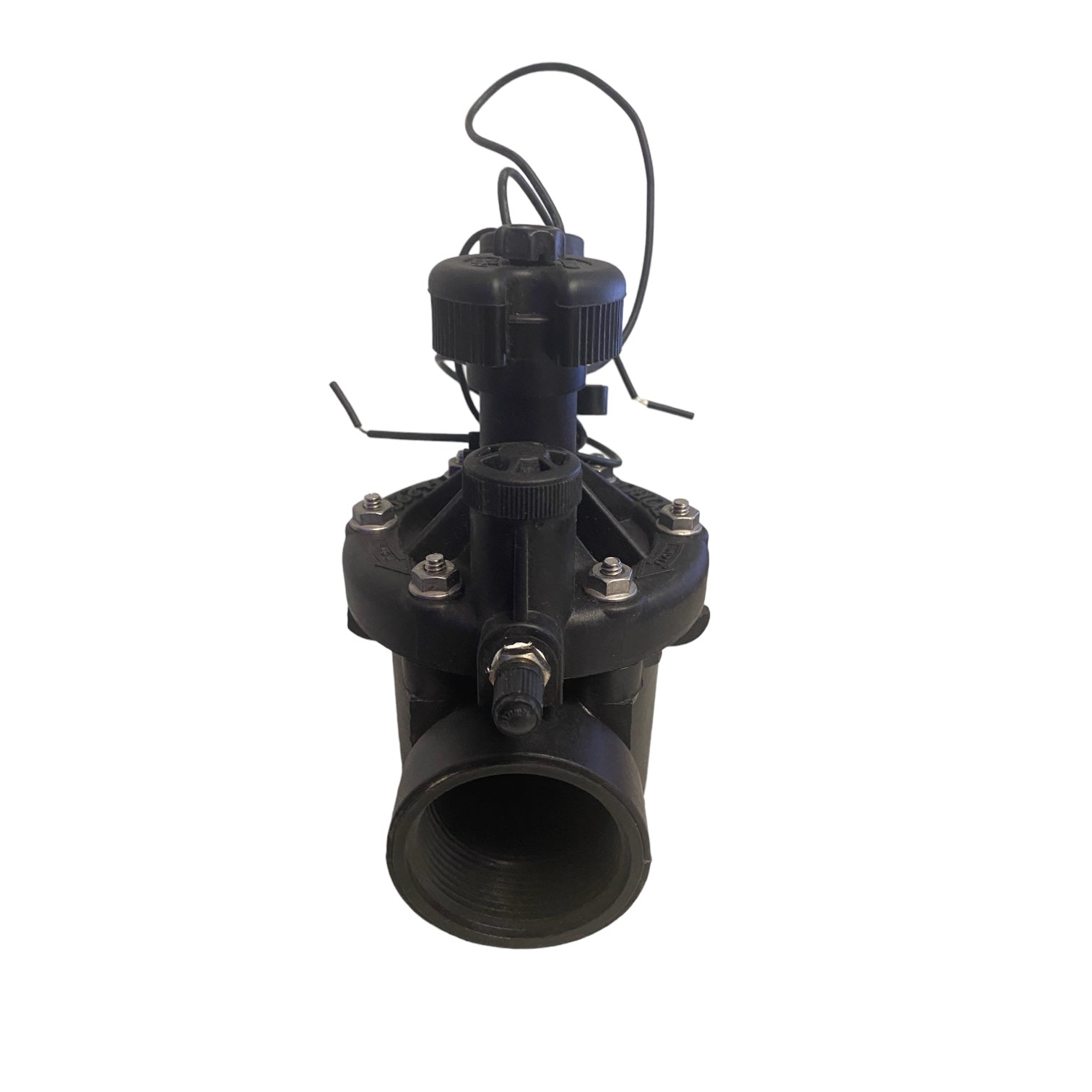

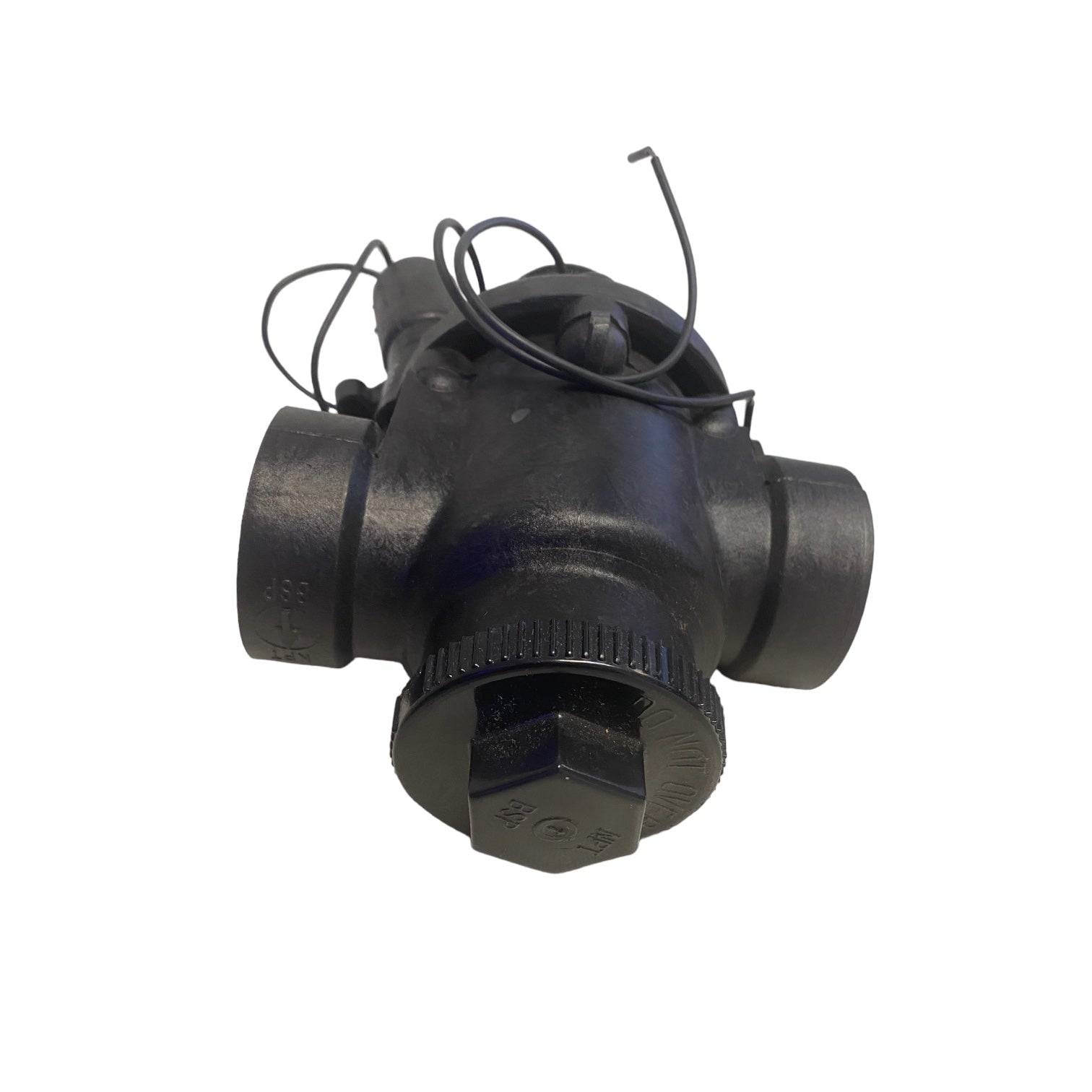

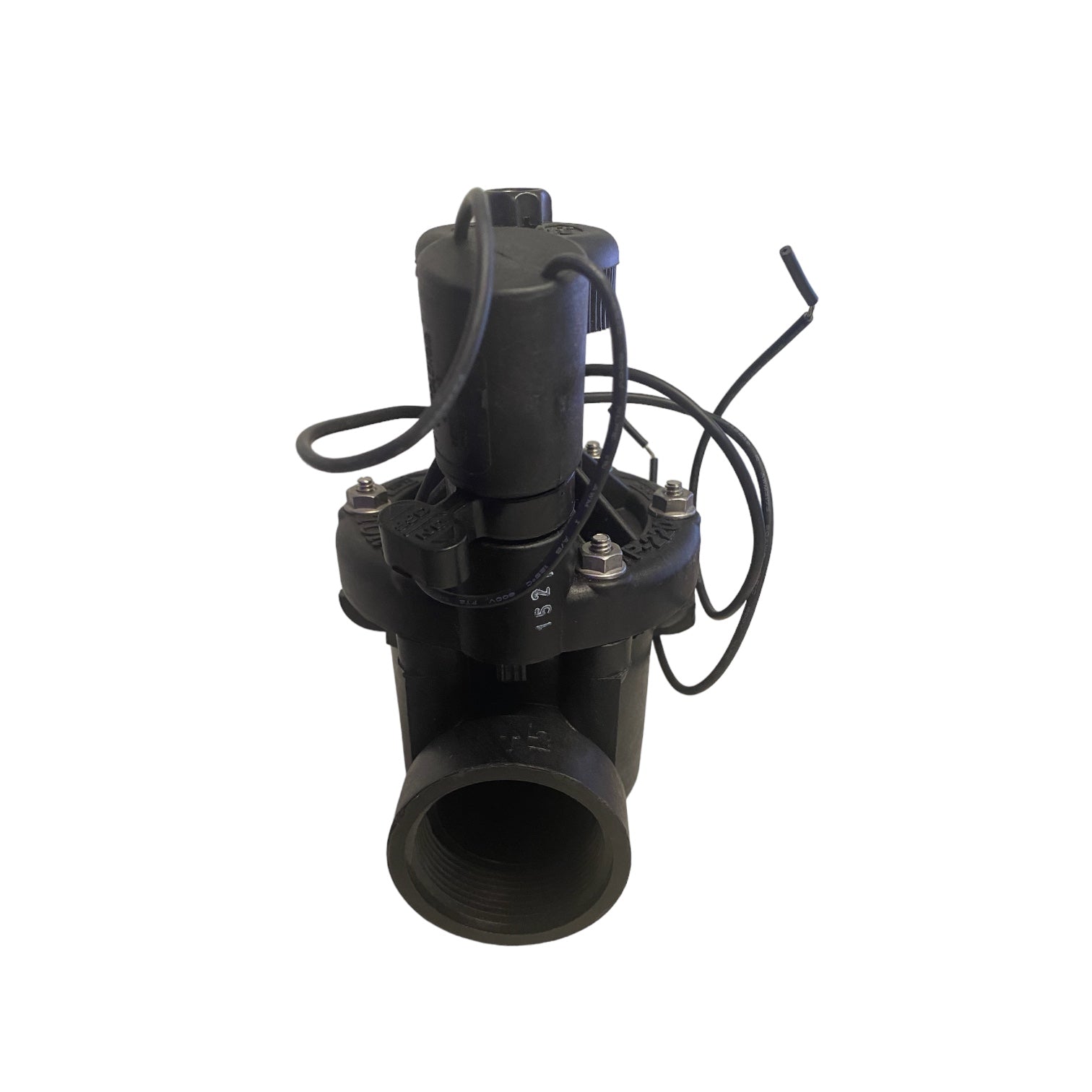

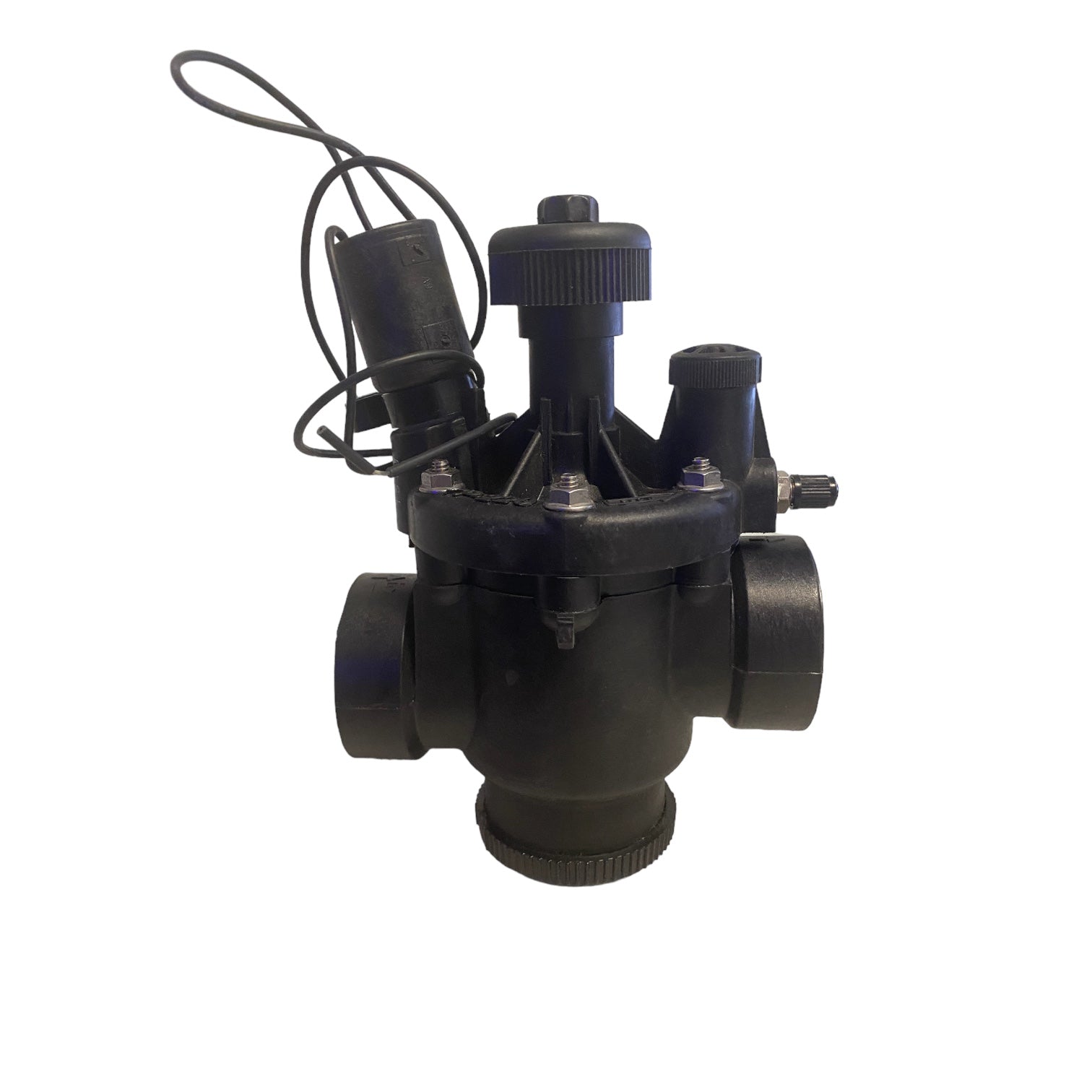

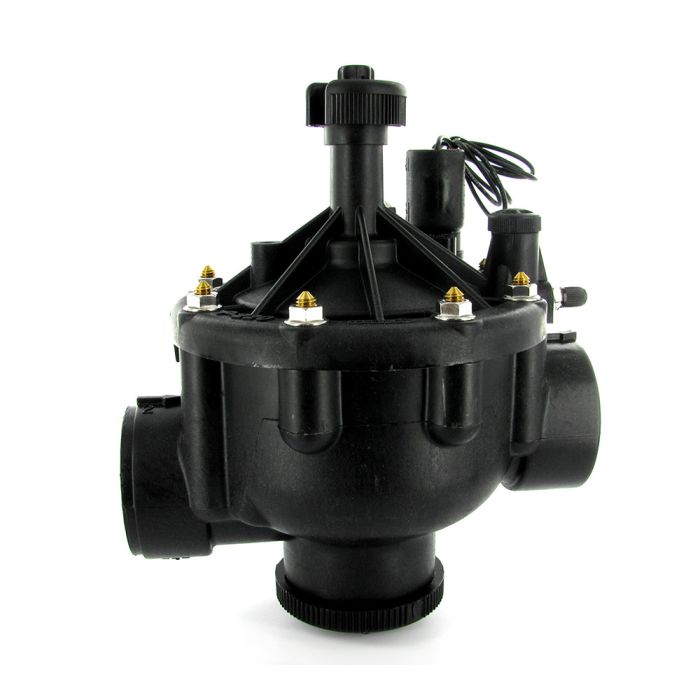

Toro P220S-26-08 Inline / Angle Valve with Scrubber and Flow Control 2 in. FPT

Product Description

The TORO P220S-26-08 is a heavy-duty glass-filled nylon valve designed for commercial applications with pressures up to 220 psi. It can pressure regulate flow from 5-100 psi. This valve is designed to handle chlorine, chloramine and other chemicals found in reclaimed and non-potable water systems.

• Durable glass-filled nylon construction
• Globe/Angle configuration
• Precise pressure control option with compact EZReg dial-design technology

Product Highlights

This valve features a rugged, reinforced bonnet design, ergonomic manual flow control, and a self-cleaning stainless steel metering rod.

Product Information

Standard Information

• Brand: TORO
• Manufacturer Part Number: P220S-26-08

Technical Specifications

• Brand: Toro
• Product Type: Angle Valves
• Body Material: Glass Filled Nylon
• Flow Control: Yes
• Valve Type: In-Line / Angle
• Connection: FPT
• Pressure Regulated: Yes
• Application: Commercial
• Solenoid: Yes
• Size: 2 in.
• Model: P220-26-08
• Pressure Rating: Up to 220 psi (15.2 bar)
• Burst Rating: 750 psi
• Flow Range: 80 to 180 gpm
• Inlet/Outlet: 2" NPT female x female (FNPT)
• Pressure Regulation: Adjustable regulation from 5 to 100 psi (0.34 to 6.89 bar) with EZReg option
• Connection Type: Fipt
• Connection Size: 2 in.
• Type: In-Line
• Series: P-220S Series
• Solenoid Type: AC
• Operating Type: Electric & Manual
• Maximum Flow Rate: 300 GPM
• Voltage Rating: 24V
• Minimum Flow Rate: 150 GPM
• Item: Electric Valve
• Minimum Operating Pressure: 20 PSI
• Maximum Operating Pressure: 220 PSI
• Connection 2 Size: 2 in.
• Connection 2 Type: Fipt
• Regulated: No
• Nominal: 2 in
• Pressure: 20 to 220 psi
• Voltage: 24 V
• Inrush: 0.4 A
• Holding: 0.2 A
• Frequency: 60 Hz
• Additional Information: Standard Solenoid
