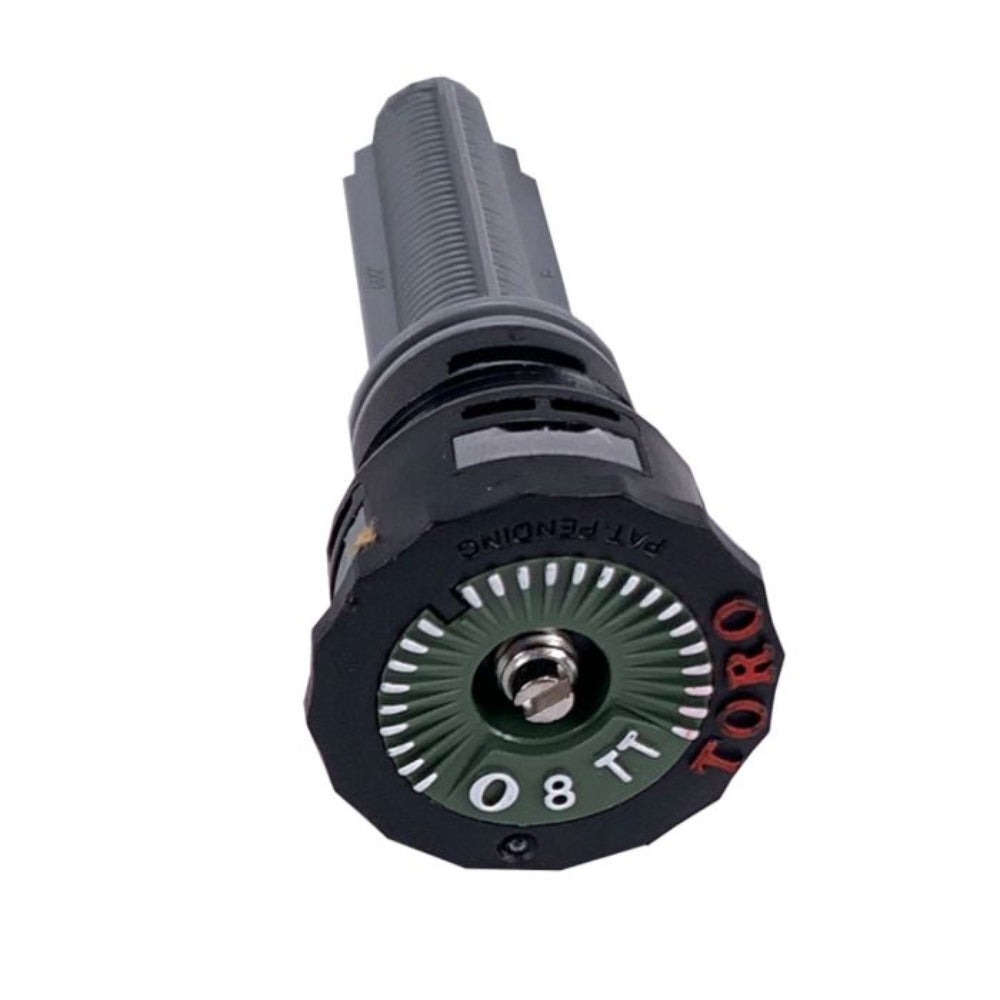

Toro O-T-8-TTP Pc Precision Nozzle 8 Foot 240 Degree

Product Description

The TORO O-T-8-TTP is a pressure-compensating (PC) precision nozzle designed for consistent, uniform water distribution in residential and light commercial irrigation systems. Built for an 8-foot throw radius with a 240-degree arc pattern, this nozzle delivers controlled output regardless of pressure fluctuations across the zone. It is intended for use in standard pop-up spray head bodies and is installed by irrigation contractors and landscape professionals during new construction or system retrofits.

This nozzle is suited for narrow or irregularly shaped turf and groundcover zones where a partial-circle pattern is required. The 240-degree arc covers wide side-strip and corner applications without overshooting hardscape or structures. Its pressure-compensating design helps maintain target precipitation rates even when inlet pressure varies across a multizone system, reducing dry spots and runoff on sloped or mixed-terrain installations.

Key Features

• 8-foot throw radius for precise short-range coverage
• 240-degree fixed arc for partial-circle spray pattern
• Pressure-compensating design maintains consistent output across varying inlet pressures
• Compatible with standard pop-up spray head bodies accepting industry-common nozzle threads
• Precision flow rate supports matched precipitation rate zoning

Compatibility

Designed as an OEM-style replacement or upgrade nozzle for residential and light commercial pop-up spray irrigation heads accepting standard nozzle inserts.

Installation Notes

Irrigation technicians should shut off the zone valve and relieve system pressure before removing the existing nozzle. Hand-tighten the nozzle into the spray body to avoid cross-threading — do not over-torque. After installation, cycle the zone and verify arc alignment and throw radius before final grade or mulch placement. Local irrigation codes and water authority guidelines may govern precipitation rate and scheduling requirements.

Technical Specifications

• Throw Radius: 8 feet
• Arc Pattern: 240 degrees
• Nozzle Type: Pressure-Compensating (PC) Precision
• UPC: 090258054849
• Order Increment: 1

Standard Information

• Brand: TORO
• Manufacturer Part Number: O-T-8-TTP
