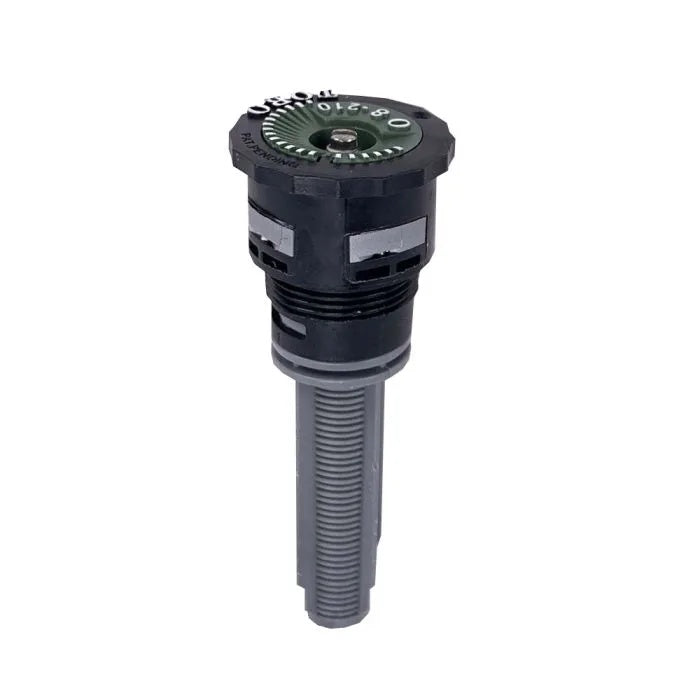

Toro O-T-8-210P Pc Precision Spray Nozzle 8ft 210deg

Product Description

The TORO O-T-8-210P is a pressure-compensating (PC) precision spray nozzle designed for residential and commercial irrigation systems. It delivers a consistent, uniform spray pattern across an 8-foot throw radius at a 210-degree arc, making it well suited for irregularly shaped turf areas and landscape beds where full-circle coverage would cause overspray onto hardscapes or structures. Pressure compensation helps maintain a steady output across a range of inlet pressures, reducing misting, fogging, and runoff associated with high-pressure conditions. Irrigation technicians and landscape professionals install this nozzle as part of a fixed-spray head assembly.

This nozzle is intended for use in fixed-spray irrigation zones where precise arc control is required. The 210-degree pattern fills the gap between a 180-degree half-circle and a 270-degree three-quarter-circle arc, allowing installers to match coverage to non-standard planting areas without wasting water. It is appropriate for both new irrigation installations and retrofit applications where existing nozzles need to be replaced with pressure-compensating models to improve system uniformity.

Key Features

• Pressure-compensating design maintains consistent flow rate across varying inlet pressures
• 8-foot throw radius for medium-range fixed-spray coverage
• 210-degree arc pattern suits irregular lot shapes and edge zones
• Precision spray stream reduces misting and wind drift
• Drop-in nozzle replacement compatible with standard fixed-spray head bodies

Compatibility

Designed as an OEM-style replacement nozzle for standard fixed-spray irrigation head bodies accepting interchangeable nozzle inserts.

Installation Notes

Installation is performed by a licensed irrigator or qualified landscape irrigation technician. Shut off the irrigation system water supply and depressurize the zone before removing or seating the nozzle. Hand-tighten the nozzle into the spray head body and verify the arc direction is correctly oriented to the target coverage area before backfilling or resuming system operation. Follow all applicable local water authority requirements and manufacturer torque guidance for the specific head body in use.

Technical Specifications

• Throw Radius: 8 feet
• Arc Pattern: 210 degrees
• Nozzle Type: Pressure-Compensating (PC) Precision Spray
• UPC: 090258056188
• Order Increment: 1

Standard Information

• Brand: TORO
• Manufacturer Part Number: O-T-8-210P
