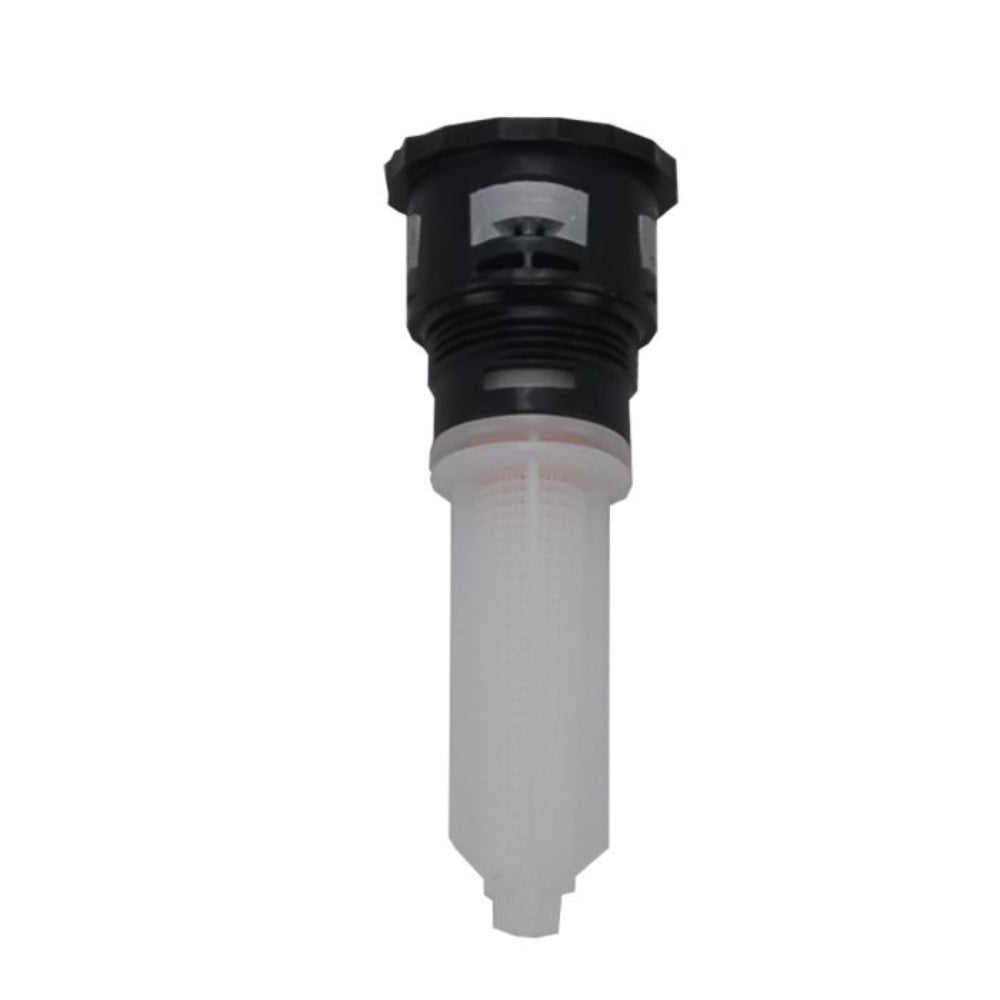

Toro O-T-12-FP Pc Precision Nozzle 12 Foot 360 Degree

Product Description

The TORO O-T-12-FP is a pressure-compensating (PC) precision nozzle designed for use in low-volume irrigation systems. It delivers a consistent, uniform spray pattern across a full 360-degree arc at a fixed radius of 12 feet, regardless of fluctuations in system pressure. The pressure-compensating design maintains steady output across a range of inlet pressures, reducing the risk of uneven watering caused by pressure variation across a zone. This nozzle is installed by irrigation technicians and landscape contractors as part of a pop-up spray head assembly in residential and light commercial turf and groundcover applications.

This nozzle is suited for full-circle coverage zones in residential lawn irrigation and light commercial landscapes. The 360-degree pattern covers a full radius of 12 feet, making it appropriate for center-of-zone placements where complete circular coverage is needed. It threads into compatible Toro pop-up spray head bodies as a matched-system component. The PC design is particularly useful in systems with elevation changes or long lateral runs where pressure at individual heads may vary from one end of a zone to the other.

Key Features

• Pressure-compensating design maintains consistent output across varying inlet pressures
• Full 360-degree spray arc for complete circular coverage
• 12-foot fixed radius matched to the labeled throw distance
• Designed for use with compatible Toro pop-up spray head bodies
• Low-volume precision output reduces runoff and overspray

Compatibility

Designed as an OEM-style nozzle for use with compatible Toro pop-up spray head bodies in residential and light commercial irrigation systems.

Installation Notes

Installation is performed by qualified irrigation technicians or landscape contractors. Shut off system water supply and depressurize the lateral line before removing or replacing nozzles. Nozzle thread engagement should be hand-tight to avoid cracking the nozzle or head body. Verify system operating pressure is within the nozzle's rated pressure-compensating range after installation to confirm proper output.

Technical Specifications

• Spray Pattern: 360 degrees
• Radius: 12 feet
• Nozzle Type: Pressure-Compensating (PC) Precision
• UPC: 090258054986
• Order Increment: 1

Standard Information

• Brand: TORO
• Manufacturer Part Number: O-T-12-FP
