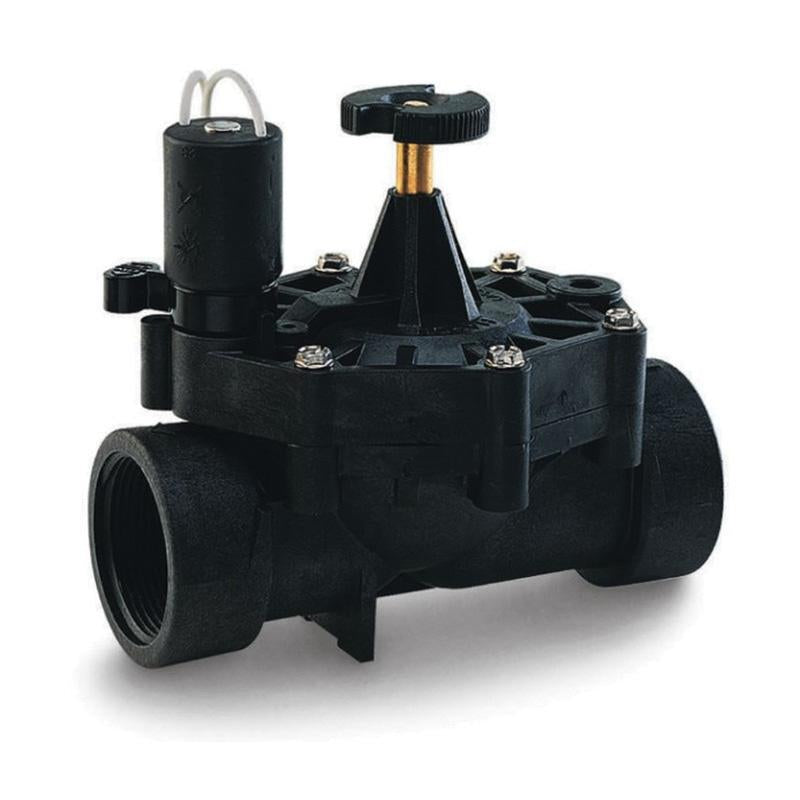

Toro 700-1.5 Irrigation Control Valve 1.5 Inch Plastic

Product Description

The TORO 700-1.5 is an electrically actuated irrigation control valve designed for use in pressurized water distribution systems. Built with a plastic body, this valve handles flow rates from 0.1 to 180 GPM and operates within a pressure range of 10 to 150 psi, making it suitable for a wide range of zone sizes and system demands. The 1.5-inch nominal port size accommodates substantial flow capacity for larger irrigation zones. At 0.48 amps, the solenoid draws standard low-voltage current compatible with conventional irrigation controllers. Licensed irrigation contractors and experienced landscape technicians are the primary installers of this valve.

This valve is used in residential and light commercial irrigation systems where automated zone control is required. The 1.5-inch nominal size is well suited for mainline branches feeding multiple heads or larger rotor zones that require higher flow volume. It is typically installed in valve boxes at grade level as part of a multi-zone drip, spray, or rotor irrigation system. Its pressure range supports most municipal and pump-fed supply configurations commonly found in landscape irrigation applications.

Key Features

• 1.5-inch nominal port size for high-flow zone control
• Flow rate range of 0.1 to 180 GPM accommodates both low-volume drip and high-demand rotor zones
• Operating pressure range of 10 to 150 psi suits a broad range of supply conditions
• Plastic body construction resists corrosion in soil and moisture-rich environments
• 0.48-amp solenoid draw is compatible with standard low-voltage irrigation controllers

Compatibility

Designed as an OEM-style replacement or new-installation control valve for pressurized irrigation systems requiring a 1.5-inch nominal electrically actuated zone valve.

Installation Notes

Installation should be performed by a licensed irrigation contractor or qualified landscape professional familiar with local plumbing and irrigation codes. Shut off the water supply and depressurize the system before making any connections. Ensure solenoid wiring is connected to a compatible low-voltage irrigation controller and that all wire connections are made with waterproof wire connectors rated for direct burial. Do not exceed the rated pressure of 150 psi or allow flow rates to fall outside the specified operating range during system operation.

Technical Specifications

• Nominal Size: 1.5 inches
• Flow Rate: 0.1 to 180 GPM
• Operating Pressure: 10 to 150 psi
• Solenoid Current Draw: 0.48 amps
• Body Material: Plastic

Standard Information

• Brand: TORO
• Manufacturer Part Number: 700-1.5
