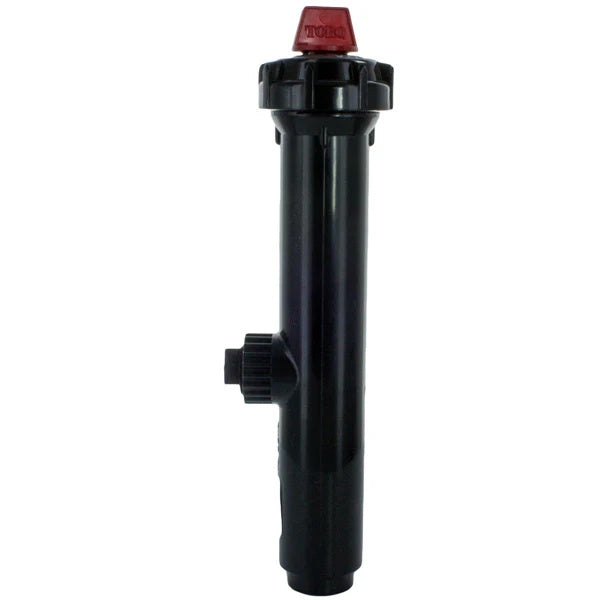

Toro 570Z-6SI-PRX 6 in Pop-up Sprinkler Side Inlet 30 Psi

Product Description

The TORO 570Z-6SI-PRX is a 6-inch pop-up sprinkler body engineered for in-ground irrigation systems where consistent, regulated water distribution is required. This body features a side-inlet port, allowing for flexible pipe routing in tight or retrofit installations. The integrated 30 psi pressure regulator limits downstream pressure at the head, protecting nozzles from misting and reducing water waste caused by excessive flow. Irrigation contractors and landscape professionals install this type of body in residential and light commercial turf and planting bed zones where pressure regulation at the head level is the preferred approach over zone-level regulators.

This sprinkler body is suited for use in underground drip conversion zones and traditional spray-head zones where side-inlet connections are preferred over bottom-inlet configurations. The 6-inch pop-up height provides adequate clearance for turf grass applications where the nozzle must clear the canopy. It accepts standard Toro and compatible spray nozzles, and the side-inlet design accommodates lateral pipe connections without elbows or offset fittings in many installations. Typical applications include residential lawn systems, commercial landscape perimeter zones, and retrofit projects where existing piping positions favor a side-inlet body.

Key Features

• 6-inch pop-up height for adequate clearance over maintained turf
• Side-inlet port for flexible lateral pipe routing without additional fittings
• Integrated 30 psi pressure regulator built into the body to reduce misting and nozzle wear
• Accepts standard spray nozzles compatible with the 570Z series body platform
• Pressure-regulated design supports water conservation and system efficiency

Compatibility

Designed as an OEM-style replacement or new-installation sprinkler body compatible with standard spray nozzles used in residential and light commercial in-ground irrigation systems.

Installation Notes

Irrigation technicians should shut off the zone valve and relieve system pressure before replacing or installing this sprinkler body. The side-inlet port should be oriented to align with the lateral pipe before backfilling to avoid stress on the connection. Refer to local plumbing and irrigation codes for burial depth and thrust block requirements. Do not overtighten the nozzle onto the body seat, as over-torquing can damage the wiper seal and reduce pop-up performance.

Technical Specifications

• Pop-Up Height: 6 inches
• Inlet Configuration: Side Inlet
• Integrated Pressure Regulator: 30 psi
• UPC: 090258037316
• Order Increment: 1

Standard Information

• Brand: TORO
• Manufacturer Part Number: 570Z-6SI-PRX
