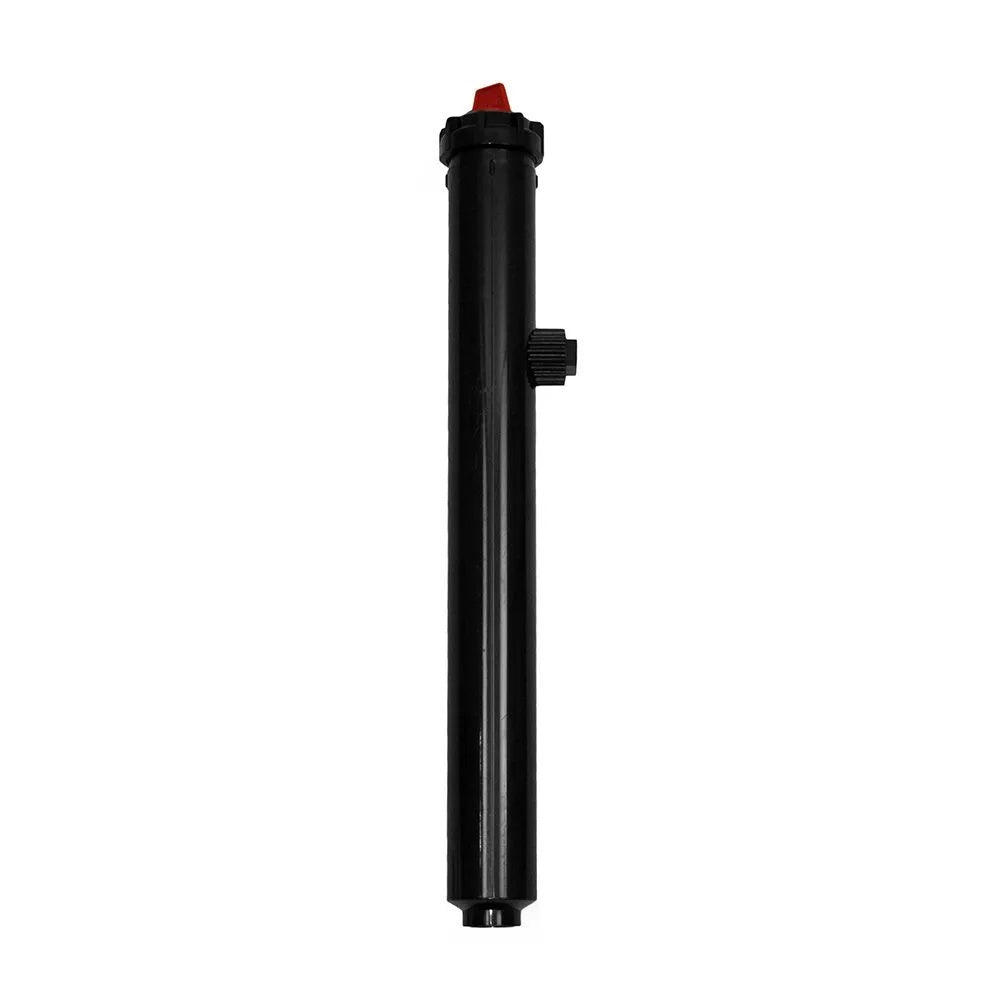

Toro 570Z-12SI-PRX 12 in Pop-up Spray Head 30 Psi

Product Description

The TORO 570Z-12SI-PRX is a 12-inch pop-up spray head body designed for in-ground irrigation systems. It features a side-inlet connection and an integrated 30 psi pressure-regulating module, which limits operating pressure at the head to protect nozzles and reduce misting. The XF designation indicates this body is compatible with Toro's extra-low-flow nozzle series. Licensed irrigation contractors and landscape professionals typically specify this body where water conservation requirements or high-pressure supply lines make pressure regulation at each head a practical necessity.

This spray body is suited for residential and light commercial turf and landscape bed zones. The side-inlet configuration allows lateral piping to feed directly into the body from the side rather than from below, which simplifies installation in retrofit situations or shallow-pipe applications where a bottom-inlet layout is not practical. It is designed for use with standard 570-series nozzles, including matched-precipitation and variable-arc models commonly used in zone layouts requiring uniform distribution.

Key Features

• 12-inch pop-up height accommodates taller turf and ground cover applications
• Integrated 30 psi pressure regulator limits outlet pressure at the head to reduce misting and fogging
• Side-inlet body design supports retrofit and shallow lateral pipe installations
• Compatible with Toro XF extra-low-flow nozzles for water-conservation irrigation designs
• 570-series body accepts a wide range of matched-precipitation and fixed-arc nozzles

Compatibility

Designed as an OEM-style component within the Toro 570-series spray head platform, compatible with standard 570-series nozzles including XF low-flow models.

Installation Notes

Installation should be performed by a licensed irrigation technician in accordance with local plumbing and landscape irrigation codes. Shut off the irrigation system water supply and relieve line pressure before making any connections. The side-inlet port must be oriented toward the supply lateral during installation; cap any unused ports securely. Avoid overtightening fittings on the inlet to prevent body distortion that could affect the pressure-regulating mechanism.

Technical Specifications

• Pop-Up Height: 12 inches
• Regulated Outlet Pressure: 30 psi
• Inlet Configuration: Side inlet
• Nozzle Compatibility: Toro 570-series, XF low-flow series
• UPC: 090258037361

Standard Information

• Brand: TORO
• Manufacturer Part Number: 570Z-12SI-PRX
