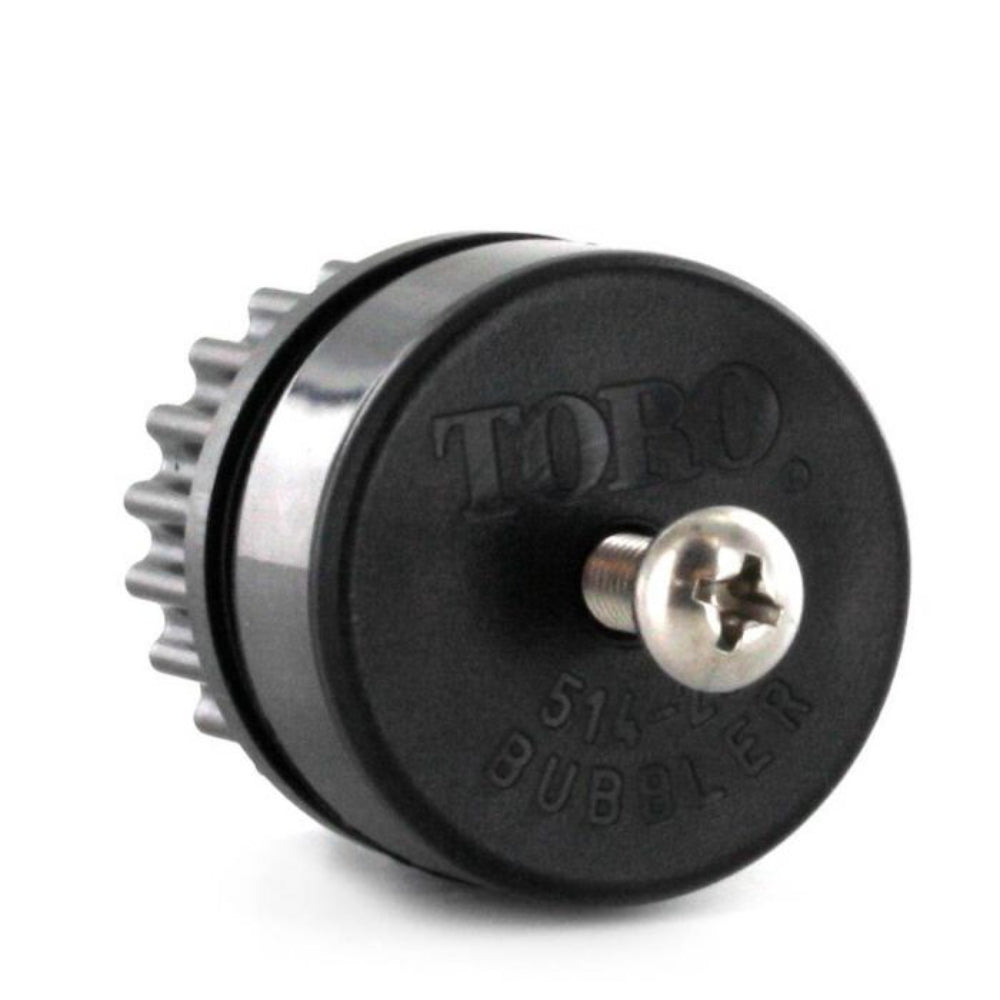

Toro 514-20 Adjustable Flood Bubbler 1/2 Inch Fipt

Product Description

The TORO 514-20 is an adjustable flood bubbler designed for low-volume, surface-level irrigation delivery. It threads into a standard 1/2-inch female iron pipe thread (FIPT) fitting, making it compatible with common irrigation lateral lines and risers. The adjustable design allows technicians and irrigation installers to dial in flow rate on the head without swapping nozzles, reducing service time at each station. This type of bubbler is typically installed in landscaped beds, tree rings, and shrub zones where controlled, gentle flooding at the root zone is preferred over spray distribution.

Flood bubblers like the 514-20 are used in residential and commercial landscape irrigation systems where slow, targeted water delivery minimizes runoff and soil disturbance. The 1/2-inch FIPT inlet threads directly onto a standard riser or swing joint, fitting into existing drip and low-volume zone configurations. Irrigation contractors and landscape maintenance professionals install these units as part of drip-conversion projects or new low-volume zone builds.

Key Features

• Adjustable flow rate allows on-head calibration without nozzle changes
• 1/2-inch FIPT inlet threads onto standard risers and swing joints
• Flood-style delivery minimizes runoff and distributes water at the root zone
• Compact bubbler form factor suits shrub beds, tree rings, and ground cover zones

Compatibility

Designed as an OEM-style replacement or new-installation bubbler for residential and commercial low-volume irrigation systems using 1/2-inch FIPT riser or swing-joint connections.

Installation Notes

Installation is performed by licensed irrigation contractors or qualified landscape irrigation technicians. Shut off the irrigation zone and relieve line pressure before threading the bubbler onto the riser. Use thread seal tape on the FIPT connection to ensure a leak-free joint. Verify local codes for low-volume irrigation system requirements, as some jurisdictions mandate pressure-regulating components on drip and bubbler zones.

Technical Specifications

• Inlet Connection: 1/2 inch FIPT
• Flow Adjustment: Adjustable
• Emission Type: Flood bubbler
• UPC: 090258014195

Standard Information

• Brand: TORO
• Manufacturer Part Number: 514-20
