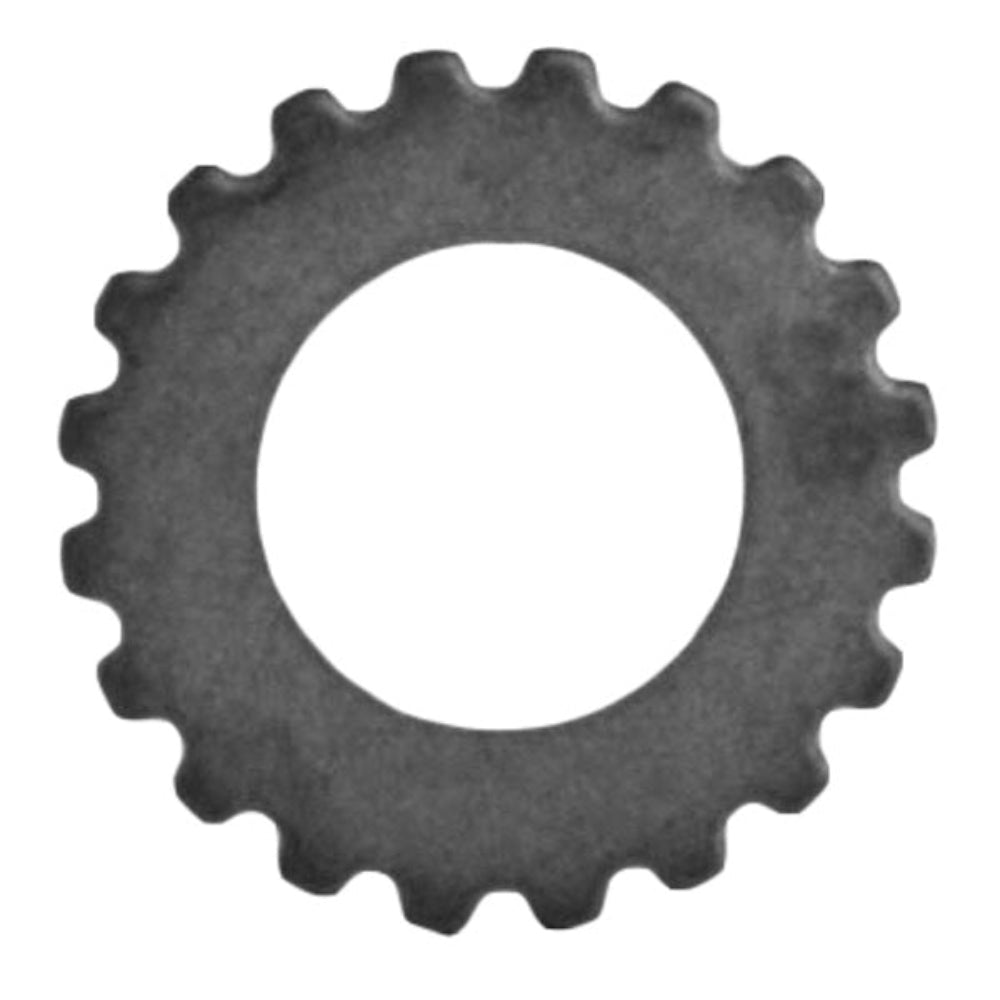

Toro 316-00 360 Degree Arc Plate 300 Series

Product Description

The TORO 316-00 is a 360-degree arc plate designed for use with the Toro 300 Series irrigation heads. This component sets the rotational arc of the sprinkler head, locking it into a full 360-degree pattern for applications that require complete circular coverage. The arc plate is an internal part that irrigation professionals and landscape contractors replace during routine maintenance or when resetting coverage zones. It works within the sprinkler body to control rotor movement with precision, making it a reliable service part for established irrigation systems.

This arc plate fits within the Toro 300 Series rotor platform, which is commonly installed in residential and light commercial turf irrigation systems. It is typically used in situations where a head has been converted from a partial arc to a full-circle pattern, or where the existing arc plate has worn or been damaged. Irrigation technicians access this part during seasonal startups, zone adjustments, or head rebuilds.

Key Features

• Sets a fixed 360-degree full-circle arc pattern for complete zone coverage
• Designed specifically for the Toro 300 Series rotor platform
• Direct OEM-style replacement for worn or damaged arc plates
• Allows field conversion of partial-arc heads to full-circle operation
• Ordered individually with no minimum quantity requirement

Compatibility

Designed for use with Toro 300 Series irrigation rotors requiring a 360-degree arc configuration.

Installation Notes

Installation is performed by licensed irrigation technicians or qualified landscape professionals. Shut off the irrigation zone and relieve system pressure before disassembling the rotor head. Follow the Toro 300 Series service guide for proper arc plate seating and cap reassembly. Verify arc setting and rotation direction after restoring water pressure to the zone.

Technical Specifications

• Arc: 360 degrees
• Series: 300 Series
• Order Increment: 1
• UPC: 090258009382

Standard Information

• Brand: TORO
• Manufacturer Part Number: 316-00
