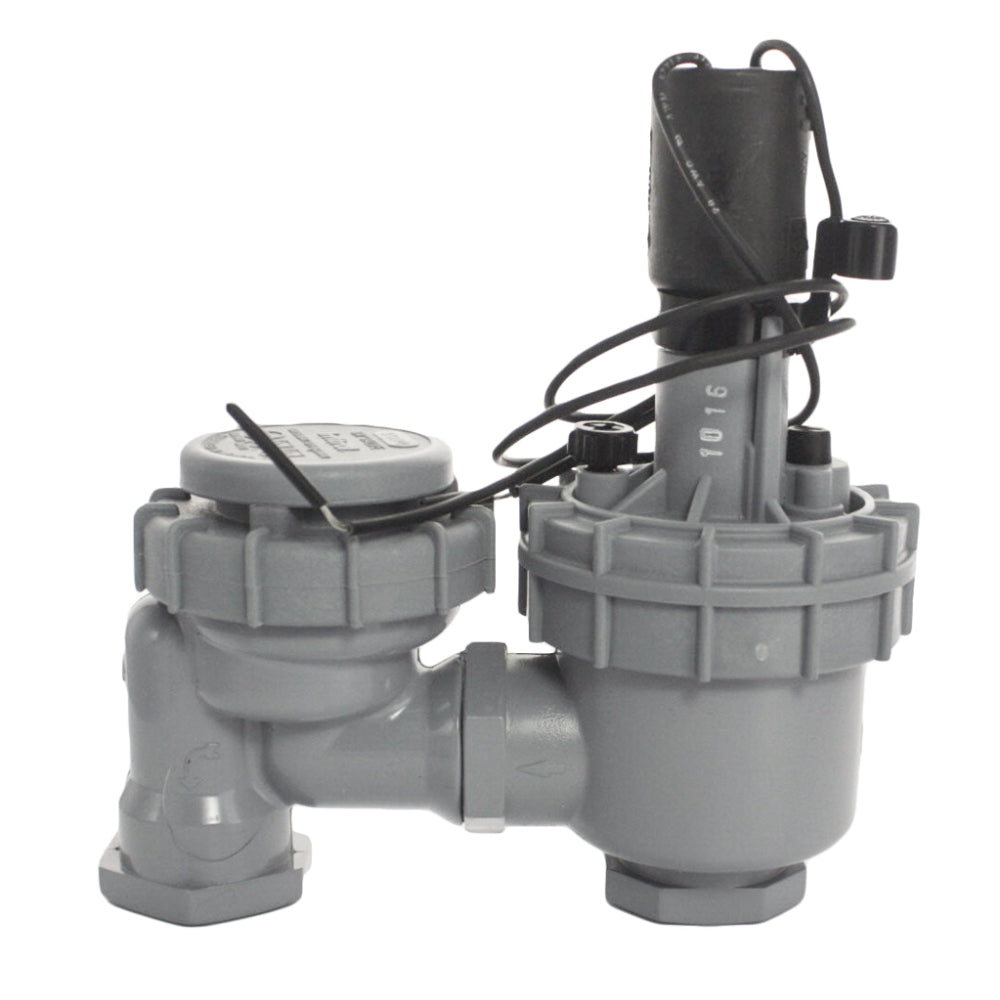

Toro 2711DPR Anti-siphon Valve 0.75 Inches Plastic

Product Description

The TORO 2711DPR is a 3/4-inch plastic anti-siphon valve (ASV) with a threaded bonnet, designed for residential and light commercial irrigation systems. Anti-siphon valves prevent backflow by stopping contaminated water from reversing into the potable supply line, making this a code-required component in many jurisdictions. The threaded bonnet allows for straightforward field service without replacing the entire valve body. Irrigation technicians and licensed plumbers install this valve on zone control lines where local codes mandate backflow prevention at the point of connection.

This valve is suited for in-ground sprinkler and drip irrigation systems where the valve must be installed above the highest sprinkler head in the zone. The plastic body resists corrosion in soil-contact and wet environments. It is commonly installed in residential yard irrigation systems, park irrigation, and light commercial landscape applications where a compact, durable ASV is required at each zone valve position.

Key Features

• 3/4-inch connection size for standard residential irrigation zone lines
• Integrated anti-siphon design provides built-in backflow prevention
• Plastic construction resists corrosion in buried and exposed outdoor installations
• Threaded bonnet allows field servicing and diaphragm replacement without full valve swap

Compatibility

Designed as an OEM-style replacement or new-installation anti-siphon valve for 3/4-inch threaded irrigation zone piping in residential and light commercial systems.

Installation Notes

Installation should be performed by a licensed irrigator or plumber in accordance with local plumbing and irrigation codes. Shut off the main water supply and depressurize the line before installing or servicing the valve. The valve must be mounted a minimum height above the highest downstream sprinkler head as required by applicable backflow prevention codes. Do not install below grade or in an inverted orientation, as the anti-siphon function depends on correct vertical positioning.

Technical Specifications

• Connection Size: 0.75 inches
• Body Material: Plastic
• Bonnet Type: Threaded
• Valve Type: Anti-Siphon Valve (ASV)
• UPC: 090258044246

Standard Information

• Brand: TORO
• Manufacturer Part Number: 2711DPR
