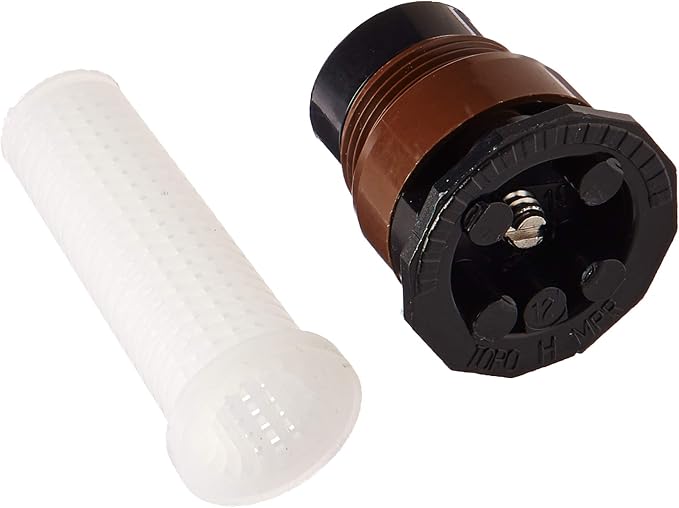

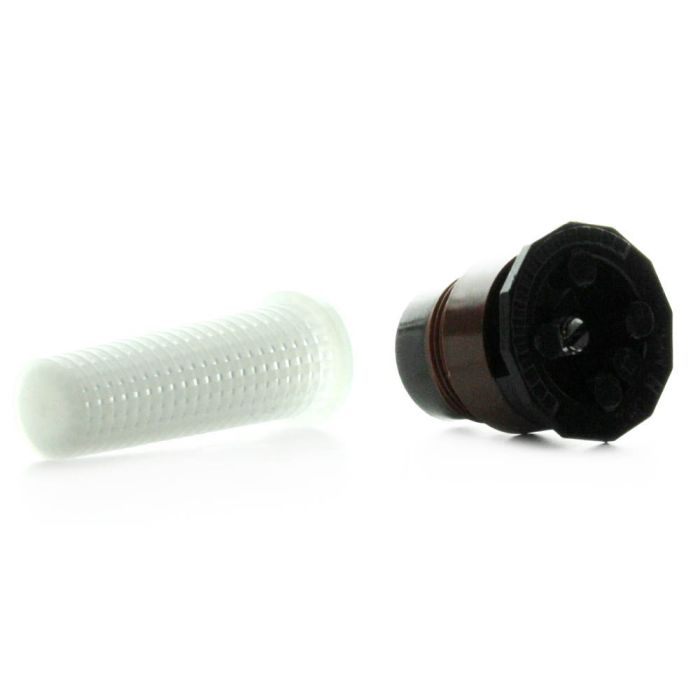

Toro 12t-h mpr plus spray nozzle 12 ft. 89-1773

Product Description

The TORO 12T-H MPR Plus Spray Nozzle is designed for efficient and flexible irrigation systems. This nozzle ensures matched precipitation rates, applying water evenly across the landscape. It features a pre-installed pressure compensation disc that eliminates misting and conserves water. An adjustment screw allows up to 25% radius reduction and complete shutoff.

• Matched precipitation rates ensure even water distribution.
• Pre-installed pressure compensation disc eliminates excessive misting.
• Adjustment screw allows up to 25% radius reduction.

Product Highlights

The TORO MPR Plus nozzle simplifies system design with matched precipitation rates and pressure compensation for efficient watering.

Product Information

Standard Information

• Brand: TORO
• Manufacturer Part Number: 12T-H

Technical Specifications

• Brand: Toro
• Product Type: Spray Nozzles
• Max PSI: 50 PSI
• Operating PSI: 20 - 50 PSI
• Spray Pattern: Half Circle
• Connection: Male
• Spray Radius: 12 ft
• Flow Rate: 0.95 - 1.55 GPM
• Material: Metal
• Exterior Finish: Stainless Steel
• Inlet Connection Type: Male Thread
• Outlet Connection Type: Male Thread
• Number of Ports: 2
• Outlet Connection Size: 0.5 Inches
• Manufacturer: Toro
• Thread Size: 1/2 inch
• Thread Type: Male
• Department: IRRIGATION
• Application: Landscaping,Lawn,Outdoor
• Channel: Construction Channel
