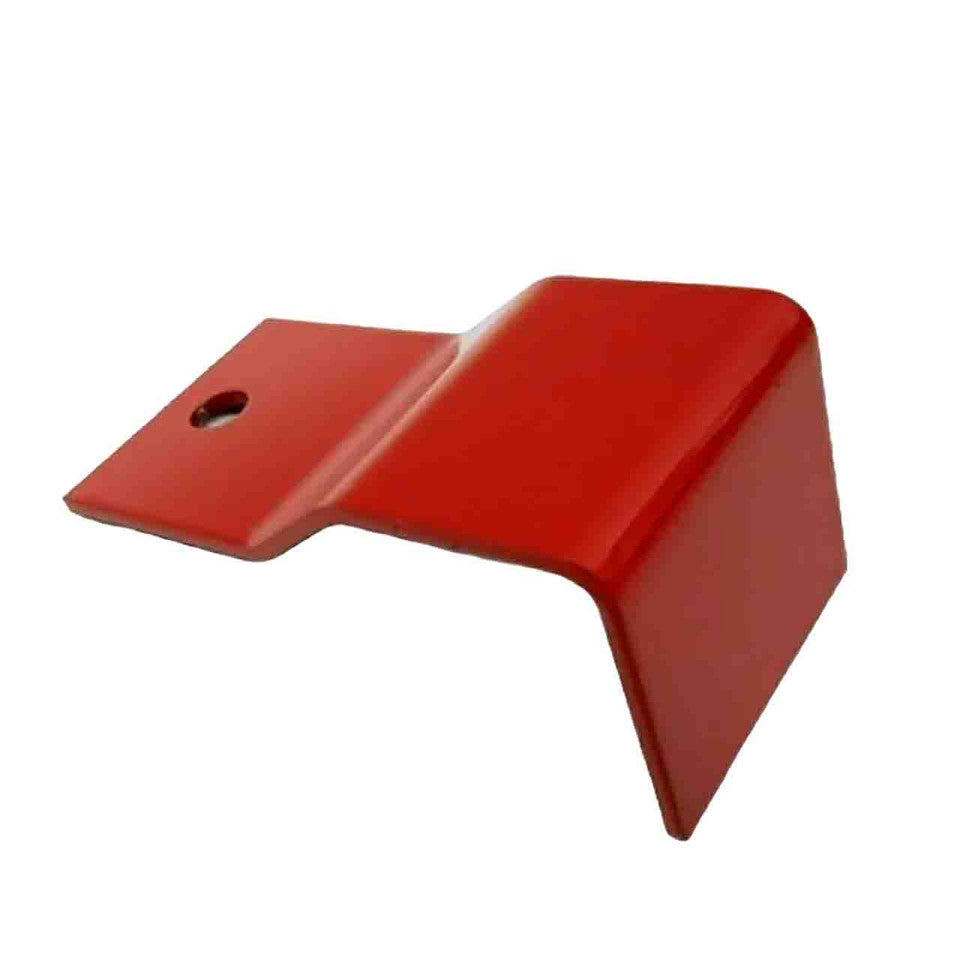

Toro 108-7220-01 Belt Guide

Product Description

The TORO 108-7220-01 is a belt guide replacement part designed to maintain proper belt alignment on Toro outdoor power equipment. The belt guide keeps the drive belt tracking correctly during operation, reducing wear on both the belt and adjacent drive components. Proper belt alignment is critical for consistent power transfer to cutting decks or drive systems. This part is installed by equipment technicians and service professionals performing drivetrain maintenance or belt replacement on Toro lawn and garden equipment.

The 108-7220-01 belt guide is a direct-fit replacement intended for use in Toro lawn and garden equipment where belt guidance components are required. It is typically serviced as part of a drive belt replacement procedure or when belt tracking issues are identified during routine inspection. Installation is suited for small engine equipment technicians and experienced outdoor power equipment service professionals.

Key Features

• Direct OEM-style replacement for Toro belt guide applications
• Maintains proper drive belt tracking and alignment during operation
• Reduces premature belt wear caused by belt misalignment
• Part of a routine drivetrain service or belt replacement procedure

Compatibility

Designed as an OEM-style replacement belt guide for Toro lawn and garden power equipment requiring part number 108-7220-01.

Installation Notes

Belt guide replacement should be performed by a qualified small engine or outdoor power equipment technician. Disconnect the spark plug wire and ensure all moving parts have come to a complete stop before beginning service. Use standard hand tools appropriate for the equipment make and model. Inspect the drive belt for wear or damage any time the belt guide is serviced, and replace both components together if warranted.

Technical Specifications

• Part Type: Belt Guide

Standard Information

• Brand: TORO
• Manufacturer Part Number: 108-7220-01
