Product Description

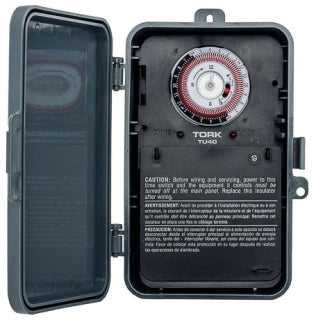

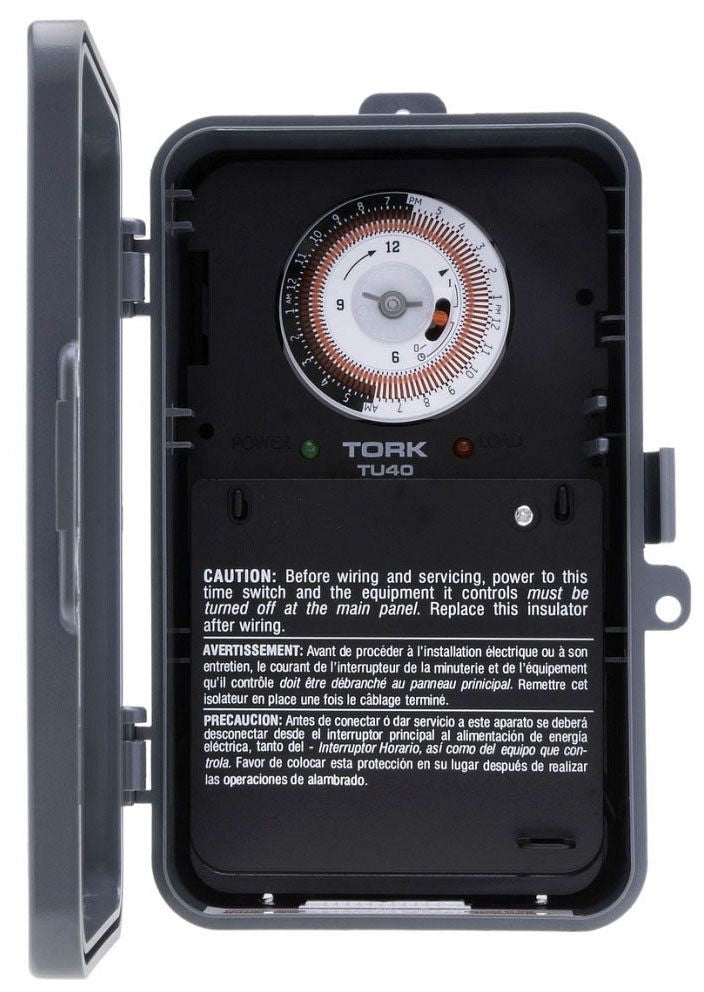

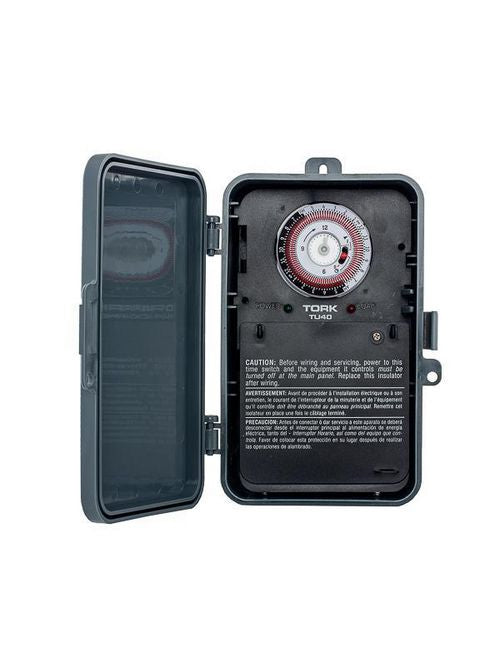

The Tork TU40 is a 120/277 VAC 60 Hz 40 Amp NEMA 3R 24 Hour DPDT electromechanical time switch. Designed for various applications, this time switch is durable and reliable. It is ideal for controlling lighting, pumps, signs, fans, air conditioning, and water heaters.
- Rated for 40 Amperes, making it suitable for heavy loads.
- NEMA 3R enclosure allows for outdoor installation.
- Automatic input voltage detection with no DIP switch settings.
Product Highlights
This time switch provides 24-hour control with a real-time clock and captive trippers.
Product Information
Standard Information
-
Brand: Tork
-
Type: 24 Hr
-
Model: Series TU40
Technical Specifications
-
Voltage Rating: 120 to 277 VAC at 60 Hz
-
Current Rating: 40 Ampere (NO), 30 Ampere (NC)
-
Power Rating: 1 HP (NO), 1/4 HP (NC) at 120 VAC
-
Operating Temperature: -31 to 116 Deg F
-
Enclosure: NEMA 3R
-
Mounting: Enclosure, Screw
-
Size: 5.625 Inch L x 4.5 Inch W x 8.312 Inch H
-
Maximum Number of Operations: 48 per Day
-
Minimum ON Time: 15 Min
-
Minimum OFF Time: 15 Min
-
Approval: UL 60370/917, UL (Canada and US)
