TORK Tork 8004 Duty Cycle Skip-A-Day On/Off Mechanical Time Switch 0.75 hp (24 hr)
TORK Tork 8004 Duty Cycle Skip-A-Day On/Off Mechanical Time Switch 0.75 hp (24 hr)

Tork 8004 Duty Cycle Skip-A-Day On/Off Mechanical Time Switch 0.75 hp (24 hr)

Brand: TORK
SKU: 8004
Availability: In Stock

Ships same day if ordered by 12 pm
$263.06
$263.06
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

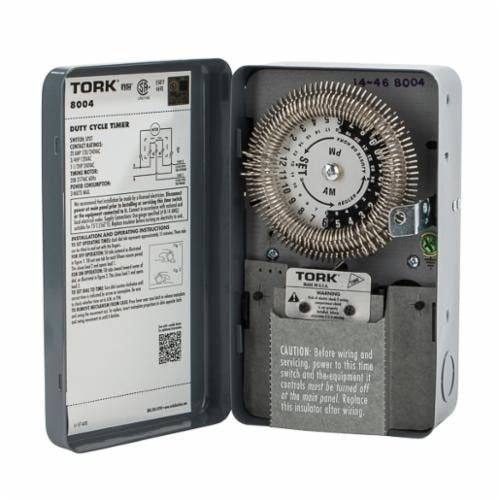

Tork 8004 is a duty-cycle Skip-A-Day mechanical on/off time switch that provides 24-hour operation with a 96-tab dial and adjustable time ranges. It operates on 208 to 277 VAC, uses SPDT contacts rated 20 A (up to 0.75 hp), and includes a lockable metal NEMA 1 indoor enclosure. Settings include a 15-minute minimum on/off, selectable intervals from 1/2 to 24 hours, and 14 to 8 AWG terminals.

  • Duty-cycle Skip-A-Day 24-hour mechanical timer with 96 captive tabs and 15-minute minimum on/off
  • Operates on 208 to 277 VAC with SPDT contact rated 20 A and 0.75 hp
  • Lockable metal NEMA 1 indoor enclosure, threaded mounting, terminals accept 14 to 8 AWG

Product Highlights

24-hour skip-a-day mechanical timer; 208–277 VAC; 20 A SPDT; NEMA 1 lockable enclosure

Product Information

Standard Information

  • Brand: TORK
  • Manufacturer Part Number: 8004
  • Country of Origin: United States
Technical Specifications
Brand
Tork
Manufacturer Part Number
8004
Series
8000
Type
Duty Cycle Skip-A-Day On/Off Mechanical Time Switch
Operation Mode
24 hr
Time Setting
24 hr (96-tab dial)
Adjustable Time Ranges
1/2, 1, 2, 3, 4, 6, 12, 24 hours
Minimum On/Off Setting
15 minutes
Input Voltage
208 to 277 VAC
Amperage Rating
20 A
Horsepower
0.75 hp
Contact Form
SPDT
Number of Poles
1
Mounting Type
Threaded
Enclosure Type
NEMA 1 (lockable metal indoor enclosure)
Terminal Range
14 to 8 AWG
Power Consumption
3 or 5 W
Dimensions
4.687 in L x 2.937 in W x 7.937 in H
Operating Temperature
-40 to 165 °F
Standards & Approvals
ARRA; Buy American Act compliant; UL Listed; CSA Certified
Application
Duty cycling, ventilating fans, pumping, irrigation, process control, laboratory control
