Tork 7100 120 Vac 40 Amp 24 Hour Metal SPST Time Switch (NEMA 1)

Brand: TORK
SKU: 7100
Availability: In Stock

Ships same day if ordered by 12 pm
$212.09
$212.09
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

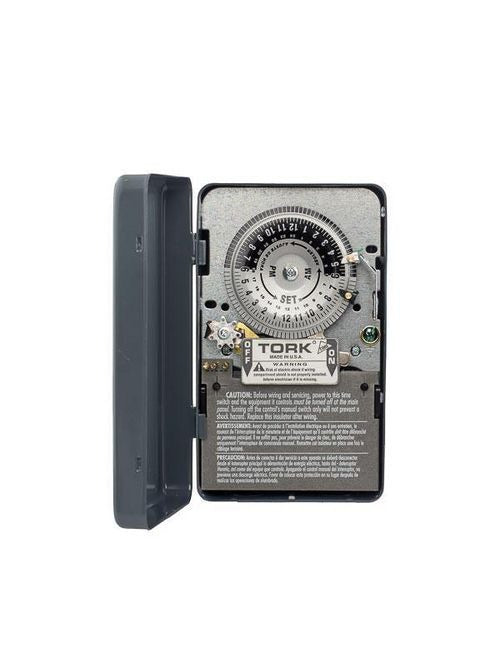

The Tork 7100 is a 24-hour electromechanical time switch (MPN 7100) rated for 120 Vac at 60 Hz with a 40 A SPST contact in a NEMA 1 metal indoor enclosure. It provides mechanical dial-based timing with skip-a-day capability, manual override, and screw/surface mounting options for scheduled on/off control of lighting, pumps, and fans.

  • Electromechanical 24-hour dial timer with skip-a-day function and manual override
  • Rated 120 Vac, 60 Hz timing motor; switching capacity 40 A with SPST contacts
  • NEMA 1 metal indoor enclosure; screw mount surface installation; minimum on/off 20 minutes

Product Highlights

24-hour electromechanical timer, 40 A SPST switching, NEMA 1 metal indoor enclosure with skip-a-day and manual override

Product Information

Standard Information

  • Brand: TORK
  • Manufacturer Part Number: 7100
  • Country of Origin: United States
Technical Specifications
Brand
Tork
Manufacturer
NSi
MPN
7100
Input Voltage
120 Vac
Frequency
60 Hz
Contact Rating / Output Current
40 A
Contact Type
SPST (single pole single throw)
Timer Type
24-hour electromechanical (skip-a-day)
Timing Motor
120 Vac 60 Hz
Power Consumption
3 watts max
Enclosure Rating
NEMA 1 (indoor metal)
Body Material
Metal
Mounting Type
Screw mount (surface)
Number of Poles
1 pole
Number of Phases
1 phase
Manual Override
Standard
Minimum On Time
20 minutes
Minimum Off Time
20 minutes
Max Operations
12 on/off
Horsepower Rating
2 HP (120 Vac)
Dimensions (H x W x D)
7.94 in x 4.69 in x 2.94 in
Operating Temperature
-40 to 165 degrees F
Standards / Certifications
UL-CSA recognized
Supply Connections
AWG #8-14 suitable for 75 degrees C
UPC
786261100016
