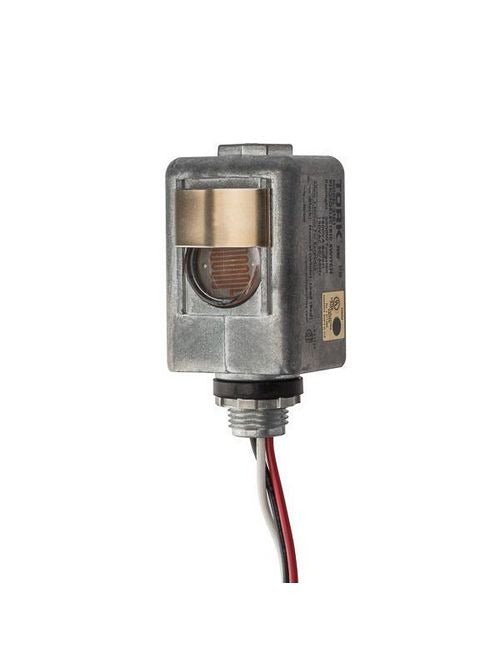

Tork 2101 120 Vac 2000 W Tungsten SPST Thermal Photocontrol (1/2 Stem) 2129A

Product Description

Tork 2101 is a 120 Vac, 2000 W tungsten SPST thermal lighting photocontrol designed for fixture- or stem-mounted daylighting control. The device provides single-pole single-throw switching that remains closed between dusk and dawn and uses a cadmium sulphide, epoxy-coated 1-inch photo element. It supports ballast loads up to 1800 VA, LED loads up to 600 VA, and consumes under 1 watt in standby.

• 120 Vac input; 2000 W tungsten rating; SPST single-pole single-throw thermal switching
• Fixture or 1/2 inch stem mount with die-cast zinc housing and three color-coded 6 inch, 16 AWG leads
• Ballast rating 1800 VA; LED rating 600 VA; turn-on 1 to 5 fc and turn-off 3 to 15 fc; UL and CSA listed

Product Highlights

Fixture or stem-mounted thermal photocontrol with cadmium sulphide 1-inch sensor; 2000 W tungsten and 1800 VA ballast ratings; 1/2 inch mount; UL and CSA certified.

Product Information

Standard Information

• Brand: TORK
• Manufacturer Part Number: 2101
