Tops LL10M Conduit Body Type LL 4 in Hub

Product Description

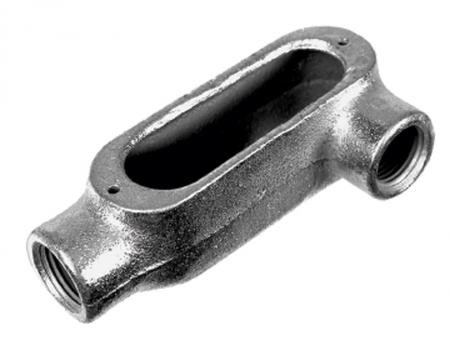

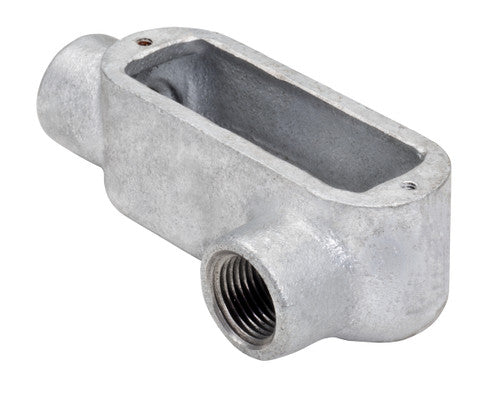

The TOPS LL10M Conduit Body, Type LL, features a 4 in hub. Constructed from malleable iron with a zinc plated finish, this conduit body provides access to conductors for pulling, splicing, and maintenance. It is suitable for use with rigid conduit and in concrete applications. Dimensions are 16-1/2 in L x 7-1/8 in W x 7-3/16 in H.

• NPT tapered hubs
• For use with rigid conduit, to provide access to conductors for pulling, splicing and maintece, suitable for use in concrete
• Wall Mounting Type

Product Highlights

Malleable iron conduit body with zinc plated finish and 4 in hub. Ideal for providing access to conductors.

Product Information

Standard Information

• Brand: TOPS
• Manufacturer Part Number: LL10M

Technical Specifications

• Manufacturer Part Number: LL10M
• Item UPC: 751338212305
• Manufacturer: Topaz
• Capacity: 328 cu-in
• Connection Type: FNPT
• Finish: Zinc Plated
• Hub Size: 4 in
• Material: Malleable Iron
• Mounting Type: Wall
• Number of Hubs: 2
• Type: Type LL
