Topog-E T1250-OBR-S0180 Hand Hole Gasket 2-1/2 x 3-3/4 x 1/2

Product Description

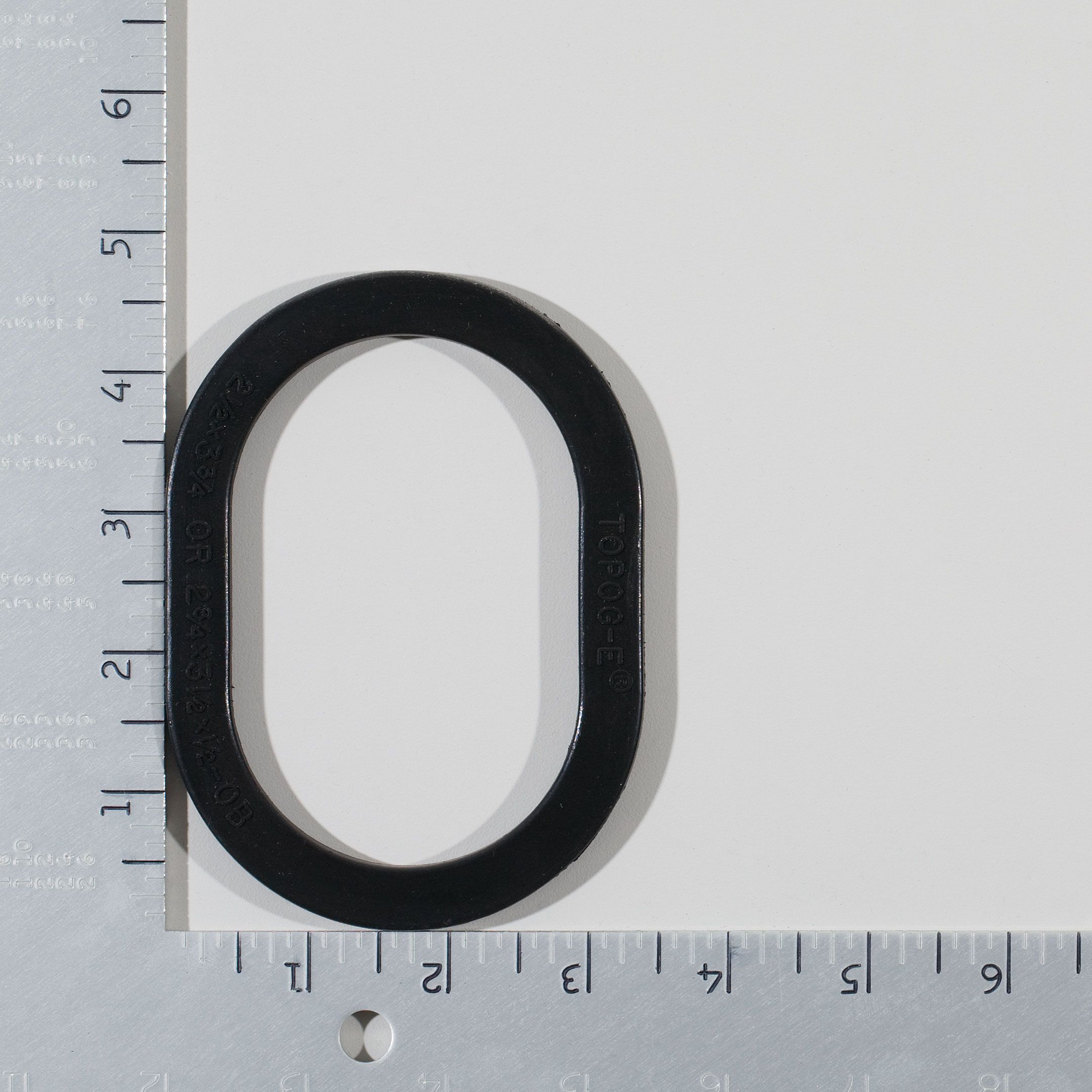

The Topog-E T1250-OBR-S0180 is a molded rubber hand hole gasket designed for high-pressure applications. It is suitable for use on steam boilers and water and air tanks. This gasket supports a working pressure of one hundred eighty pounds and withstands temperatures up to three hundred eighty degrees Fahrenheit. It measures two and one-half inches by three and three-fourths inches with a half-inch flange width. Proper installation requires clean surfaces, without the use of grease or adhesive. The gasket should be tightened to a snug fit and completed with a quarter turn.

• Rated for one hundred eighty pounds and three hundred eighty degrees Fahrenheit
• Dimensions: Two and one-half inches by three and three-fourths inches
• Flange width: One-half inch

Product Highlights

This gasket is essential for effective sealing in boiler maintenance and repairs.

Product Information

Standard Information

• Brand: Topog-E
• MPN: T1250-OBR-S0180

Technical Specifications

• Weight: Zero pounds
