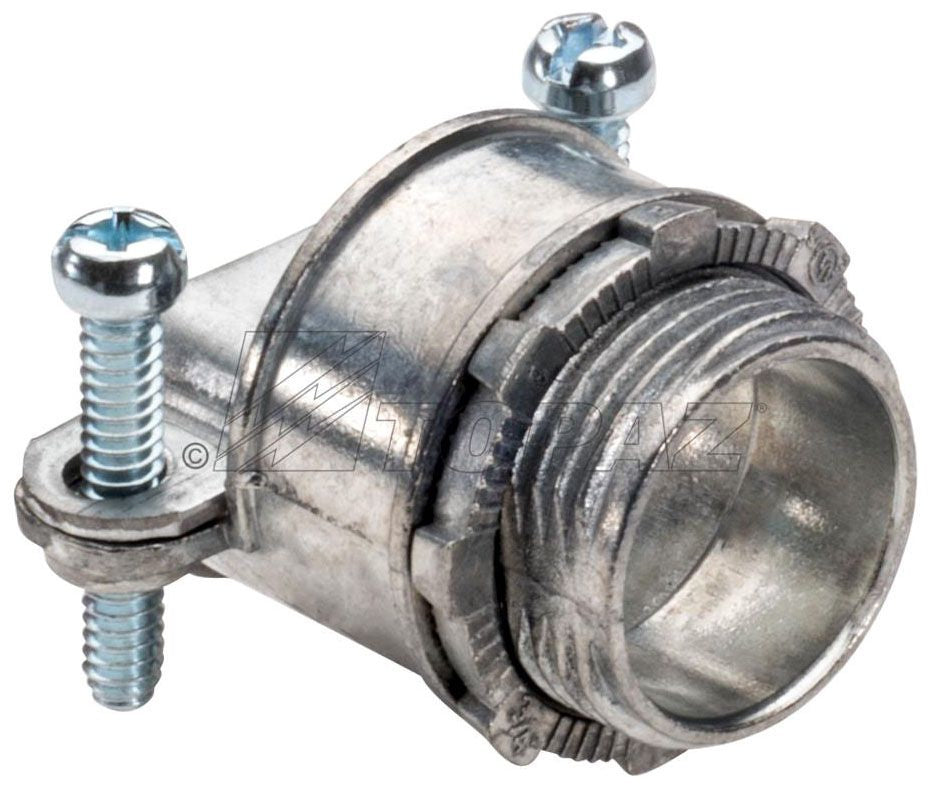

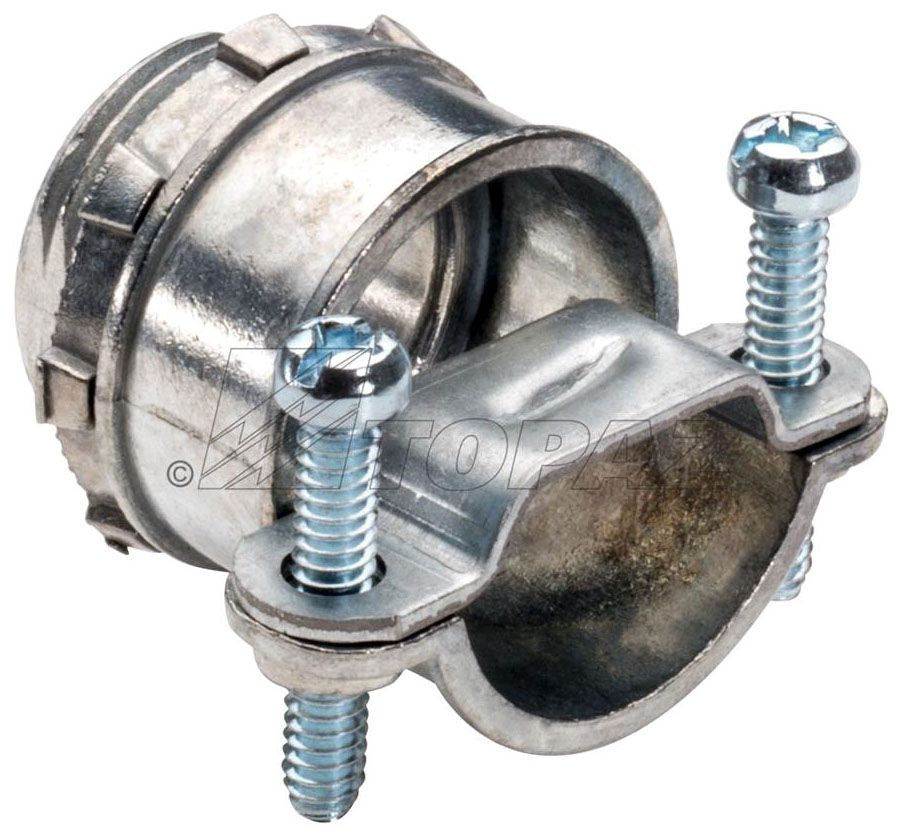

Topaz TA75 TOP TA75 3/4IN MC,AC,NM,SE TAKE ALL

Product Description

The Topaz TA75 is a take-all cable connector designed for professional use in electrical installations. This product accommodates tri-combination screw sizes and is compatible with various cable types, including armored, metal clad, and non-metallic service entrance cables. The trade size measures three-fourth inches, and it allows a cable size range of zero point ninety-four to one point zero eight inches in diameter.

• Installation for multiple cable types
• Fabricated from die-cast zinc
• UL approved for use in both Canada and the US

Product Highlights

This connector is suitable for indoor use in dry locations and includes a reversible steel strap to enhance stability during installation.

Product Information

Standard Information

• Manufacturer: Topaz
• UPC: 75133886342

Technical Specifications

• Product Type: Cable connector
• Material: Die-cast zinc
• Trade Size: 3/4 inch
• Cable Size Range: 0.94 to 1.08 inches
• Approval: UL (Canada and US)
• Application: Indoor, dry location
• Standard Package: 200 units per case
• Weight: 0.125 lbs per unit
