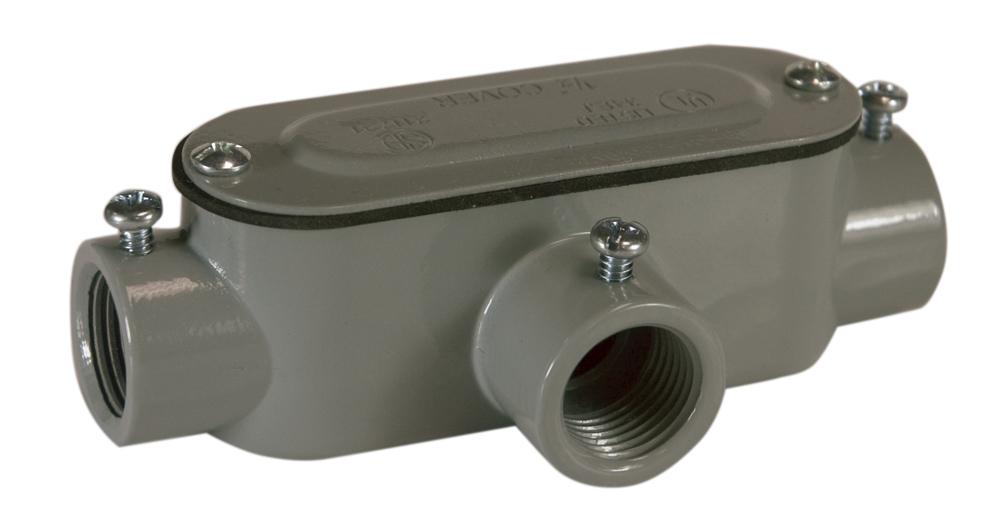

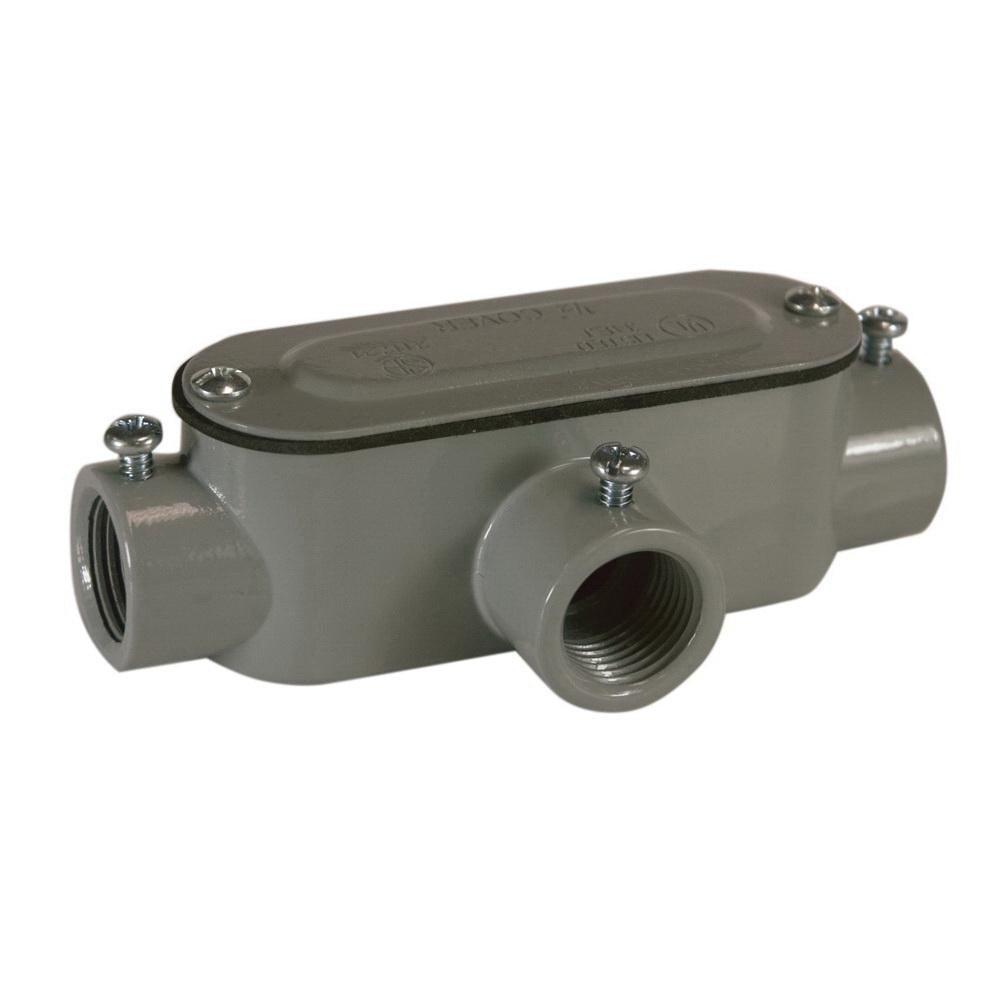

Topaz T2SSCG 3/4 inches Conduit Bodies EMT & Rigid T with Cover & Gasket

Product Description

The Topaz T2SSCG 3/4" Conduit Bodies EMT & Rigid T with Cover & Gasket provides access to conductors for pulling, splicing, and maintenance. Constructed from die-cast aluminum with a powder-coated finish, it ensures durability and corrosion resistance. Suitable for use with rigid/EMT/IMC conduit in concrete and wet locations. Includes a stamped steel cover and neoprene rubber gasket.

• Features NPT tapered threaded hubs.
• NEMA FB-1 rated for wet locations use with threaded rigid metal conduit only.
• Smooth, rounded integral bushings in hubs offer protection for conductor insulation.

Product Highlights

This combination conduit body is ideal for providing access to conductors in various environments, ensuring durability and protection.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: T2SSCG
• Country of Origin: USA

Technical Specifications

• Manufacturer: Topaz
• Manufacturer Part Number: T2SSCG
• Application: For use with rigid/EMT/IMC conduit, to provide access to conductors for pulling, splicing and maintenance, suitable for use in concrete, wet locations
• Connection Type: FNPT
• Country: USA
• Finish: Powder Coated
• Hub Size: 3/4 in
• Material: Die Cast Aluminum
• Mounting Type: Wall
• Number of Hubs: 3
• Standard/Approvals: ARRA, Buy American Act, RoHS Compliant, UL File No. E170258, CSA Certified, UL 514B, Federal Specification No. A-A-50552, NEMA/ANSI FB-1, Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Type: Type T Combination
• Unspsc: 39131708
