Topaz T1SSCG T Type Combo Conduit Body 1/2 inches

Product Description

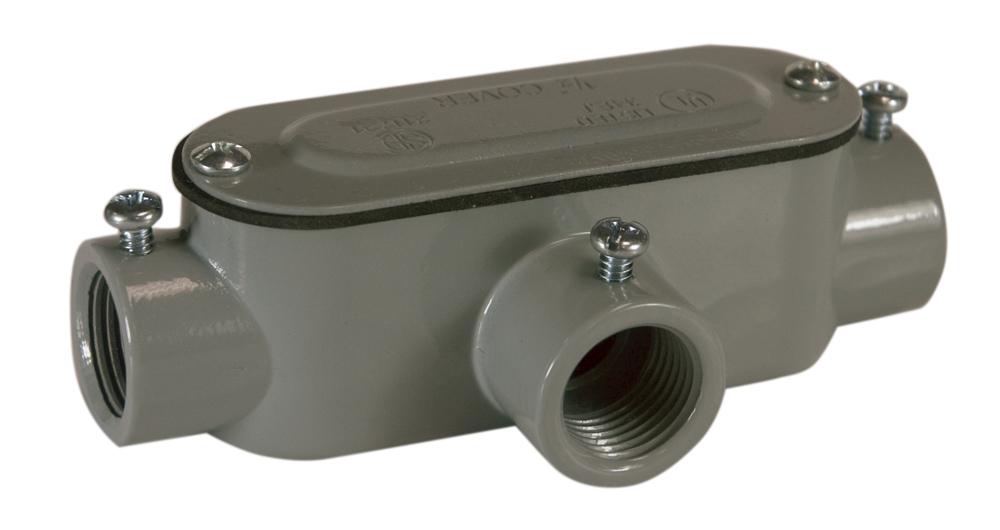

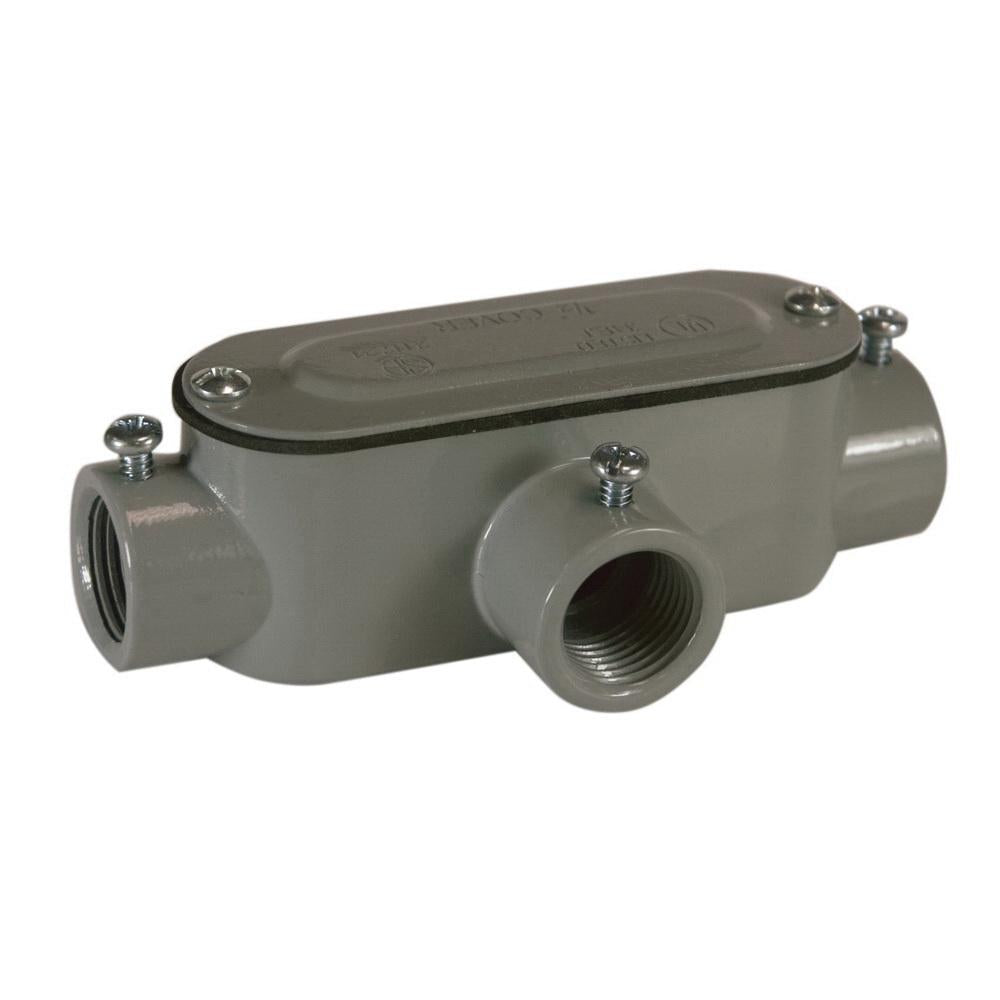

The Topaz T1SSCG T Type Combo Conduit Body features aluminum construction with a powder-coated body and cover for enhanced durability. T type conduit bodies allow 3-way inline access in conduit systems, promote easy splicing and pulling, and can correct and change the direction of conduit runs.

• T Type Combo Conduit Body, Hub Size-1/2"
• Smooth, rounded integral bushings in hubs offers protection for conductor insulation
• Excellent ground continuity and corrosion resistance

Product Highlights

This conduit body is suitable for use with rigid/EMT/IMC conduit, to provide access to conductors for pulling, splicing, and maintenance, and is suitable for use in concrete and wet locations.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: T1SSCG

Technical Specifications

• Brand Name: Topaz
• Brand Part Number: T1SSCG
• Connection Type: FNPT
• Finish: Powder Coated
• Hub Size: 1/2 in
• Material: Die Cast Aluminum
• Mounting Type: Wall
• Number of Hubs: 3
• Type: Type T Combination
• Standard Approval: UL File No. E170258|CSA Certified|UL 514B|Federal Specification No. A-A-50552|NEMA/ANSI FB-1|Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Application: For use with rigid/EMT/IMC conduit, to provide access to conductors for pulling, splicing and maintece, suitable for use in concrete and wet locations
• Item UPC: 751338837928
• Manufacturer: Topaz
• Our Part#: T1SSCG-TZ
