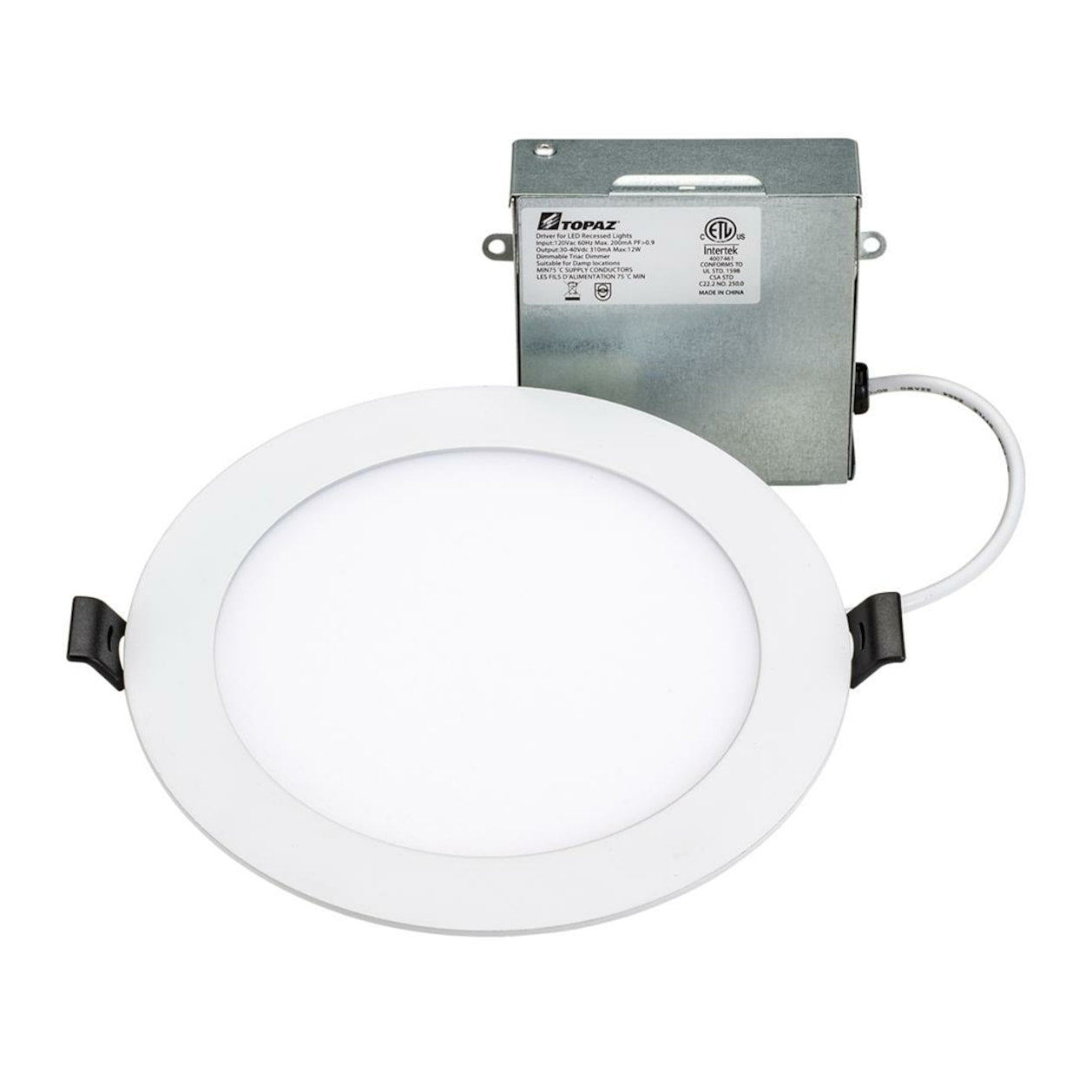

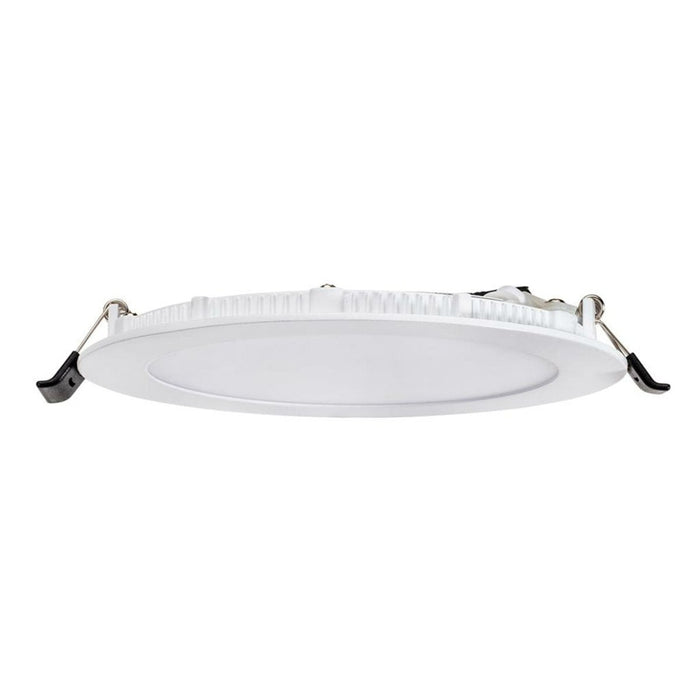

Topaz RDL6-12W-CS LED Canless Slim Fit Downlight 12W (6-inch) 76861

Product Description

The Topaz RDL6-12W-CS is a 12W canless slim-fit downlight that delivers 1,000 lumens with five CCT selectable options (2700K, 3000K, 3500K, 4000K, 5000K). It operates at 120V, is dimmable with most TRIAC dimmers to 5%, and includes a remote junction box with quick-connects for canless installation. The fixture features a die-cast aluminum housing, polycarbonate/acrylic lens, CRI 90, 110° beam angle, and a 50,000-hour rated life.

• 12W, 1,000 lumens, 5 CCT selectable (2700K–5000K); CRI 90; 110° beam angle

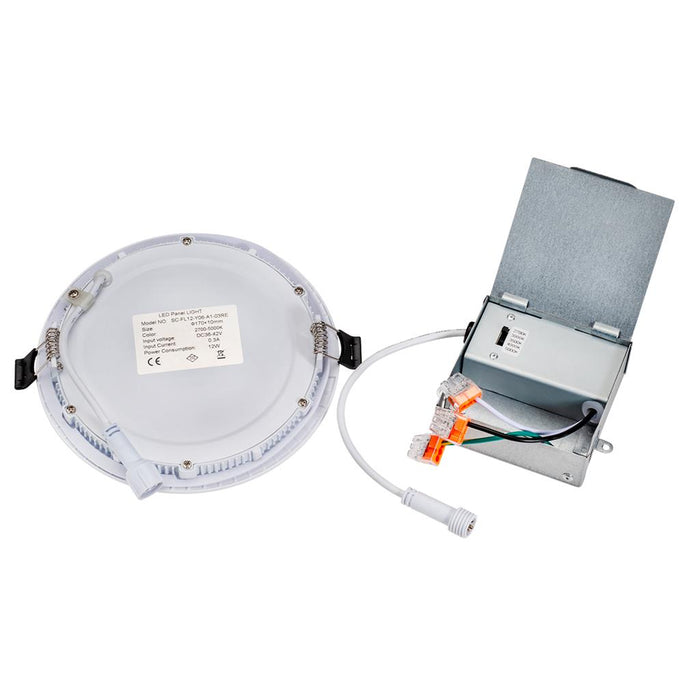

• Canless design with remote junction box, quick-connects and spring clips for low-clearance installation
• 120V operation, TRIAC dimmable to 5%, power factor >0.9; cETLus/UL/ETL, RoHS, Energy Star; 50,000-hour life

Product Highlights

6-inch canless LED downlight, 1,000 lm at 12W, 5 CCT selectable, TRIAC dimmable

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: RDL6-12W-CS

Technical Specifications

• Brand: Topaz
• Manufacturer Part Number: RDL6-12W-CS
• Other Part Number: 76861
• UPC/GTIN: 032886120008
• Wattage: 12 W
• Lumens: 1,000 lm
• CCT Selectable: 2700K, 3000K, 3500K, 4000K, 5000K
• Input Voltage: 120 V
• Beam Angle: 110°
• Lens Material: Acrylic / Polycarbonate
• Housing Material: Die-cast aluminum
• Mounting Type: Canless recessed / ceiling mount with remote junction box
• Driver: External (Class II dimmable LED driver)
• Dimming: Dimmable (compatible with most TRIAC dimmers, down to 5%)
• Power Factor: >0.9
• THD: <15%
• CRI: 90
• Rated Life (hours): 50,000 hours
• Operating Temperature: -4°F to 113°F
• Diameter: 6-inch
• Shape: Round
• Efficacy: 83 lm/W
• Airtight Certification: ASTM-E283
• IC Rated: Yes
• Indoor/Outdoor: Indoor
• Emergency Battery Backup: No
• Dimensions: 7.09 x 7.09 x 0.73 inches
• Certifications: cETLus, UL, ETL, RoHS, Energy Star, California Title 24 (JA8)
