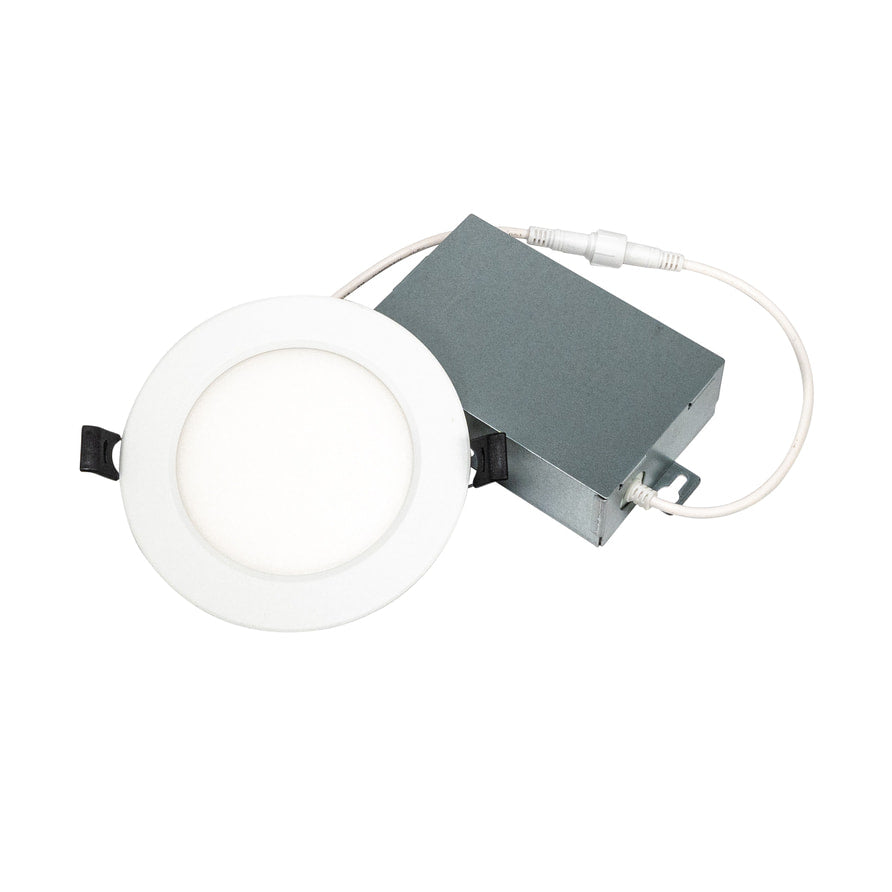

Topaz RDL4-8W-CS 8W LED Canless Slim Fit Downlight (4-inch)

Product Description

Topaz RDL4-8W-CS is an 8W canless slim-fit LED downlight designed for new construction and retrofit recessed installations. The fixture provides 620 lumens at approximately 7.5W (marketed as 8W), is 5-step CCT selectable (2700K to 5000K), and offers smooth dimming down to 5% with a 110-degree wide beam. Construction includes a die-cast aluminum housing, acrylic/polycarbonate lens, and a remote junction box with quick-connects.

• 5-step CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K; CRI 90
• Approx. 7.5W (marketed as 8W) producing 620 lumens, dimmable to 5%, power factor >.9
• Ultra-thin canless design with remote junction box and quick-connects; 4.88 x 4.88 x 0.73 inches

Product Highlights

4-inch slim fit recessed LED downlight, 620 lm at ~8W, 5-step CCT selectable, 110-degree beam, ENERGY STAR and Title 24 (JA8) certified

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: RDL4-8W-CS

Technical Specifications

• Brand: Topaz
• MPN: RDL4-8W-CS
• Model: RDL4
• Power: 7.5W (marketed as 8W)
• Lumens: 620 lm
• Color Temperature (CCT): 2700K / 3000K / 3500K / 4000K / 5000K (selectable)
• Input Voltage: 120V
• Beam Angle: 110-degree
• Lens Material: Acrylic / polycarbonate
• Housing Material: Die-cast aluminum
• Rated Life: 50,000 hours
• Certifications: UL, ETL, RoHS, ENERGY STAR, California Title 24 (JA8), cETLus
• Dimmable: Yes
• Dimming Minimum: Dimmable to 5% (compatible with most LED dimmers)
• CRI: 90
• Power Factor: >.9
• Operating Temperature: -4 F to 113 F
• Dimensions: 4.88 x 4.88 x 0.73 inches
• Diameter: 4 inches
• Efficacy: 83 lm/W
• Emergency Battery Backup: No
• Mounting Type: Canless recessed slim fit; spring clips or remote junction box
• Installation: Remote junction box with quick-connects; 4-inch hole mounting
• Indoor/Outdoor: Indoor
• Wet Location Rated: Yes
• UPC: 032886120022
• Energy Star ID: 3629352
