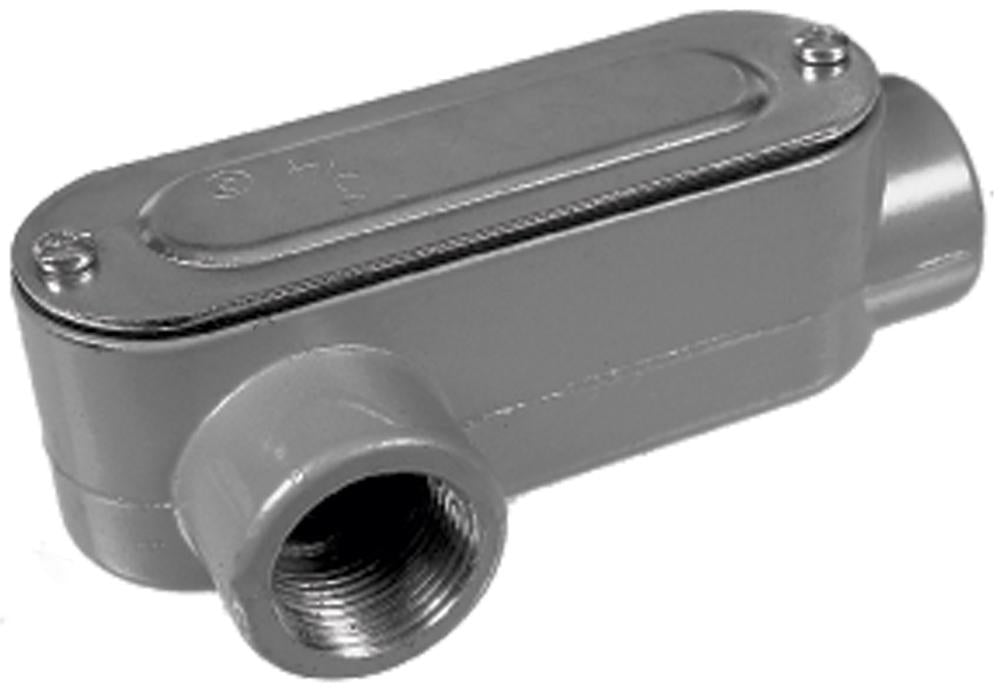

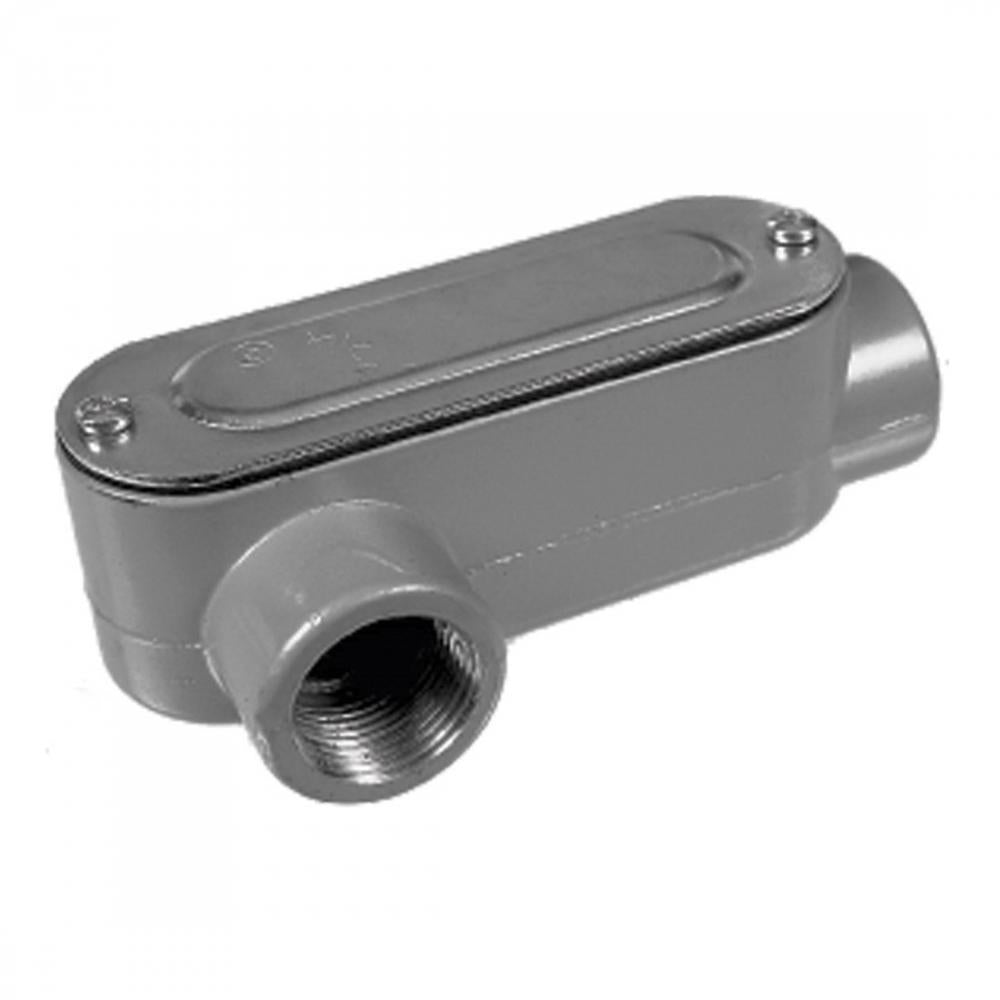

Topaz LR9CG lr type conduit body 3-1/2 inches

Product Description

The Topaz LR9CG LR Type Conduit Body is constructed from die cast aluminum. This conduit body permits 90° right bends in conduit systems and provides access for splicing. It can also correct and change the direction of conduit runs. Features smooth, rounded integral bushings in hubs for conductor insulation protection.

• LR Type Conduit Body, Hub Size-3-1/2"
• Wall Mount, Die Cast Aluminum.
• Threaded LR type with cover and gasket

Product Highlights

Designed for inspection, pulling, and maintenance within conduit systems, ensuring fast, hassle-free installation.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: LR9CG
• Country of Origin: USA

Technical Specifications

• Brand Name: Topaz
• Brand Part Number: LR9CG
• Length: 16.0
• Width: 6.171 in
• Height: 5.452 in
• Mounting Type: Wall
• Type: Type LR
• Connection Type: FNPT
• Number of Hubs: 2
• Material: Die Cast Aluminum
• Hub Size: 3-1/2 in
• Finish: Powder Coated
• Application: For use with rigid conduit, to provide access to conductors for pulling, splicing and maintenance, suitable for use in concrete, wet locations
• Standard/Approvals: ARRA, Buy American Act, RoHS Compliant, UL 514A and UL 514B, UL File No. E170258, cULus File No. E195124, CSA Certified, Federal Specification No. A-A-50563, NEMA/ANSI FB-1, Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Unspsc: 39131708
• Volume: 0.0
• Weight: 7.0
• Dimensions: 15.5 in L x 6.171 in W x 5.452 in H
• Item UPC: 751338213210
• Manufacturer: Topaz
• Our Part#: LR9CG-TZ
• Diameter: 3 1/2 in
• Standards: California Proposition 65
