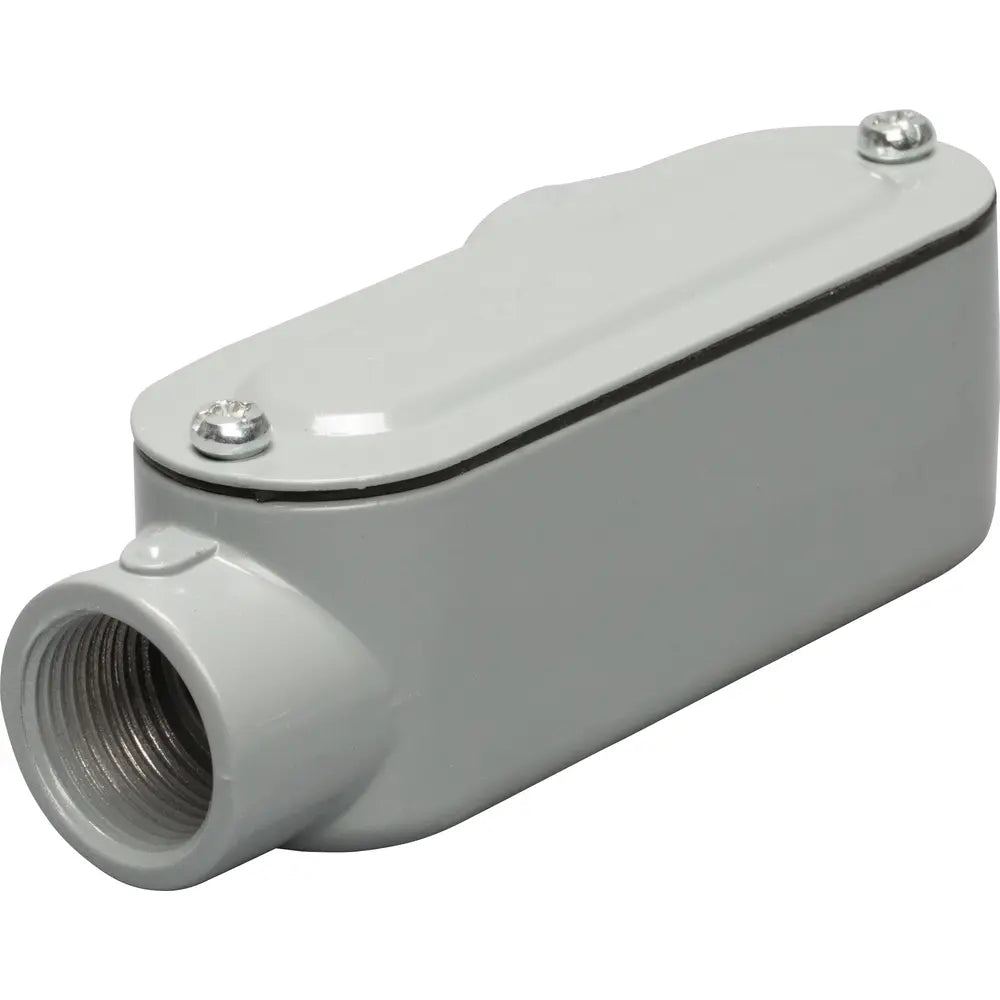

Topaz LR4CG LR Type Rigid Conduit Body 1-1/4 inches With Cover and Gasket

Product Description

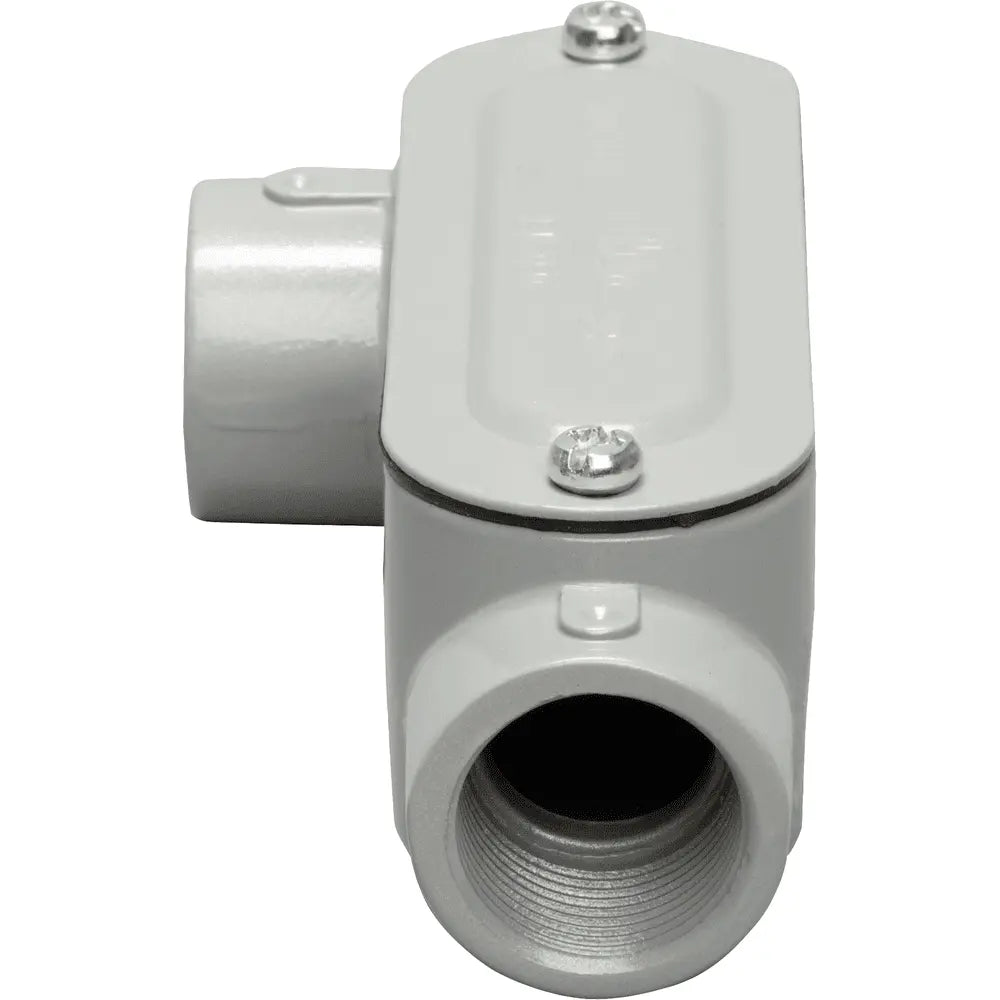

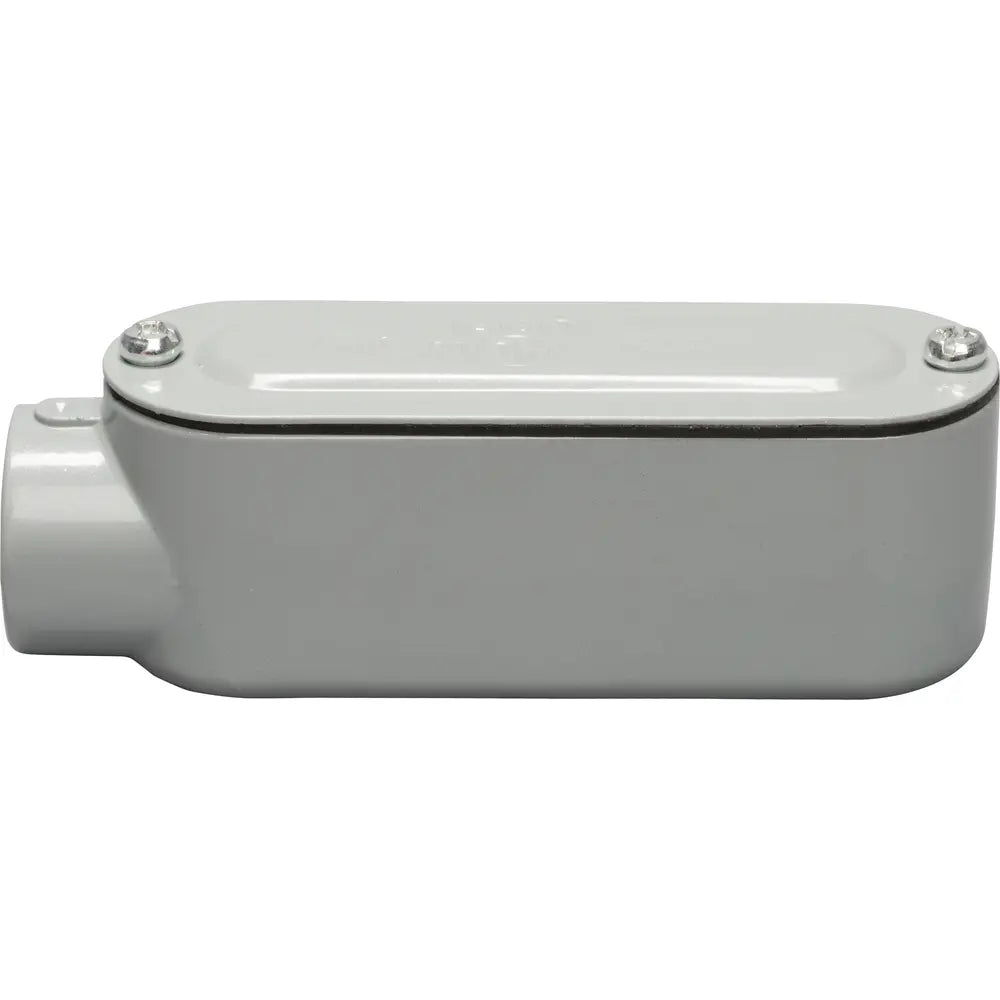

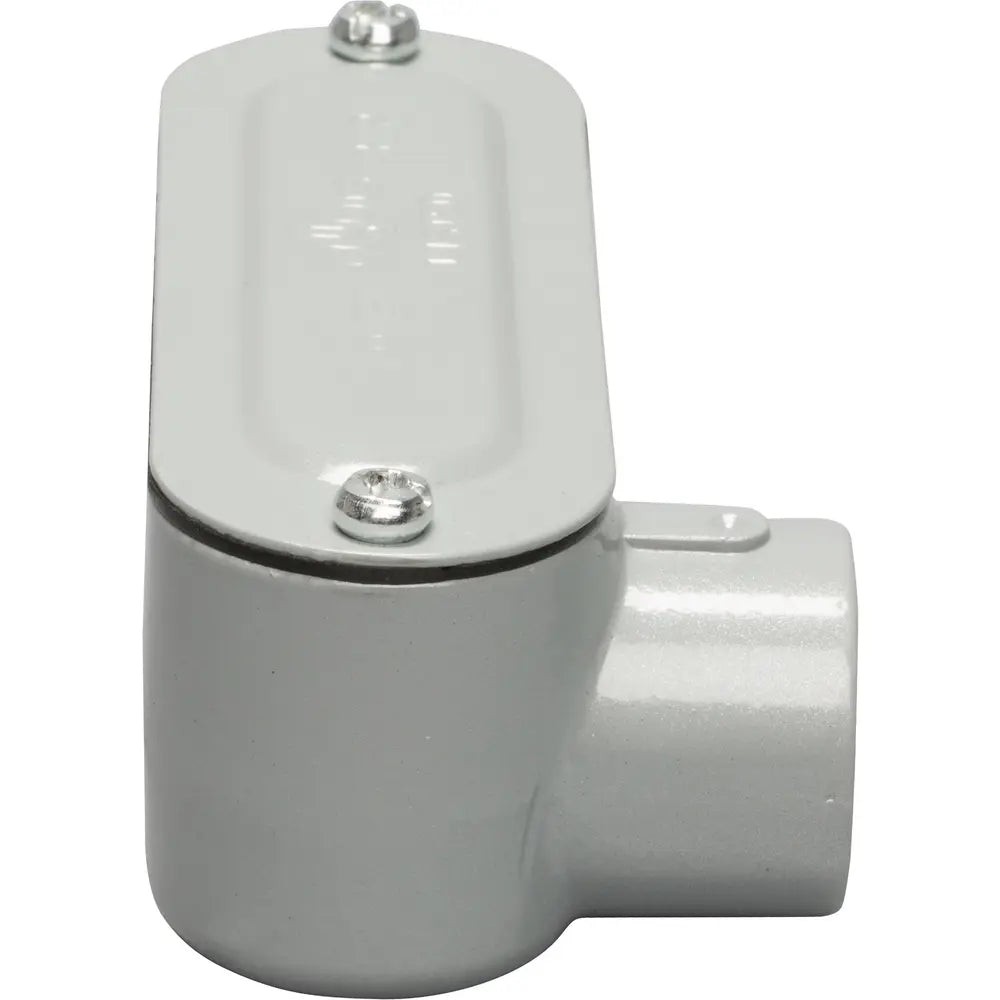

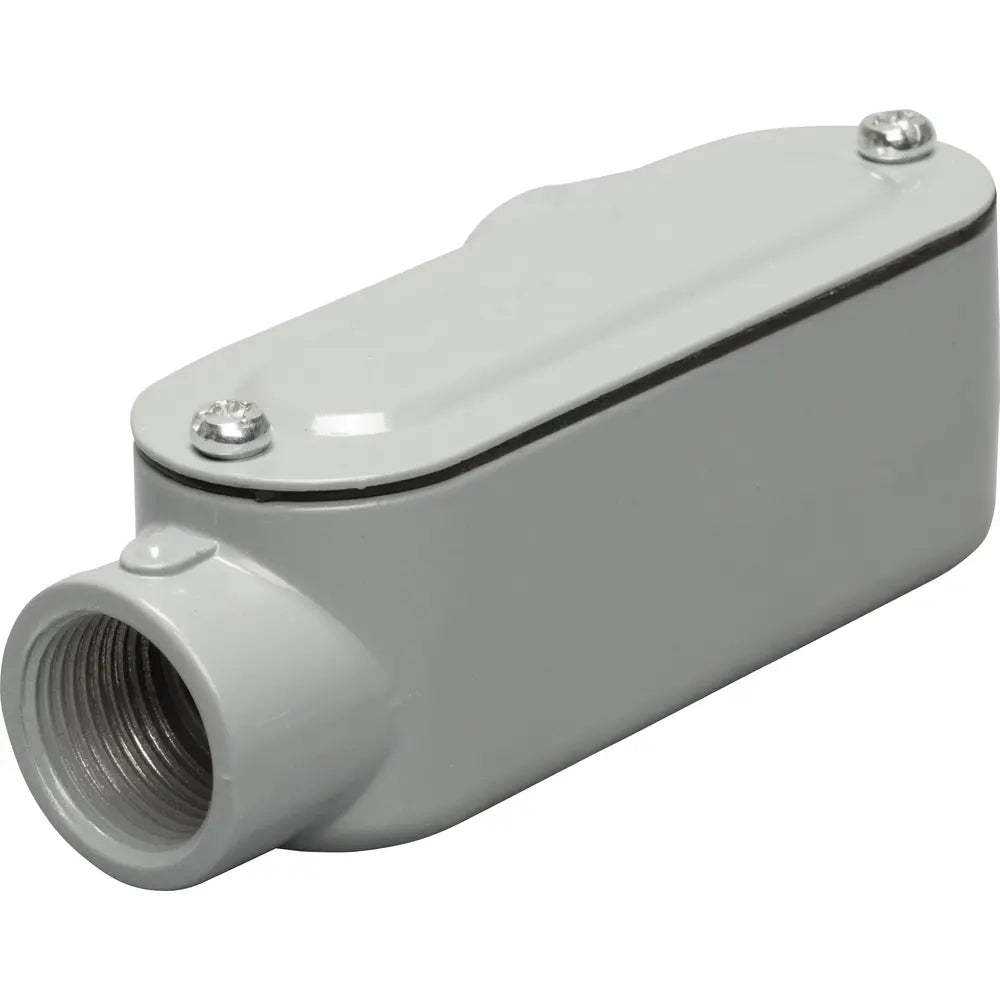

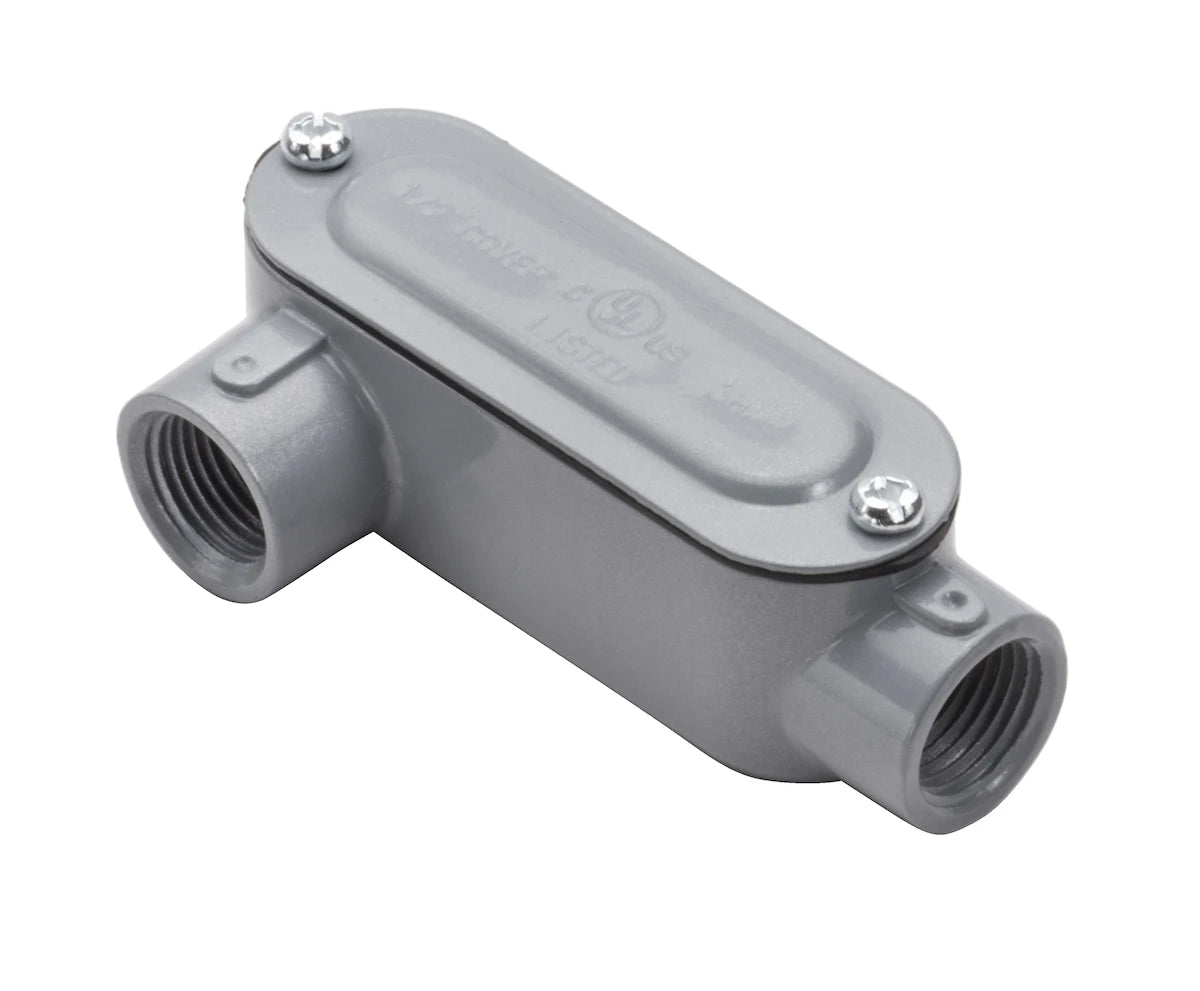

The Topaz LR4CG is a 1-1/4" LR Type Rigid Conduit Body with Cover and Gasket that provides access to conductors for pulling, splicing, and maintenance. It permits 90° right bends in conduit systems and can correct and change the direction of conduit runs. It has excellent ground continuity and corrosion resistance.

• Manufactured from copper-free aluminum
• Smooth, rounded integral bushings in hubs offer protection for conductor insulation
• Cover and watertight gasket ensures weatherproof installations

Product Highlights

This rigid threaded LR type conduit body is made from lightweight aluminum and is UL listed.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: LR4CG
• Country of Origin: UKN

Technical Specifications

• Type: Rigid Conduit Bodies and Covers
• Color: Gray
• Width: 3.39 Inches
• Finish: Powder Coated
• Height: 2.77 Inches
• Length: 7.89 Inches
• Hub Size: 1-1/4 in.
• Material: Die-Cast Aluminum
• Standard: cULus
• Connection: Threaded
• Trade Size: 1-1/4 in.
• Conduit Body Type: LR
• Brand Name: Topaz
• Brand Part Number: LR4CG
• Wall Mount: Wall Mount
• For Use With: For Rigid Conduit
• Conductor Size: 2 AWG
• Cover Material: Stamped Steel
• Number of Conductors: 3
• Size: 1 1/4 in
• TC Connection: 1-1/4 FNPT IN
• Wire Size: 2 AWG
• Brand: Topaz Lighting and Electric
• Product UPC: 751338212718
• Manufacturer: Topaz
• Manufacturer Part Number: LR4CG
• MPN: LR4CG
• UPC: 751338212718
• Condition: New Open box
