Topaz LR1SSCG LR Type Combo Conduit Body 1/2 inches replacement mpn

Product Description

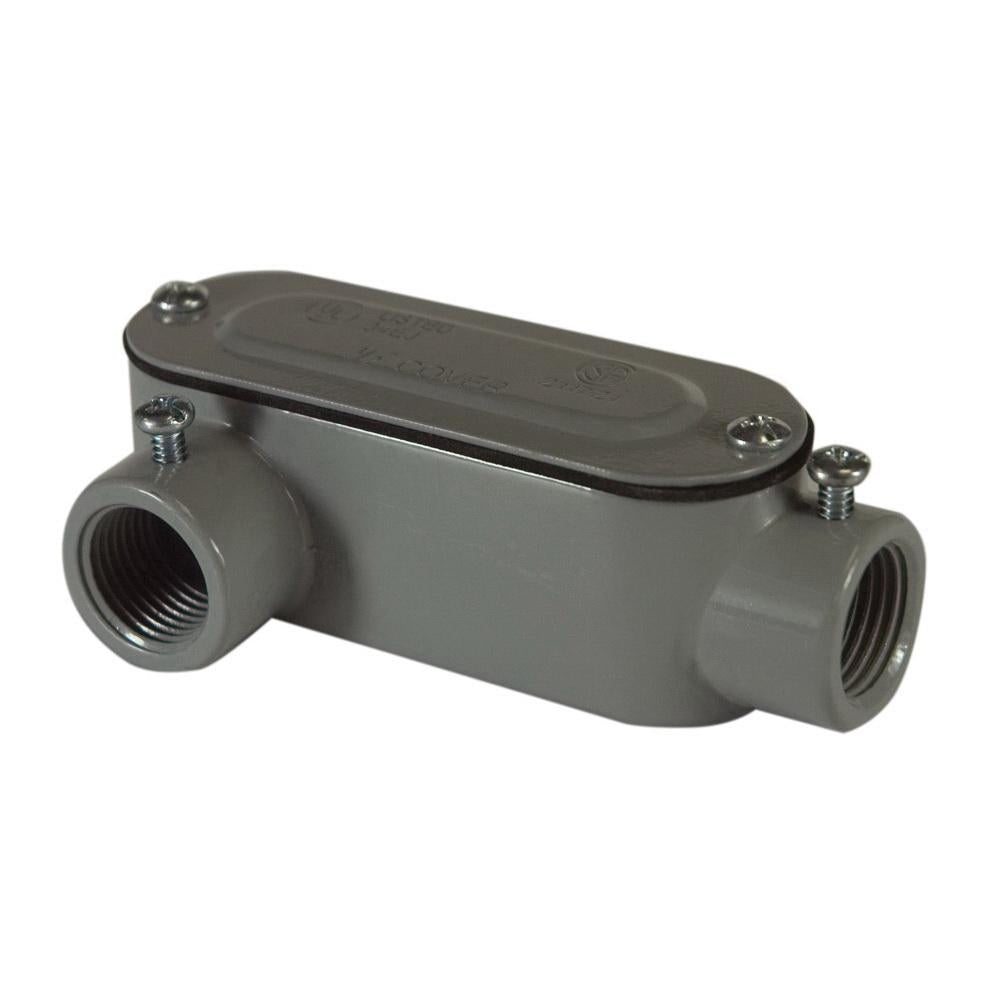

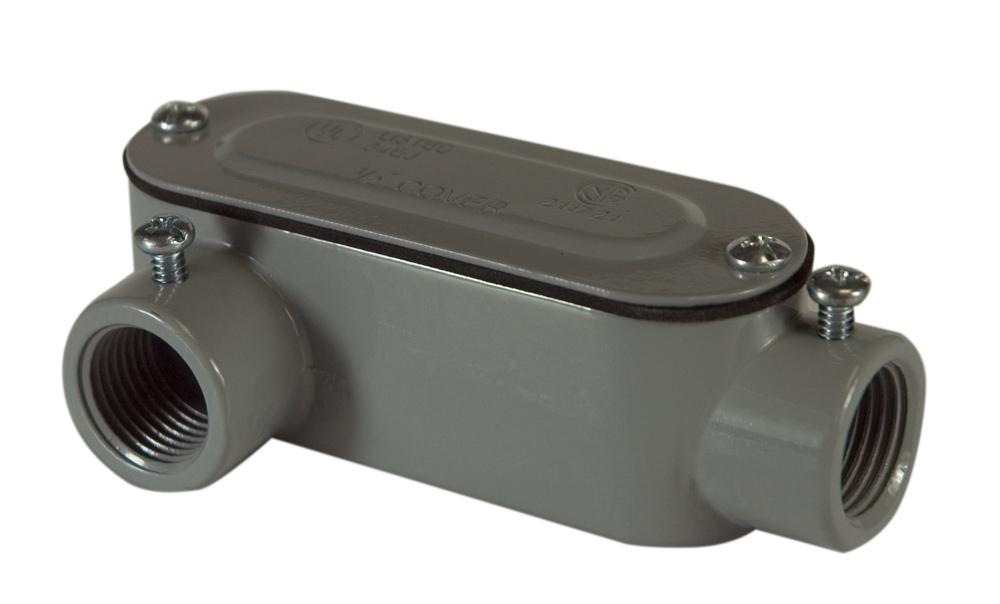

The Topaz LR1SSCG LR Type Combo Conduit Body is made from corrosion-resistant aluminum. This conduit body features a hub on one end and one on the right side for easy access for splicing and changing conduit direction. The domed cover allows additional wiring space, and the watertight gasket ensures weatherproof installations.

• LR Type Combo Conduit Body, Hub Size-1/2"
• Length-4.56"
• Width-2.06"

Product Highlights

This combo conduit body is suitable for use with rigid/EMT/IMC conduit, to provide access to conductors for pulling, splicing and maintenance, suitable for use in concrete and wet locations

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: LR1SSCG

Technical Specifications

• Brand Name: Topaz
• Brand Part Number: LR1SSCG
• For Use With: Rigid/EMT/IMC Conduit
• Hub Size: 1/2 in
• Length: 4.56 in
• Width: 2.06 in
• Height: 1.31 in
• Mounting Type: Wall Mount
• Material: Die Cast Aluminum
• Connection Type: FNPT
• Finish: Powder Coated
• Number of Hubs: 2
• Type: Type LR Combination
• Standard Approval: UL 514A|UL 514B|UL File No. E170258|cULus File No. E195124|CSA Certified|Federal Specification No. A-A-50552|NEMA/ANSI FB-1|Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Application: For use with rigid/EMT/IMC conduit, to provide access to conductors for pulling, splicing and maintece, suitable for use in concrete and wet locations
