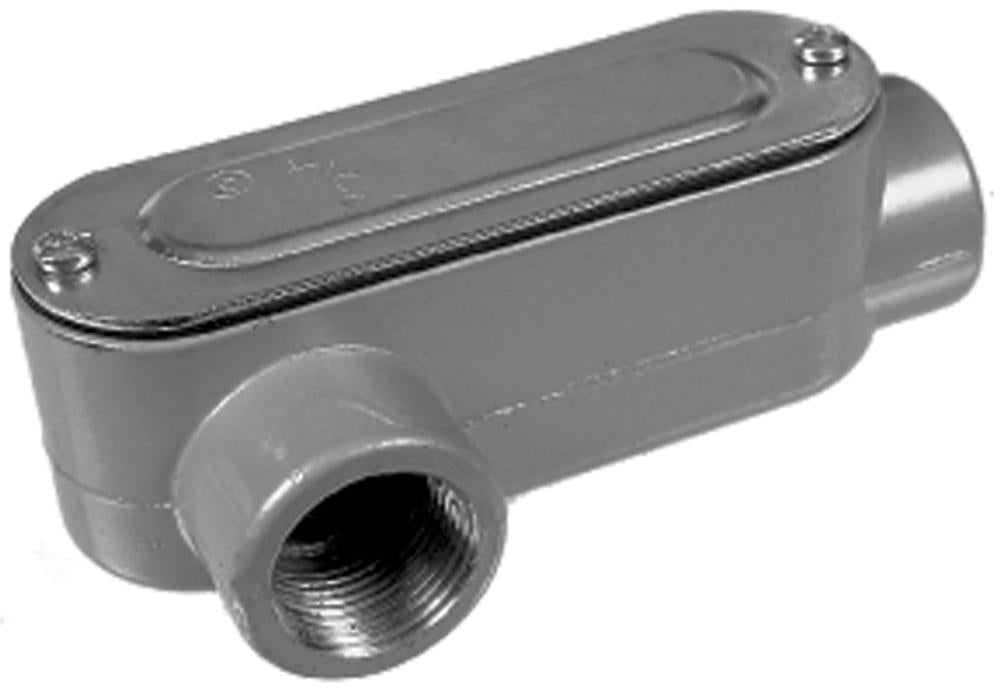

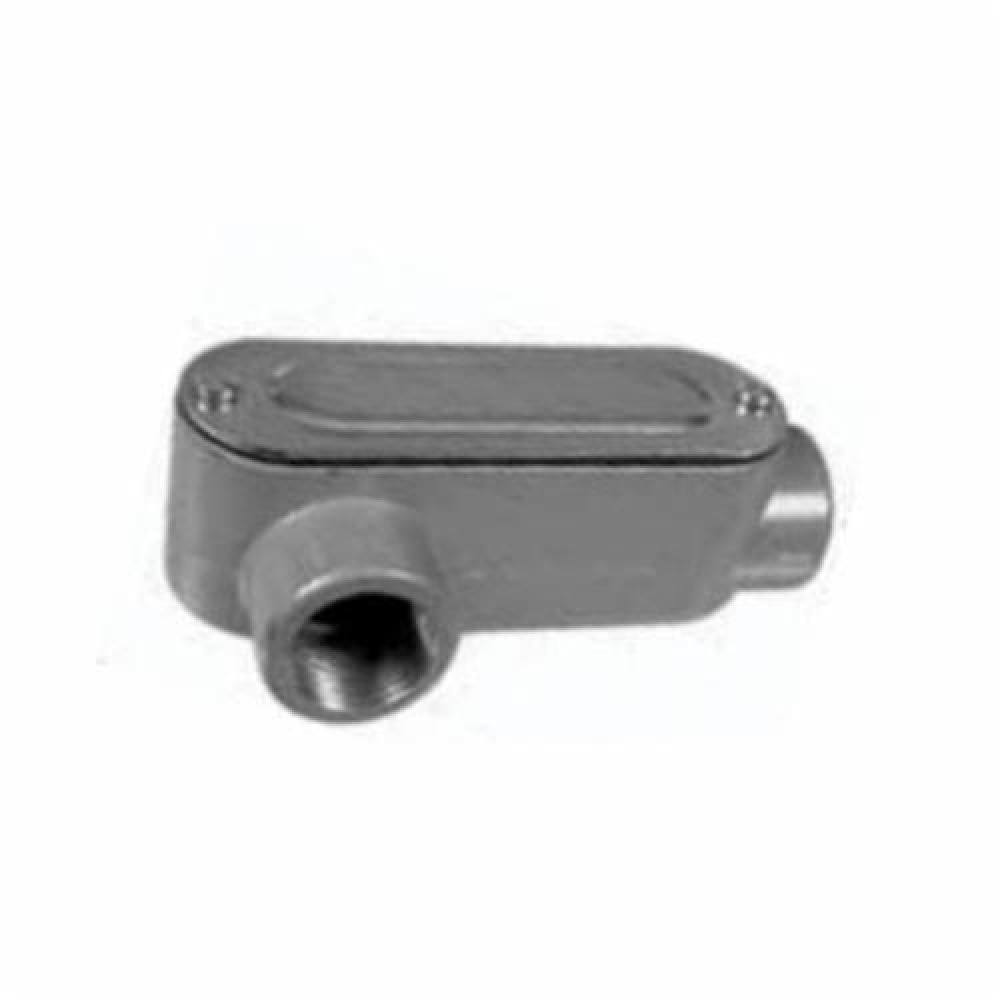

Topaz LR10CG LR Type Conduit Body, Die Cast Aluminum, Wall Mount, Hub Size-4 inches

Product Description

The Topaz LR10CG LR Type Conduit Body is constructed from die cast aluminum and designed for wall mounting. This conduit body permits 90° right bends in conduit systems and provides access for splicing. Features include smooth, rounded integral bushings in hubs for conductor insulation protection.

• LR Type Conduit Body
• Hub Size-4"
• Die Cast Aluminum

Product Highlights

Ideal for providing access to conductors for pulling, slicing, maintenance in concrete and wet locations.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: LR10CG
• Country of Origin: USA

Technical Specifications

• Brand Name: Topaz
• Brand Part Number: LR10CG
• Hub Size: 4"
• Length: 15.500"
• Width: 6.171"
• Height: 5.452"
• Wall Mount: None
• Die Cast Aluminum: None
• For Use With: For Rigid Conduit
• Manufacturer: Topaz
• Category Level 1: Conduit & Conduit Fittings
• Category Level 2: Conduit Bodies
• Category Level 3: Conduit Bodies - Type LR
• Application: For providing access to conductors for pulling, slicing and maintenance and concrete and wet locations
• Category Name: Conduit Bodies - Type LR
• Connection Type: Tapered FNPT
• Country: USA
• Dimensions: 15.5 in L x 6.171 in W x 5.452 in H
• Enclosure: NEMA FB-1
• Material: Die Cast Aluminum
• Mounting Type: Wall
• Number of Hubs: 2
• Standard/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 514B/E170258|CSA Certified|Federal Specification A-A-50563|ANSI FB-1|Military Specification W-F-406D/W-F-406E/W-F-408D/W-S-610D
• Type: Type LR 4-Conductor
• Unspsc: 39131708
• Volume: 0.0
• Product Name: Southwire TOPAZ 4 Inch Rigid Conduit Body Threaded LR Type With Cover And Gasket (LR10CG)
• Brand: Southwire
• Mfr. Part Number: LR10CG
• UPC Code: #751338213319
