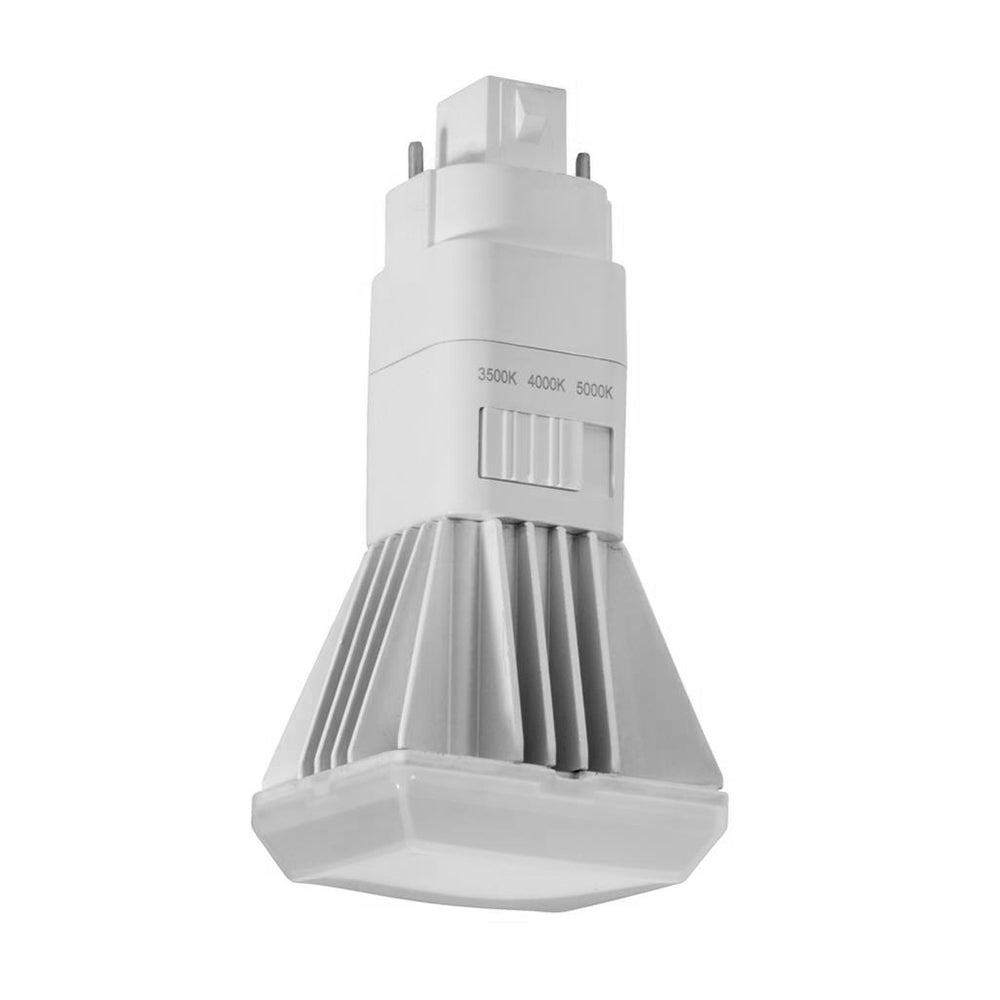

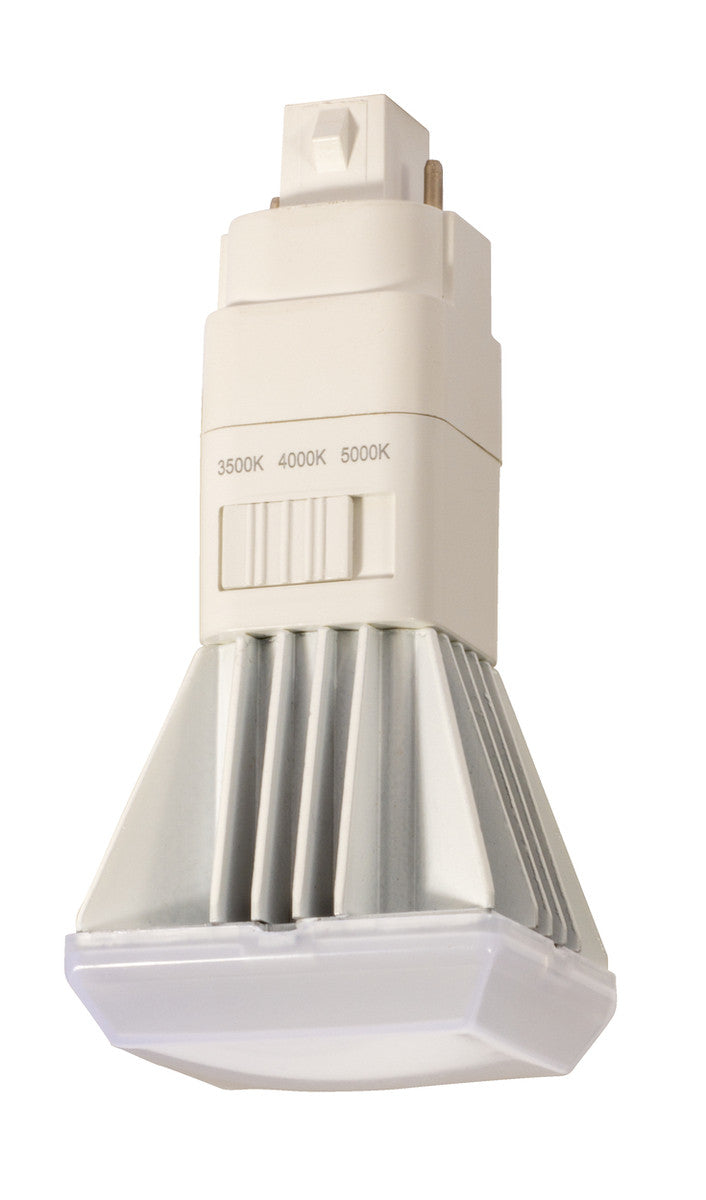

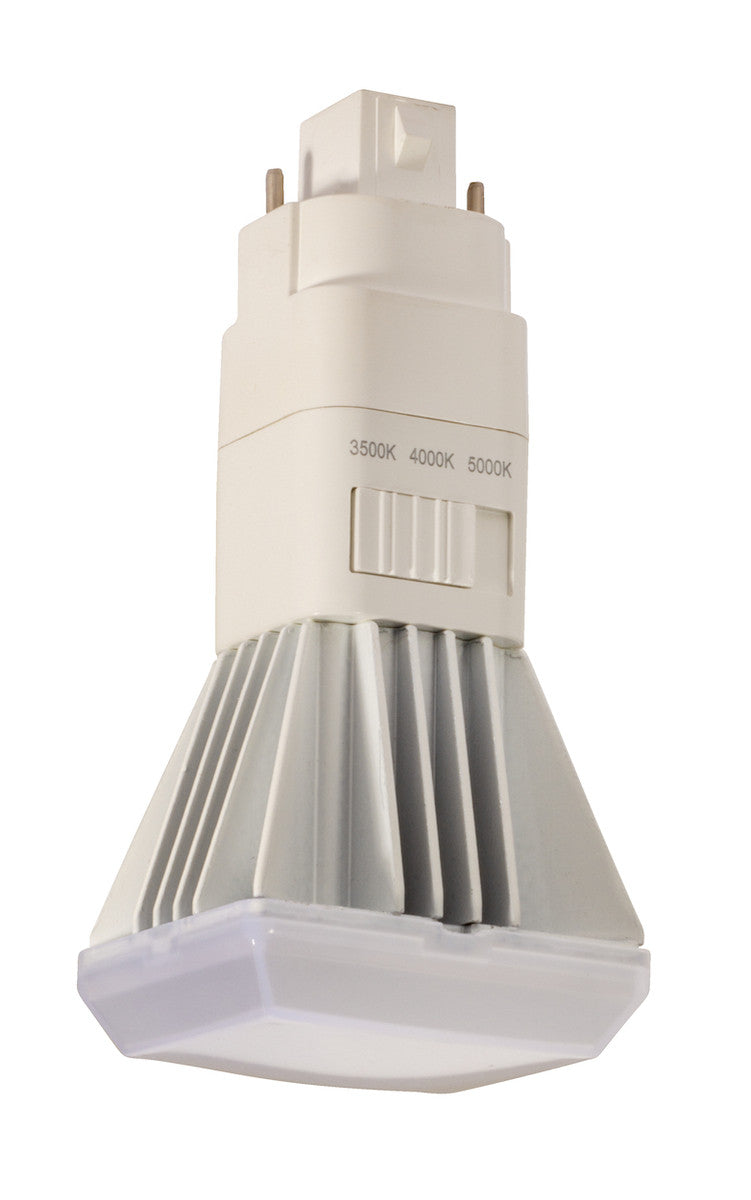

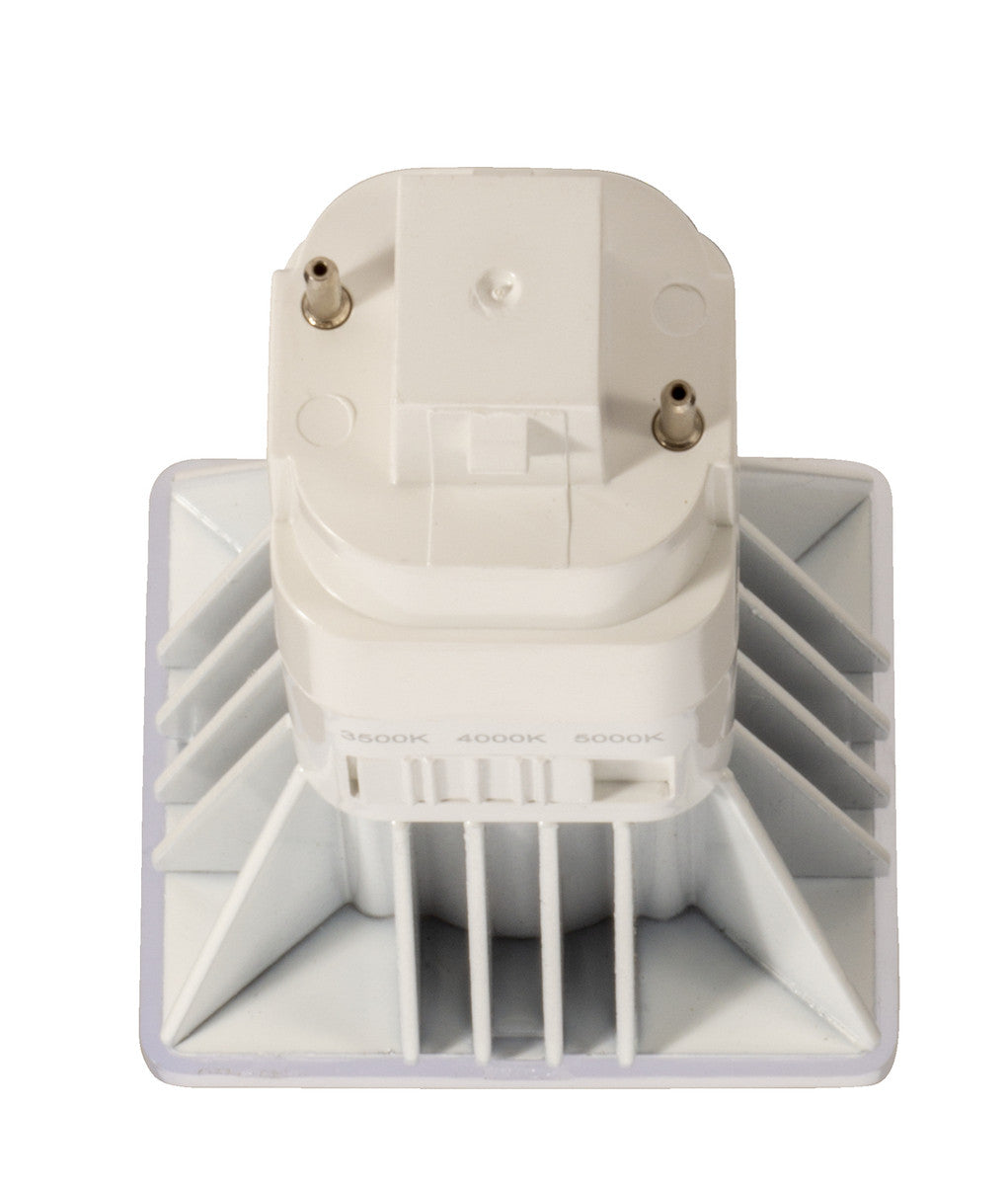

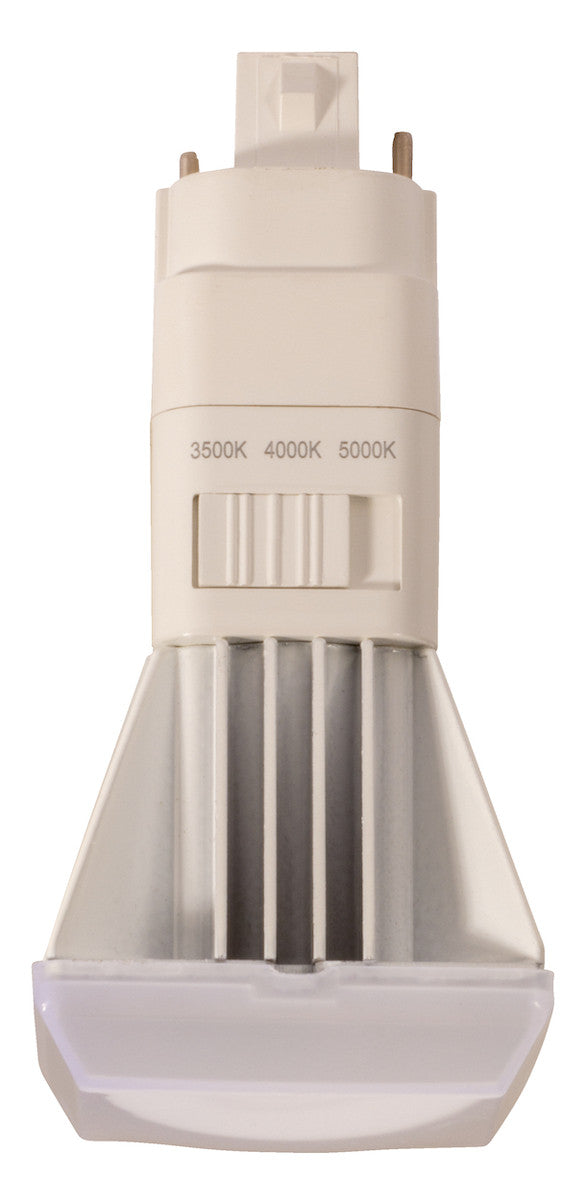

Topaz LPLTB-8W-CTSC-V 8W PLT Retrofit Ballast Bypass (Vertical) Replaces 13W/18W/26W CFL

Product Description

Topaz LPLTB-8W-CTSC-V is an 8W PLT retrofit ballast-bypass LED lamp with field-selectable CCT of 3500K, 4000K, and 5000K. The vertical orientation lamp connects directly to line voltage (UL Type B) and replaces 13W, 18W, and 26W 2- and 4-pin CFL lamps for recessed and sconce fixtures. It is non-dimmable, suitable for enclosed fixtures and damp locations, and operates on 120-277V with output around 1000-1050 lumens.

• Ballast bypass (UL Type B) PLT retrofit, 8W power, input voltage 120-277V, non-dimmable, G24d 2-pin base
• CCT selectable 3500K/4000K/5000K; lumen output approximately 1000-1050 lm; CRI 83; efficacy up to 131 LPW
• Suitable for enclosed fixtures and damp locations; operating temperature -20 C to 45 C (-4 F to 113 F); average life 50,000 hours; vertical orientation

Product Highlights

8W PLT ballast-bypass LED, selectable 3500K/4000K/5000K, replaces 13/18/26W CFL, 1000-1050 lm, 120-277V, UL Type B

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: LPLTB-8W-CTSC-V

Technical Specifications

• Brand: Topaz
• Manufacturer Part Number: LPLTB-8W-CTSC-V
• Model / MPN: LPLTB-8W-CTSC-V
• Product Watts: 8W
• Power Consumption: 8W
• Input Voltage: 120-277V
• Frequency: 60 Hz
• Base Type: G24D (2-pin)
• Mounting Type: Vertical
• CCT: Selectable 3500K / 4000K / 5000K
• Lumens: 1000-1050 lm
• Efficacy: Up to 131 LPW
• Color Rendering Index (CRI): 83
• Beam Angle: 120 deg
• Power Factor: 0.9
• Dimmable: No
• Average Life: 50,000 hours
• Operating Temperature: -20 C to 45 C (-4 F to 113 F)
• Suitable For: Enclosed fixtures; damp locations (fixture temp must be < 113 F)
• Replaces: 13W, 18W, 26W 2- and 4-pin CFL lamps
• Certifications: UL Classified; UL Type B; RoHS
• Dimensions (L x W x H): 2.17 in x 1.85 in x 4.72 in
• Weight: 0.26 lb
• UPC: 751338040588
