Topaz LL8CG ll Type Conduit Body 3 inches Replacement LL8CG-TZ

Product Description

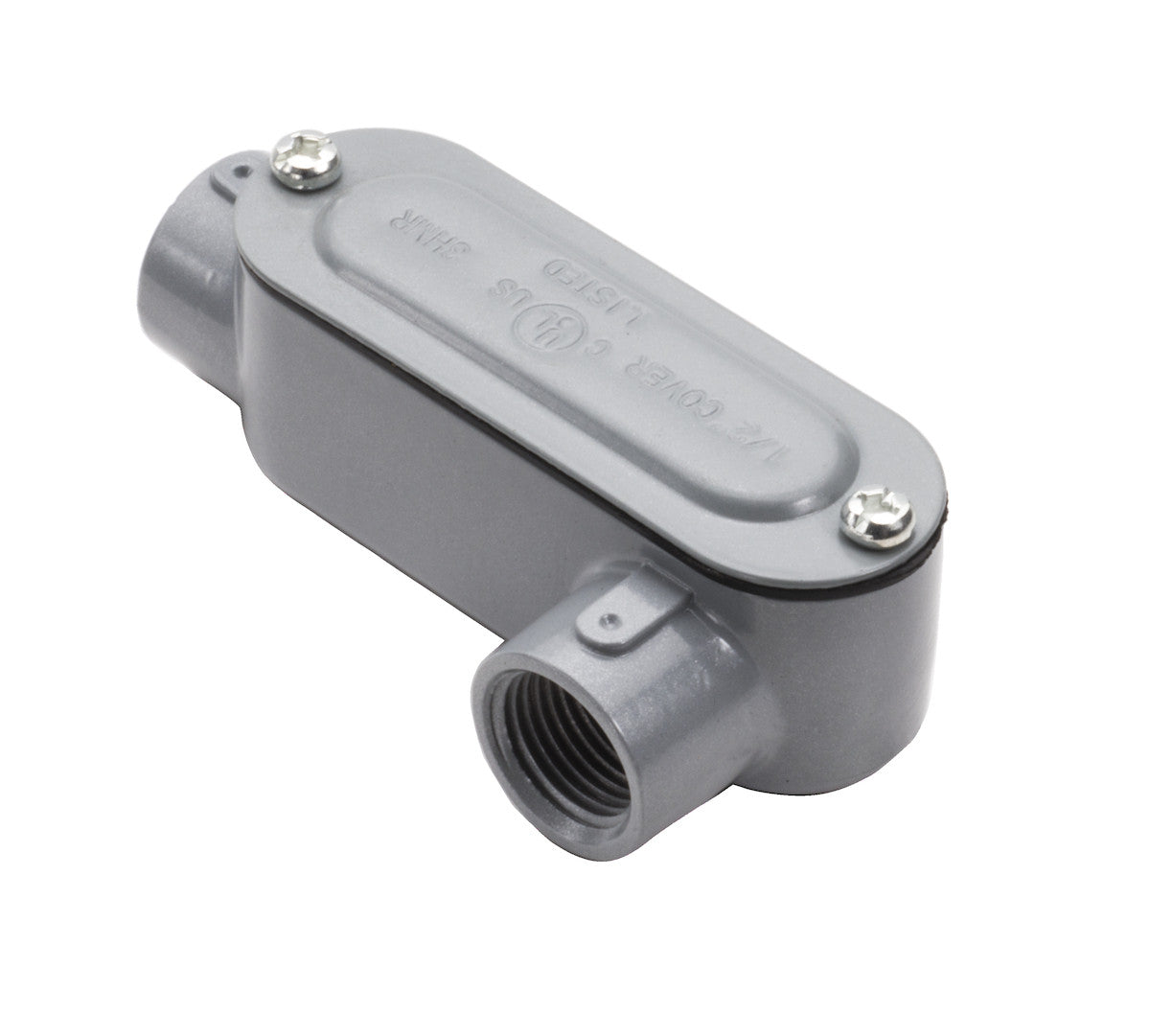

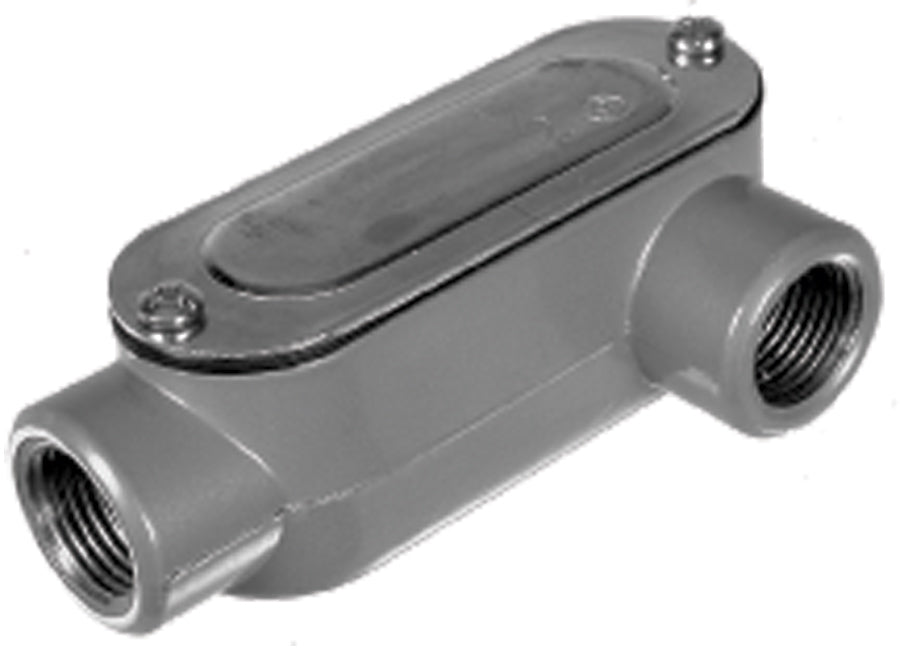

The Topaz LL8CG is a 3" LL Type Conduit Body. Constructed from die cast aluminum, this conduit body is designed for wall mounting and for use with rigid conduit. It allows for 90° left bends in conduit systems and provides access for splicing.

• LL Type Conduit Body
• Hub Size-3"
• Wall Mount

Product Highlights

This conduit body features copper free aluminum construction, smooth rounded integral bushings, and a cover with watertight gasket for weatherproof installations.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: LL8CG
• Country of Origin: ZZ

Technical Specifications

• Brand Name: Topaz
• Brand Part Number: LL8CG
• Hub Size: 3 in
• Length: 12.750"
• Width: 5.506"
• Height: 4.682"
• Wall Mount: Wall
• Material: Die Cast Aluminum
• For Use With: For Rigid Conduit
• Item UPC: 751338211117
• Manufacturer: Topaz
• Manufacturer Part Number: LL8CG
• Our Part#: LL8CG-TZ
• Application: For use with rigid conduit, to provide access to conductors for pulling, splicing and maintenance, suitable for use in concrete and wet location applications
• Connection Type: FNPT
• Country of Origin: ZZ
• Dimensions: 12.75 in L x 5.506 in W x 4.682 in H
• Finish: Powder Coated
• Includes: Steel Screw
• Mounting Type: Wall
• Number of Hubs: 2
• Package Height: 5.9055 in
• Package Length: 12.7165 in
• Package Weight: 7.548 lb
• Package Width: 5.1575 in
• Type: Type LL
• Conductor Size: 250 kcmil
• Cover Material: Stamped Steel
• Number of Conductors: 3
• Size: 3 in
• TC Connection: 3 FNPT IN
• Wire Size: 250 kcmil
• Brand: Topaz Lighting and Electric
• 12-Digit UPC: 751338211117
• GTiN: 00751338211117
• Product UPC: 75133821111
• Used With: For Rigid Conduit
